ESIEN05-04 Disassembly and Maintenance
Part 5 – Disassembly and Maintenance 5–133
3
5
1
5

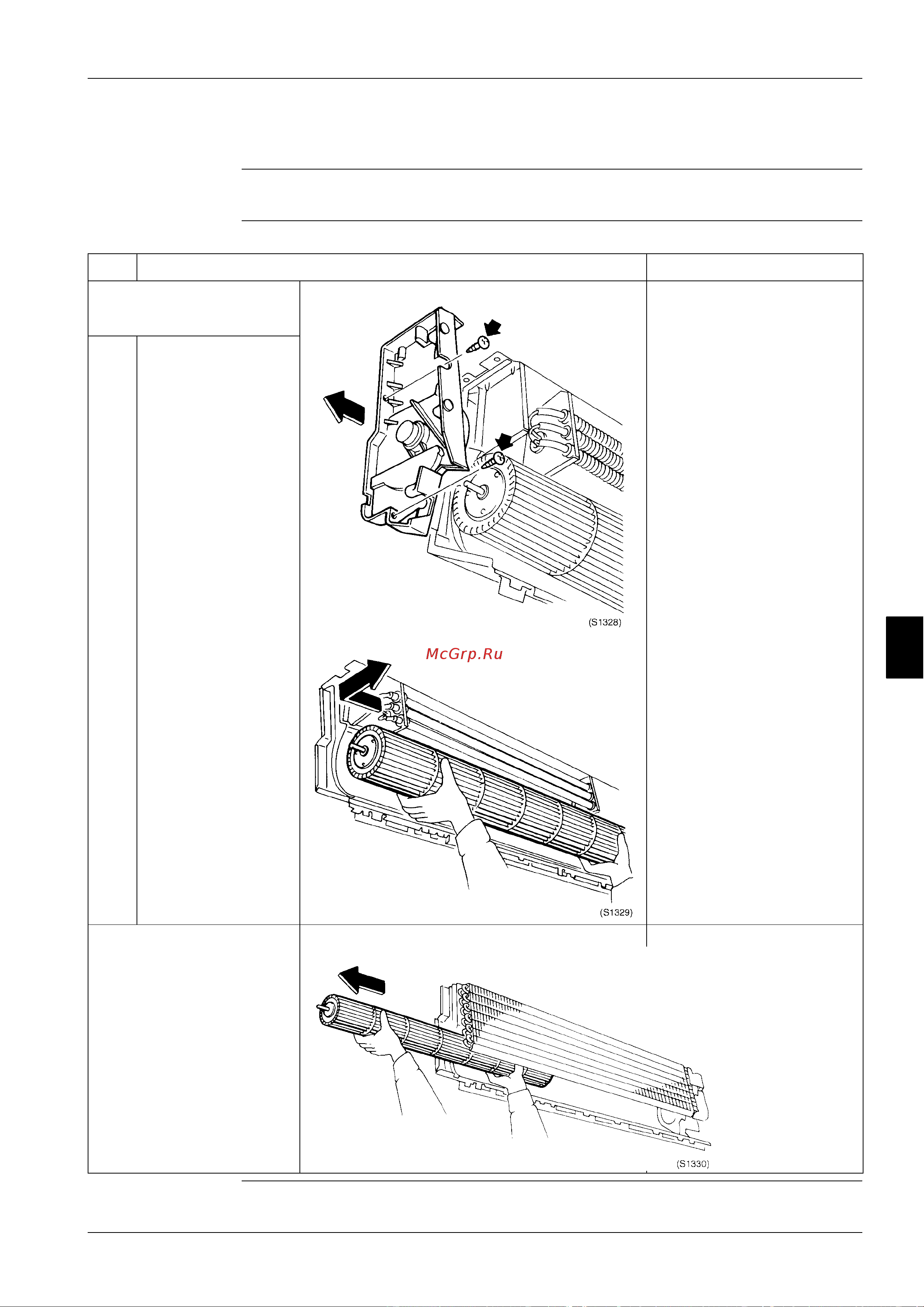

1.16.9 Removal of Fan Rotor
Warning Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work.
Procedure:
Step Procedure Points
Q Remove the heat exchanger
according to "Removal of
Heat Exchanger".
You can also remove the auxiliary
electric heater without removing
the heat exchanger.
1 Remove the 2 screws of
the left side panel.
2 Remove the fan rotor by
sliding to the left and
pulling out toward
yourself.
Reference:
If you have enough space to pull
the fan rotor out from the left side,
you can remove it without
dismounting the heat exchanger.
