ESIEN05-04 Disassembly and Maintenance
Part 5 – Disassembly and Maintenance 5–107
3
5
1
5

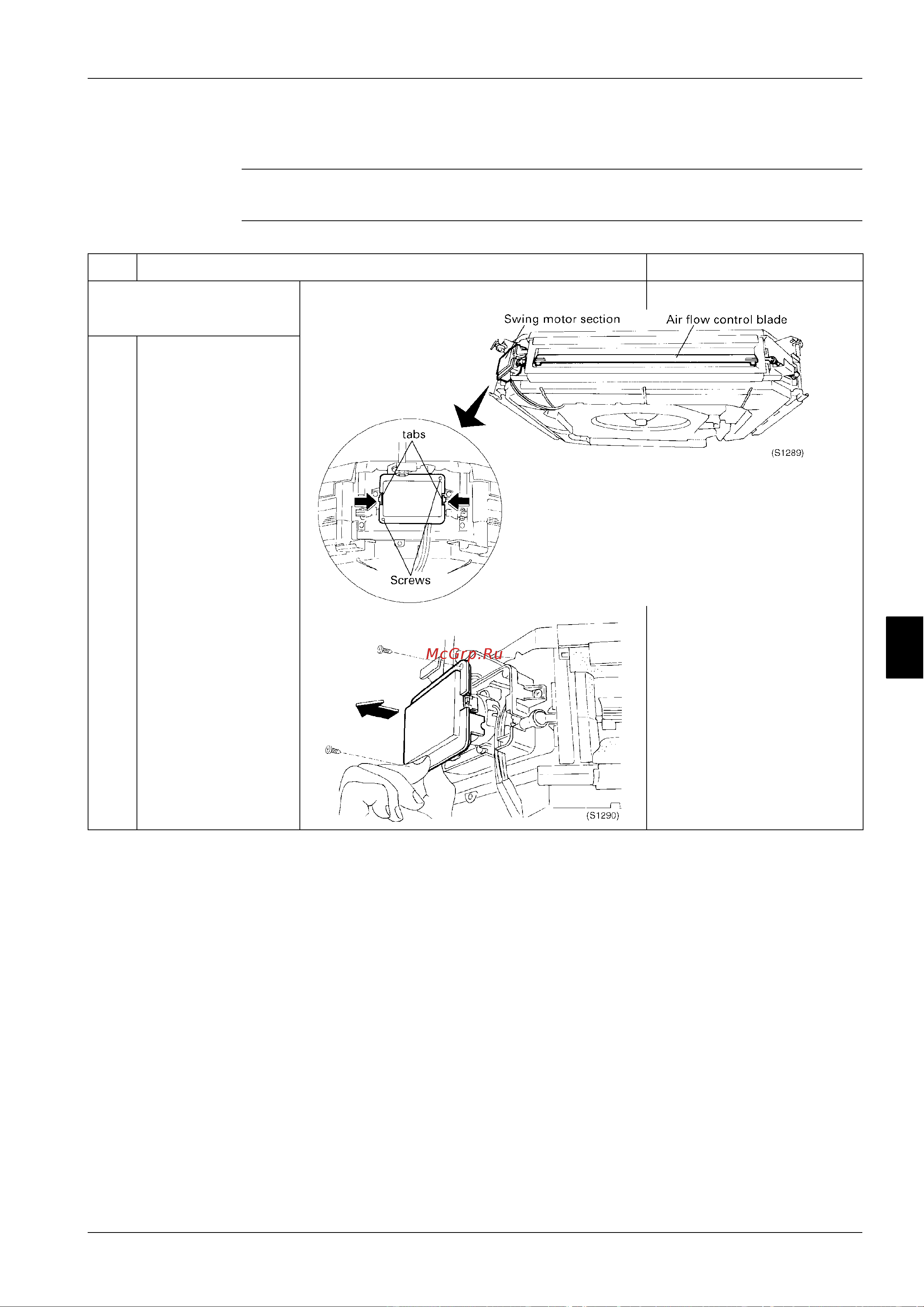

1.14.7 Removal of Swing Motor
Warning Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work.
Procedure:
Step Procedure Points
Q Remove suction grille
according to "Removal of
Suction Grille"
1 Swing motor is located at
the diagonal position of
piping.
2 Remove two mounting
screws for swing motor
cover.
3 Remove swing motor
cover by holding two tabs
on the cover.
