Disassembly and Maintenance ESIEN05-04
5–74 Part 5 – Disassembly and Maintenance
3
1
55

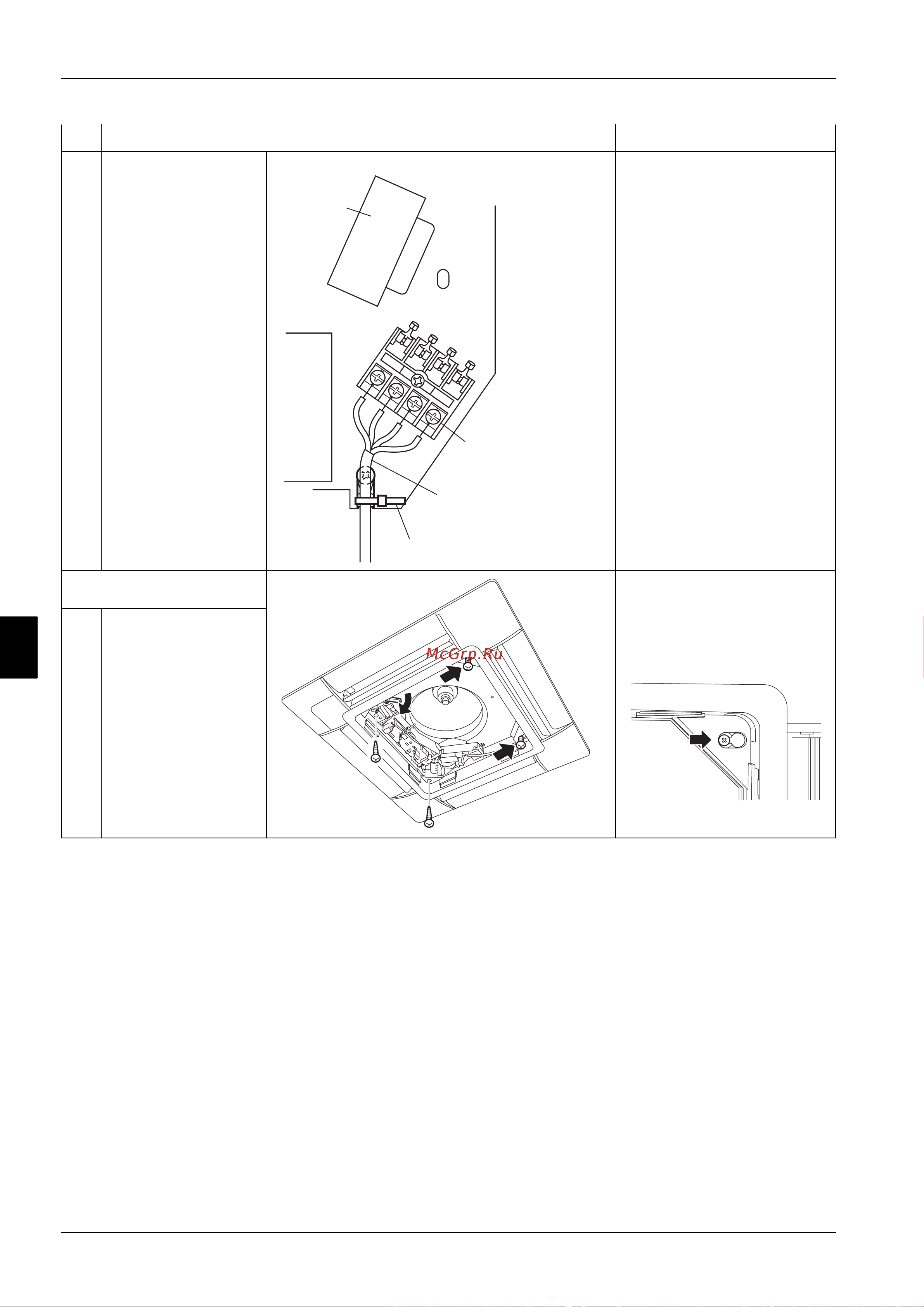

3 Re-connect the outdoor
unit connection wire, the
earth wire and wire of
remote control as they
were, and fix them
securely with tie wrap.
(Only when install the
switch box)
Q Be sure to fix the lead wire to
be connected to the connector
X10A for low-tension cable of
transformer to the switch box
with tie wrap
j.
(The tie wrap is used for
preventing the wire from
contact with a hot part on the
PC board.)
3 Installing the decoration
panel
1 Put the two holes on the
decoration panel to the
panel mounting screws
and slide the panel, turn
the stoppers to prevent
the panel from falling
down, then install the
remainder two screws.
Q When installing the decoration
panel, be careful not to catch
the lead wire.
Step Procedure Points
Power
transformer
Tie wrap
Terminal of outdoor unit
connection wire
Outdoor unit connection
wire and earth wire
(S2691)
PC
board
(S2692)
(S2693)
