Disassembly and Maintenance ESIEN05-04
5–98 Part 5 – Disassembly and Maintenance
3
1
55

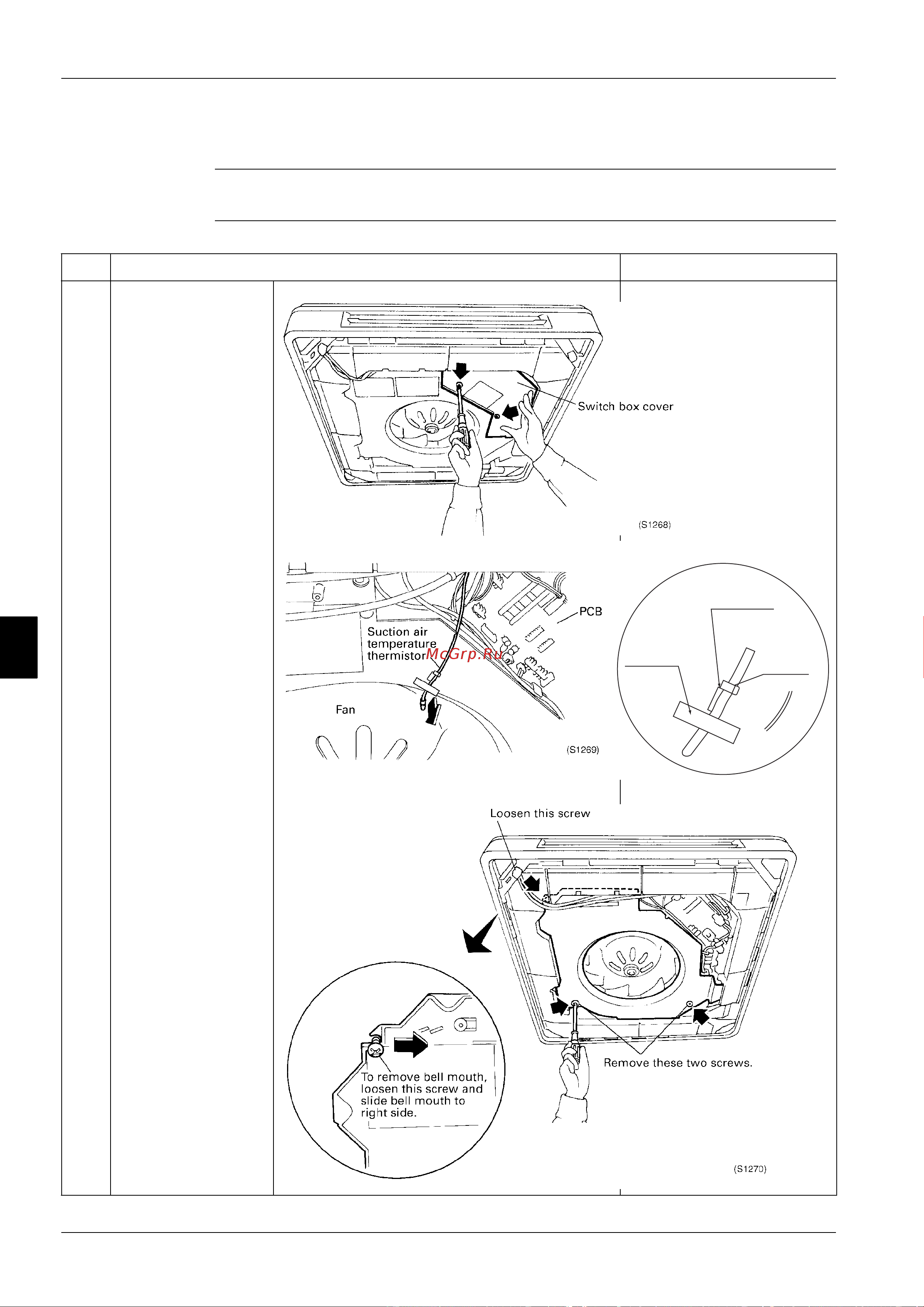

1.14.3 Removal of Fan
Warning Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work.
Procedure:
Step Procedure Points
1 Remove two mounting
screws to dismount
switch box cover.
2 Remove suction air
temperature thermistor
attached to bell mouth.
3 Bell mouth is mounted
with tree screws.
Loosen a screw located
at diagonal position to
the pipings and remove
other two screws.
Edge of rib
Stick filament
tape
Edge of
clamp
(S1271)
