Daikin FAQ100BVV1B [291/381] Removal of swing motor
![Daikin FCQ71B7V3B [291/381] Removal of swing motor](/views2/1697514/page291/bg123.png)
ESIEN05-04 Disassembly and Maintenance
Part 5 – Disassembly and Maintenance 5–51
3
5
1
5

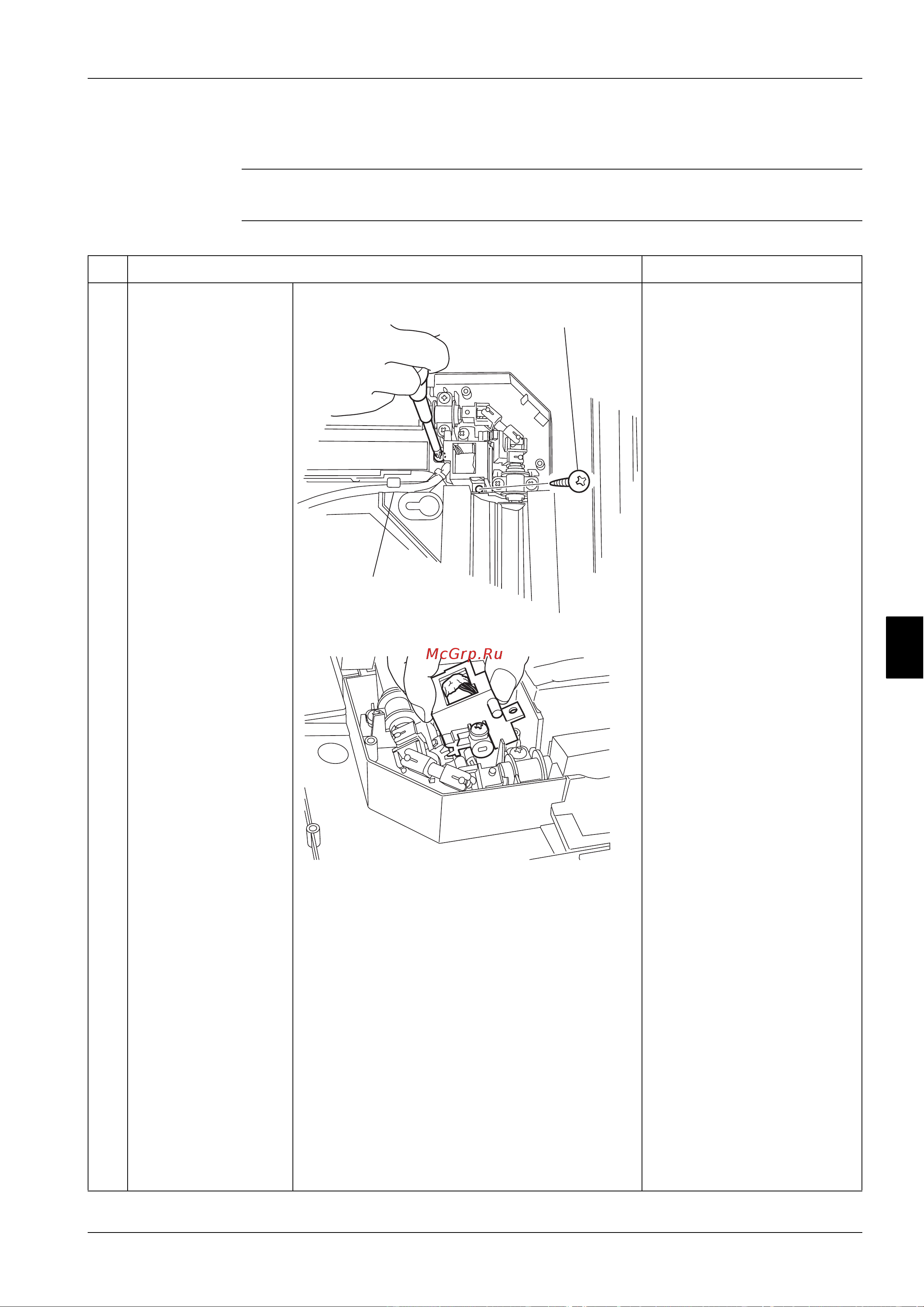

1.12.5 Removal of Swing Motor
Warning Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work.
Procedure:
Step Procedure Points
1 Removing the decoration
panel
Q Refer to the "Removal
of Decoration Panel"
2 Pull out the swing motor
harness from the wiring
groove.
3 Remove two mounting
screws for swing motor
mounting plate to remove
the plate.
4 Turn the horizontal vane
to downward manually,
and turn up the panel
side gear to disengage
the motor side gear.
5
Remove the swing
motor.
Fixing screw
Wiring groove
(S2647)
(S2648)
