Disassembly and Maintenance ESIEN05-04
5–76 Part 5 – Disassembly and Maintenance
3
1
55

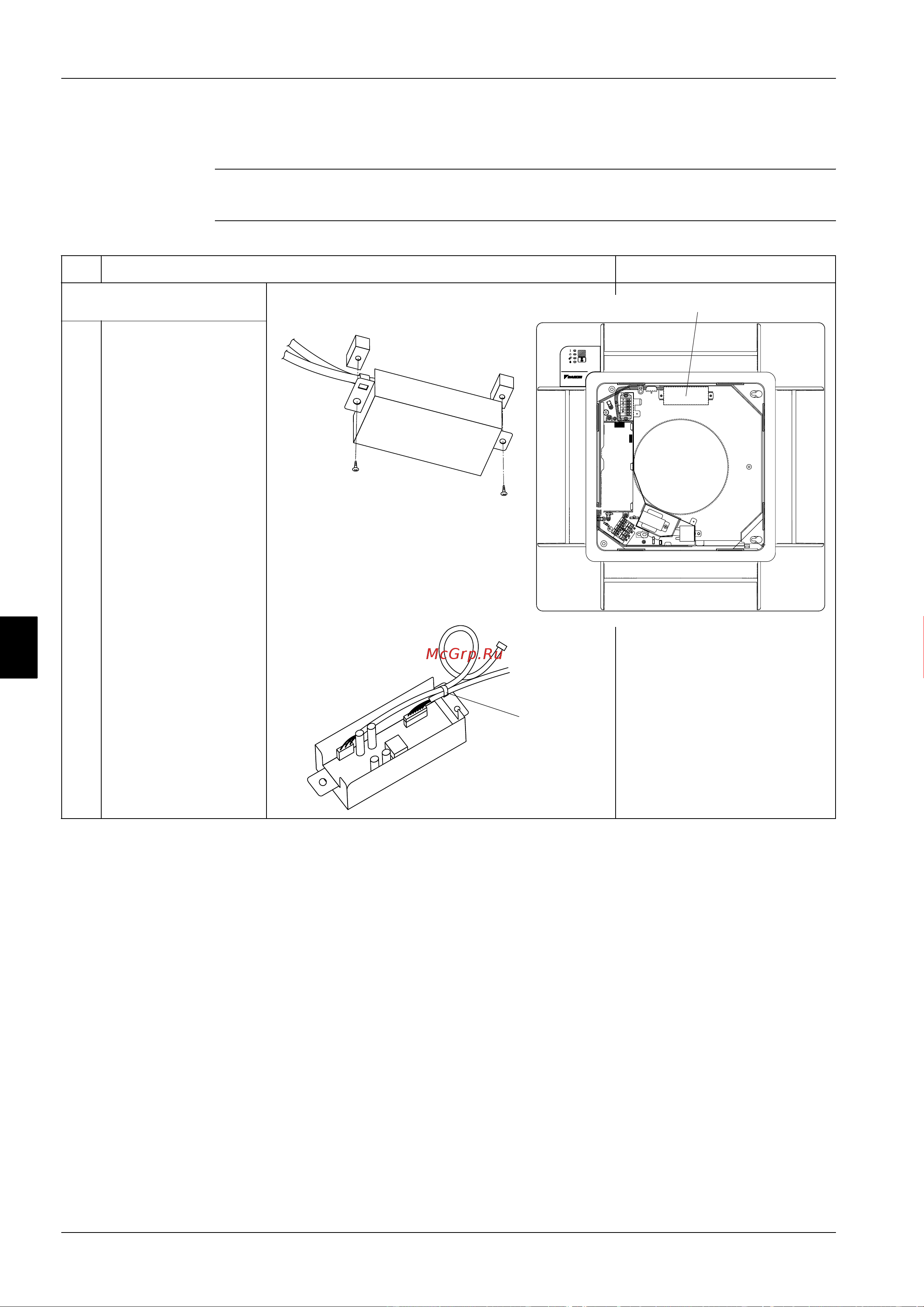

1.12.14 Replacement of Receiver Section of infrared remote control
Warning Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work.
Procedure:
Step Procedure Points
1 Removing the receiver
section
1 Remove two screws of
the transmission parts
box to remove the box.
2 Cut the tie wrap fixing
transmission parts box
and harness and
disconnect the connector
X1A.
3 Disconnect the lead wire
of the transmission parts
box from the connector
X24A on the indoor unit
PC board.
X24
Transmission parts box
(S2695)
(S2694)
Tie wrap
X2A
X1A
(S2696)
