Disassembly and Maintenance ESIEN05-04
5–100 Part 5 – Disassembly and Maintenance
3
1
55

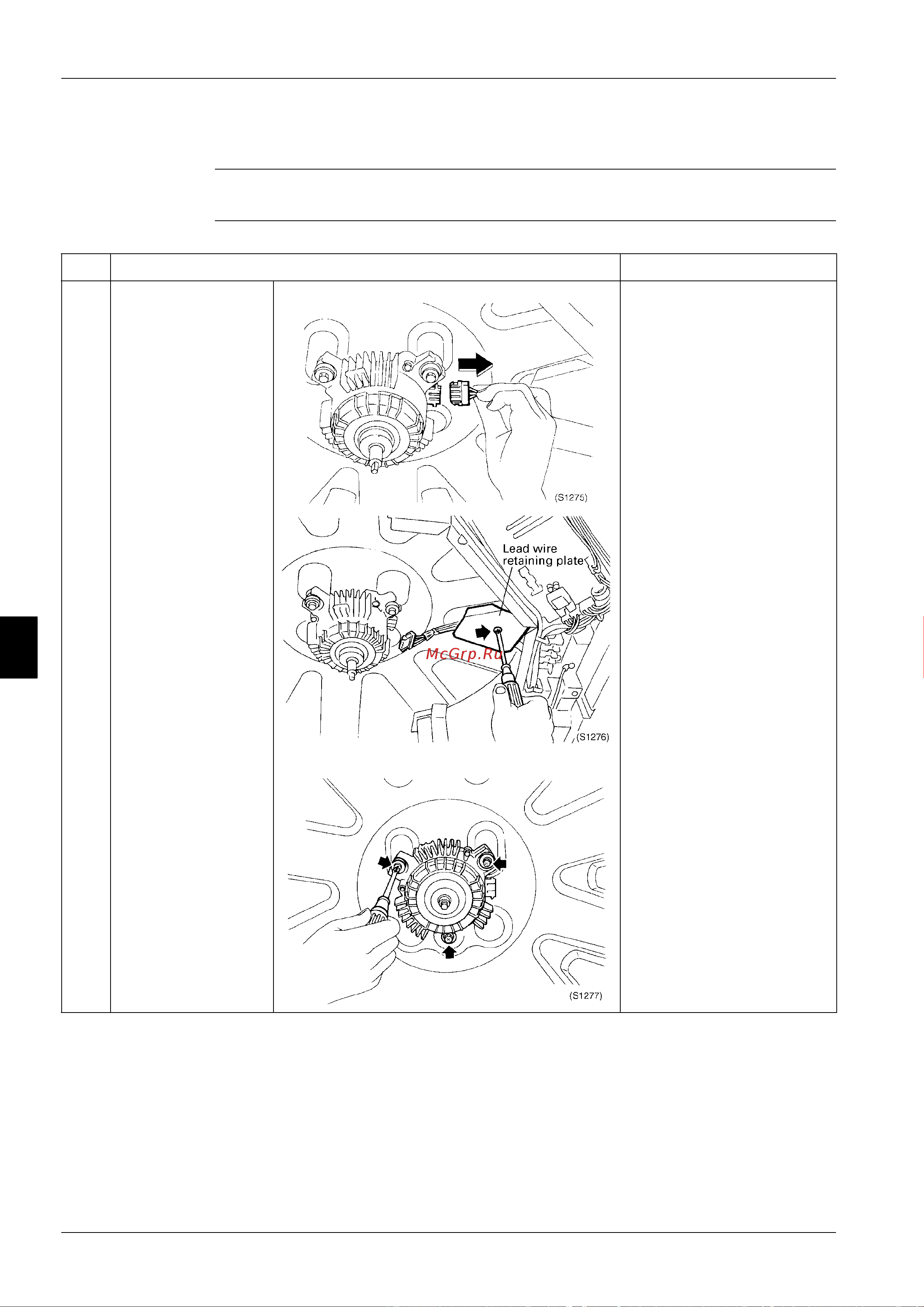

1.14.4 Removal of Fan Motor
Warning Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work.
Procedure:
Step Procedure Points
1 Removing fan motor
a. Disconnect connector.
b. Remove lead wire
retaining plate.
Caution:
Fan motor can be removed
without removing the lead wire
retaining plate.
However, when washing the heat
exchanger, this plate should be
removed and protect the lead
wires.
2 Remove screws for
mounting fan motor.
Q FUQ71BUV1B:
Three screws
Q FUQ100/125BUV1B:
Four screws
