Wiring Diagrams ESIEN05-04
1–80 Part 1 – System Outline
3
11
4
5
4.11 FHQ71, 100, 125B

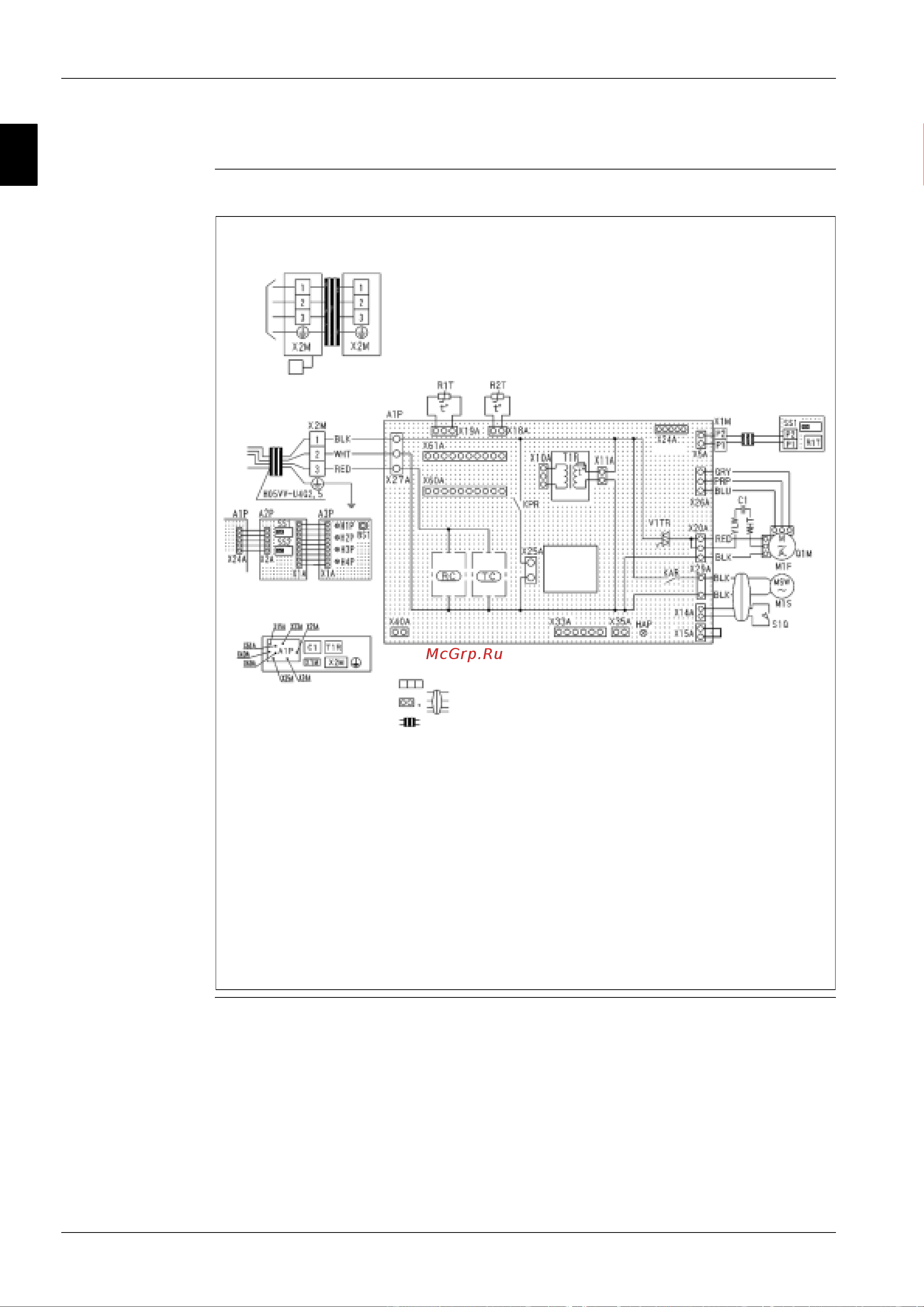

Wiring diagram The illustration below shows the wiring diagram of the unit.
Note 4
Control
box
Receiver / Display unit
In case of simultaneous operation system
Indoor unit
(Master)
Indoor unit
(Slave)
to Outdoor
Unit
Wired remote control
Note 6
remote control
to Outdoor Unit
Note 4
Notes
1.
2.
3. In case using central remote control, connect it to the unit in accordance with the
attached installation manual.
4. X24A is connected when the infrared remote control kit is being used.
5. remote control model varies according to the combination system, confirm
engineering materials and catalogs, etc. before connecting.
6. In case installing the drain pump (M1P), remove the jumper connector of X15A
and execute the additional wiring for float switch and drain pump.
7. Symbols show as follows:
RED : Red
BLK : Black
WHT : White
YLW : Yellow
PRP : Purple
GRY : Gray
BLU : Blue
: Terminal
: Connector
: Field wiring
Note 6
