Disassembly and Maintenance ESIEN05-04
5–130 Part 5 – Disassembly and Maintenance
3
1
55

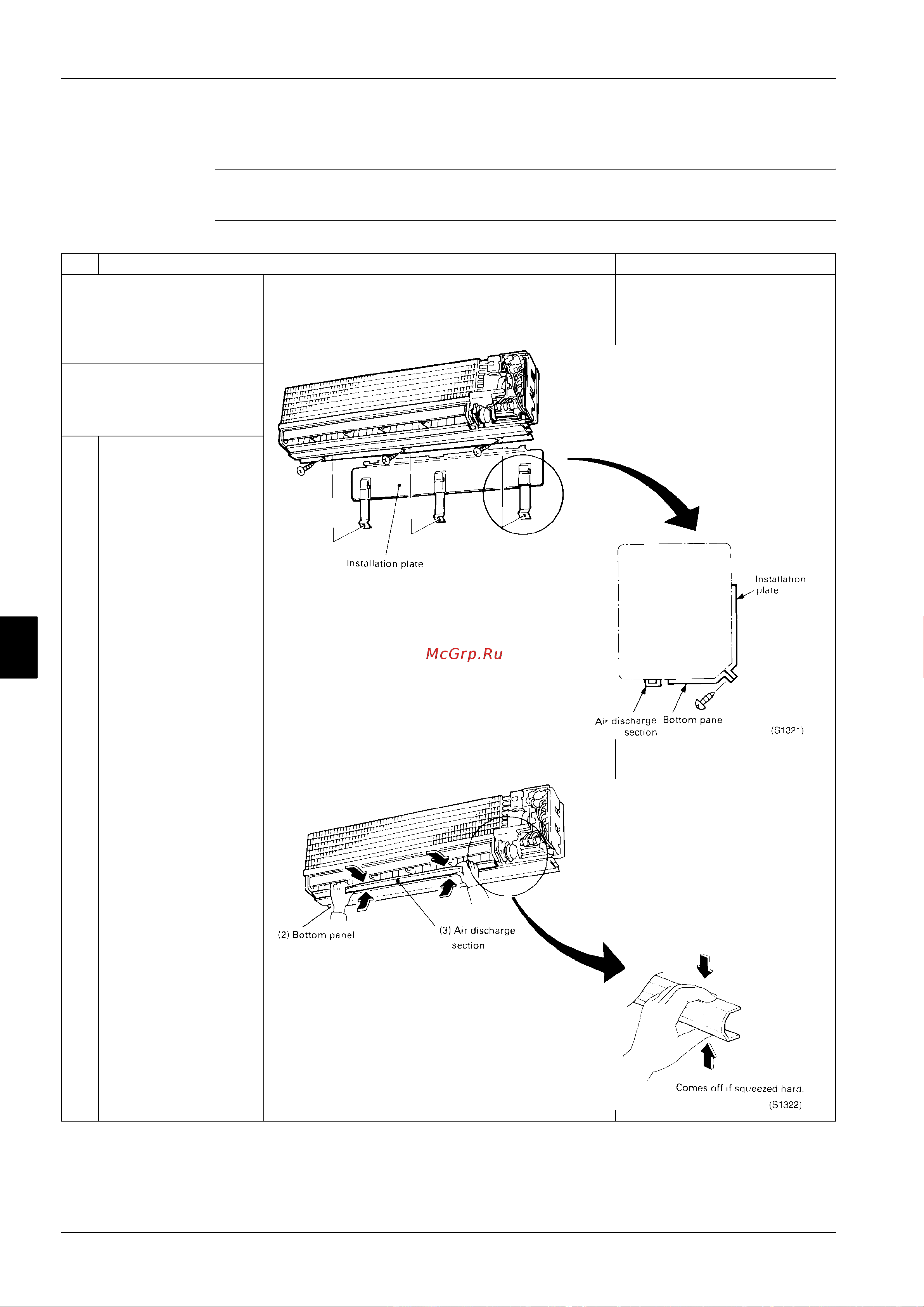

1.16.7 Removal of Drain Pan
Warning Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work.
Procedure:
Step
Procedure Points
Q If removing the drain pan:
Carry out pump down,
disconnect the transmission
piping and wiring, and
remove the main unit.
The bottom panel is fastened to
the unit installation plate by 3
screws.
Q Remove side panels,
operation display cover and
front cover according to
their removal procedures.
1 Remove the bottom
panel.
2 Remove the air discharge
section.
