Disassembly and Maintenance ESIEN05-04
5–56 Part 5 – Disassembly and Maintenance
3
1
55
4

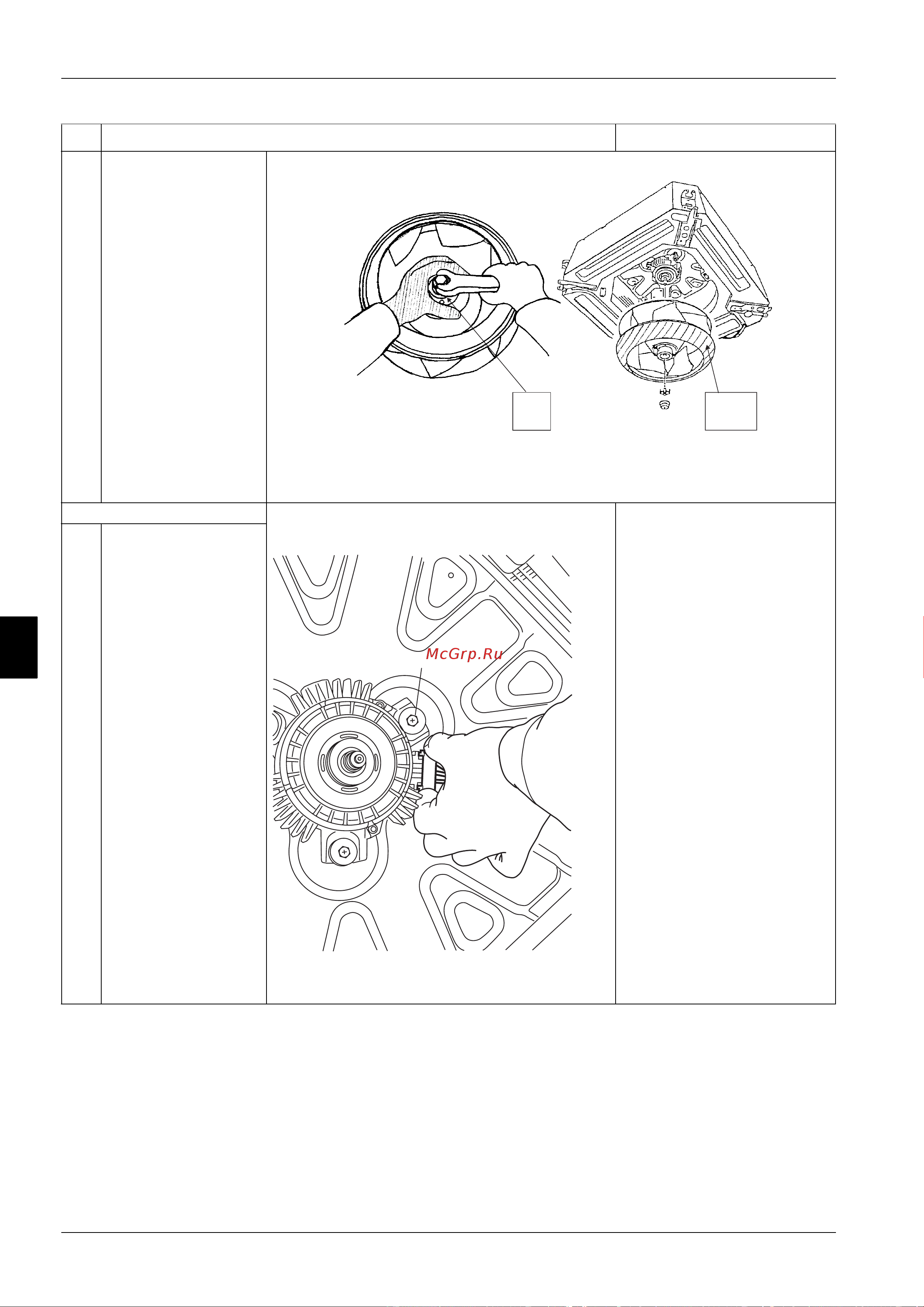

Make sure to hold the
hub as shown in Fig.1
when tightening or
loosening the fan fixing
nut with a spanner.To
avoid deformation and
vibration of the fan, do
not apply excessive
torque to the shroud
(the slash part of Fig.2).
Note: There is no
problem to hold the
shroud when carrying
or lifting the fan.
2 Removing the fan motor
1 Disconnect the harness
connector for motor from
the motor.
2 Remove the three
washer faced bolts.
Step Procedure Points
Hub Shroud
Fig. 1 Fan fixing method Fig. 2 Do not apply excessive torque
to the area shown in slash
(
S2764
)
Washer faced bolt
(S2656)
