Disassembly and Maintenance ESIEN05-04
5–72 Part 5 – Disassembly and Maintenance
3
1
55

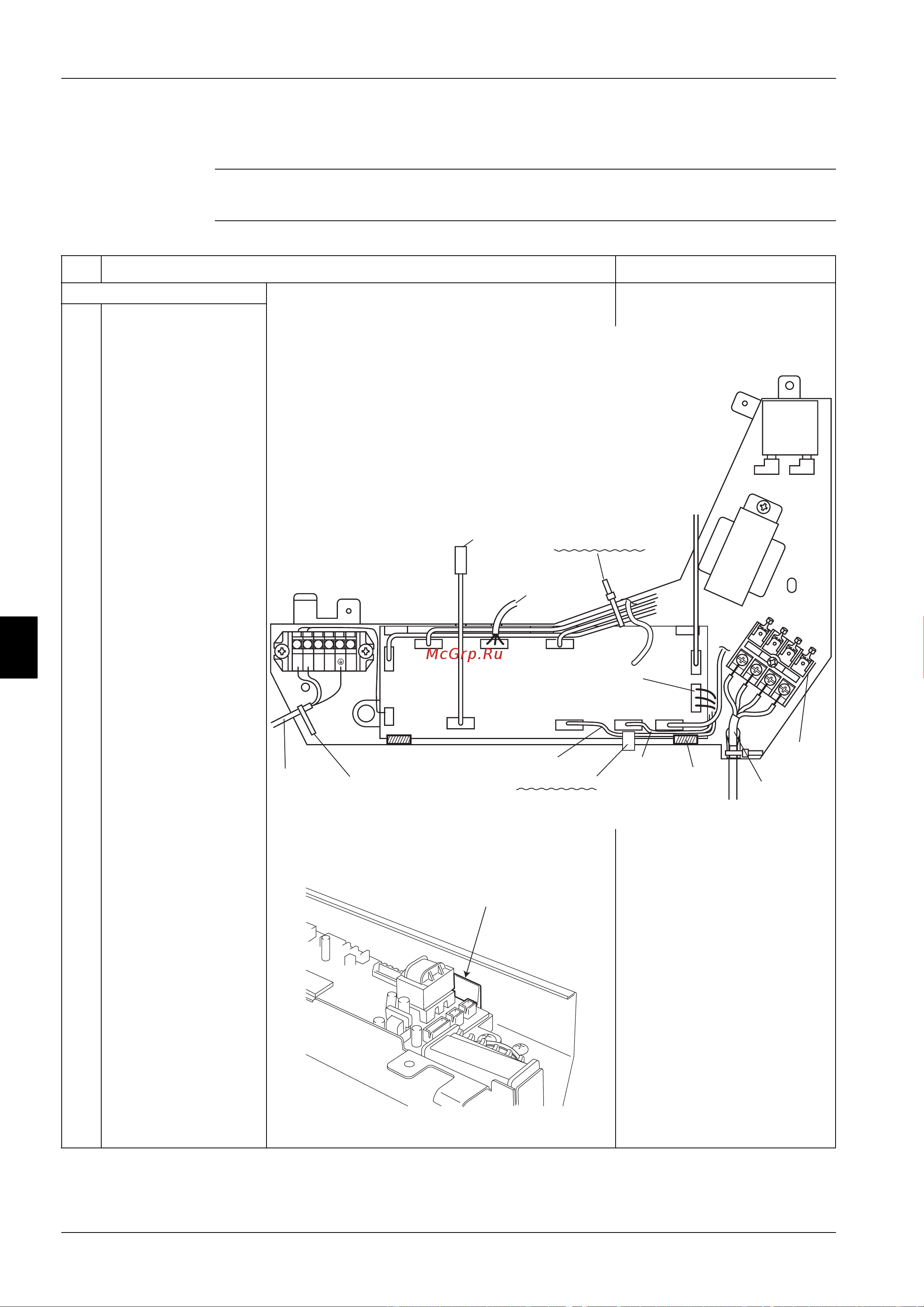

1.12.13 Replacement of PC Board
Warning Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work.
Procedure:
Step Procedure Points
1 Removing the PC Board
1 Remove the switch box
cover.
(M4 screw×2)
2 Disconnect the
connectors shown in the
right connected to the PC
board.
Cut the tie wrap fixing the
low tension cable (blue)
to the switch box.
3 Press two claws
supporting the PC board
to disengage one side of
the PCB, then tilt the
board and disconnect the
lead wire for swing flap.
(X36A)
Air temperature thermistor : X19A
High tension cable of transformer : X11A
Low tension cable of transformer : X10A
Outdoor unit connection wire : X27A
Fan motor lead wire : X20A
Lead wire of remote controller : X5A
Lead wire of drain pump : X25A
Lead wire of liquid pipe thermistor : X18A
Lead wire of swing motor : X36A (Refer to the item 3 below.)
Lead wire of thermistor for heating : X17A
Lead wire of float switch : X15A
Lead wire of
remote controller
Tie wrap
Claw
Claw
Low-voltage cable
of transformer
Connector for
fan motor
High-voltage
cable of
transformer
Cut this tie wrap
Cut this tie wrap
Air temperature thermistor
To the swing
flap motor
Outdoor unit
connection wire
and earth wire
Outdoor unit
connection
wire terminal
P1 P2 F1 F2
X17A X36A X18A
X25A
X20A
X27AX11AX10A
X19A
X15A
X5A
(S2687)
Claw
(S2688)
