General Outline ESIEN05-04
1–4 Part 1 – System Outline
3
11
4
5
1.2 FCQ35, 50, 60, 71B
Outlook and
dimensions

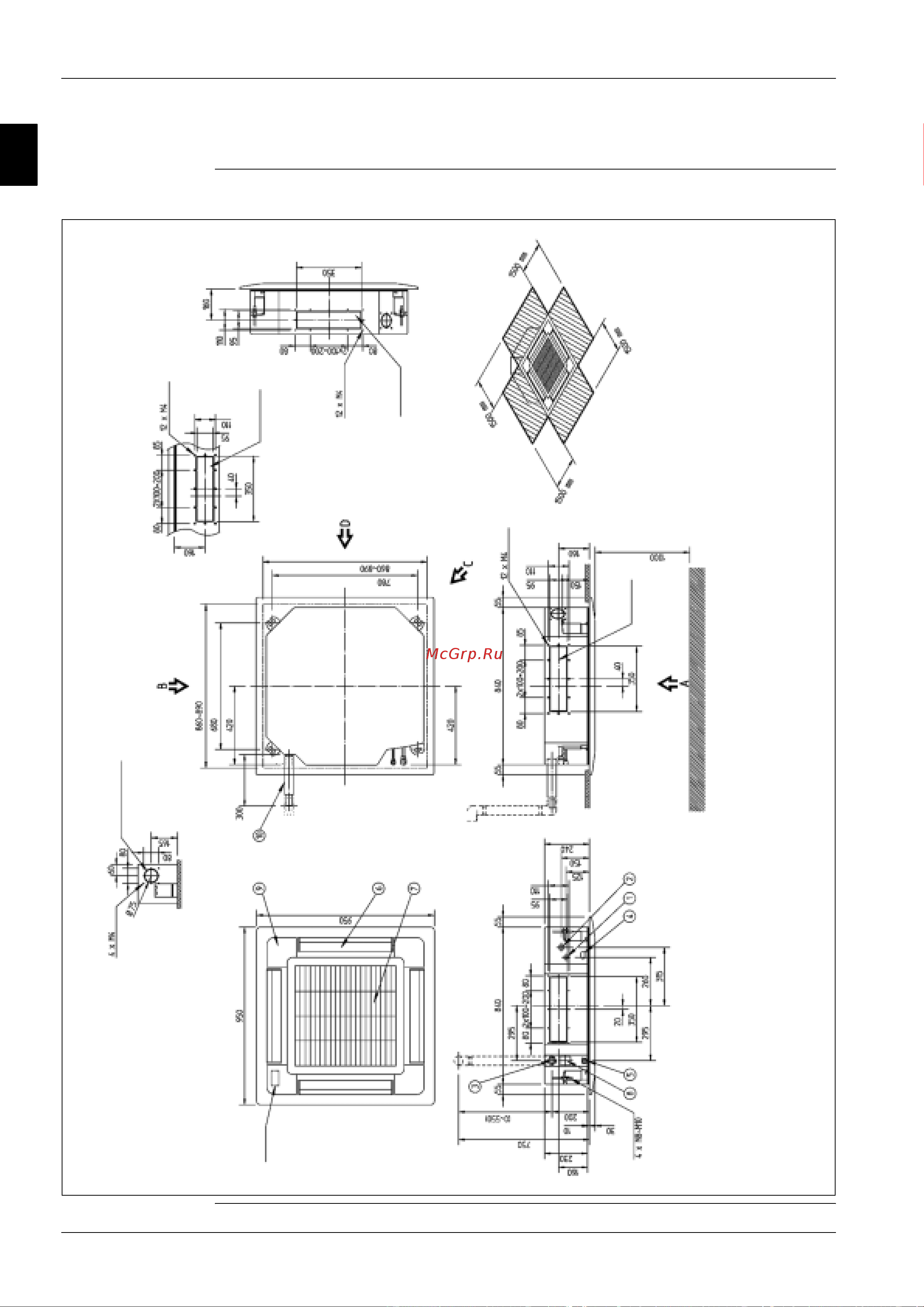

The illustration below shows the outlook and the dimensions of the unit (mm).
REQUIRED INSTALLATION SPACE
WHEN THE DISCHARGE GRILL IS CLOSED,
THE REQUIRED SPACE IS 200 mm OR MORE.
o
r
m
o
r
e
o
r
m
o
r
e
o
r
m
o
r
e
o
r
m
o
r
e
Branch duct
connection
Prepared hole
Prepared hole
Branch duct
connection
(Ceiling opening)
(Suspension position)
(Ceiling opening)
(Suspension position)
or less
Prepared hole
Branch duct
connection
Installation space
Hanging bolt
Adjustable
VIEW A
VIEW C
Prepared hole
For fresh air intake kit
connection (direct
installation type)
see note 3
or more
VIEW B
VIEW D
NOTES:
1. Location of the nameplates:
- Unit body: on the bell mouth at the inside of the suction grill.
- Decoration panel: on the panel frame at the inside of the suction grill.
2. When installing an optional accessory, refer to the installation drawings.
- For the fresh air intake kit ..... an inspection port is necessary
- For the high efficiency filter ..... an inspection port is necessary
- For the branch duct chamber .... an inspection port is necessary
3. In case of using a infrared remote control, this position will be a signal receiver.
Refer to the drawing of the infrared remote control for more details.
4. When the conditions exceed 30°C and RH 80% in the ceiling or fresh air is
inducted into the ceiling, an additional insulation is required (polyethylene foam,
thickness 10mm or more).
