Disassembly and Maintenance ESIEN05-04
5–114 Part 5 – Disassembly and Maintenance
3
1
55
1.15.2 Removal of Front Grille
Warning Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work.
Procedure:
Step Procedure Points
Q Removing the front panel in
accordance with "Removal
of Front Panel".

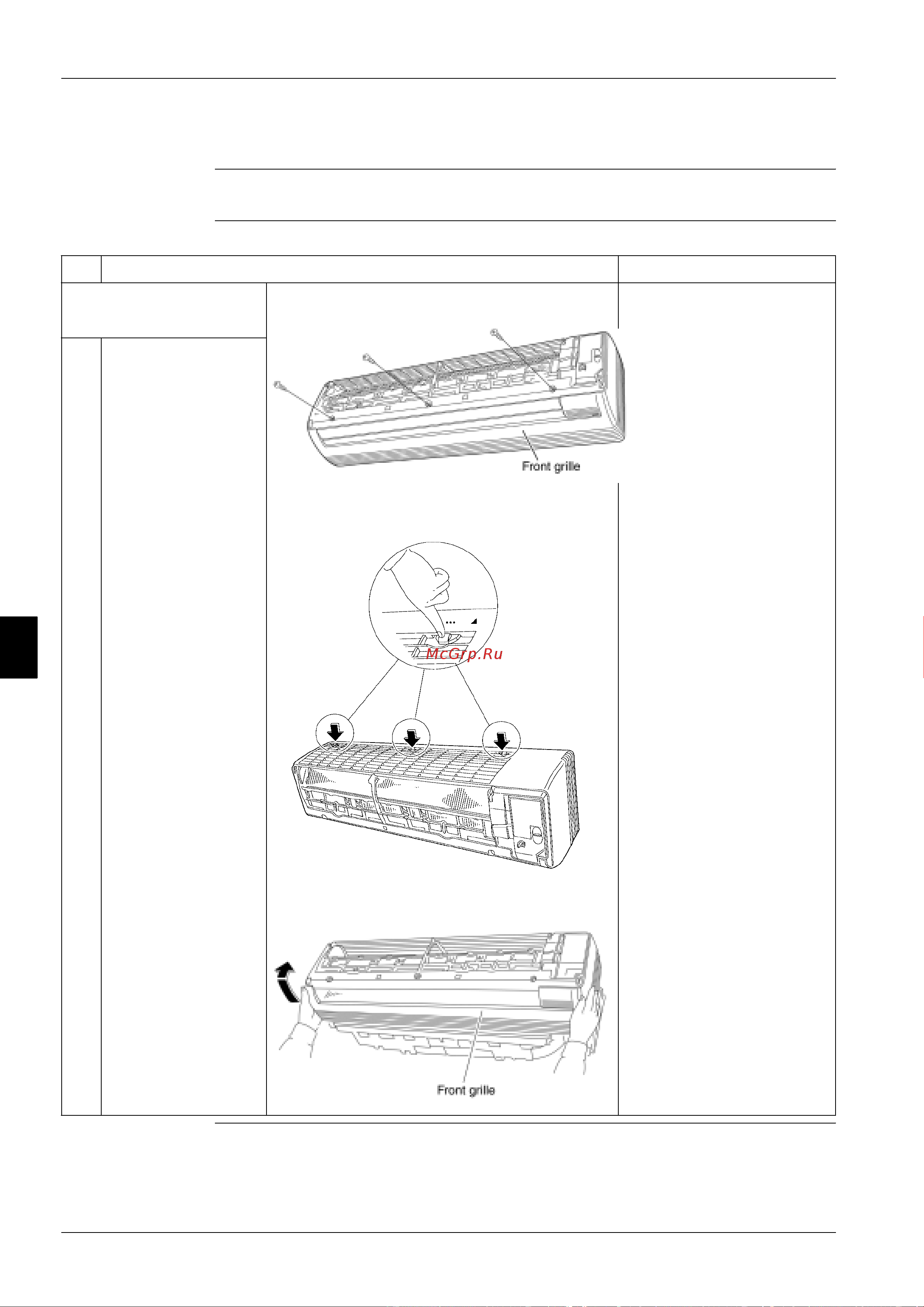

1 Remove three pieces of
front grille fixing screws.
2 Remove the front grille by
pulling forward while
pushing three hooks
located at upper part of
the grille one by one.
Q If hard to remove, try to push
the hooks by a screwdriver or
the like to remove.
3 The front grille can be
removed by pulling
forward and lift the
bottom part.
Q Make sure that the three
hooks are set on the original
position when reinstalling the
front grille.
