Disassembly and Maintenance ESIEN05-04
5–132 Part 5 – Disassembly and Maintenance
3
1
55
1.16.8 Removal of Heat Exchanger
Warning Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work.
Procedure:
Step Procedure Points
Q Before dismounting a heat
exchanger, make sure to
proceed pump down
refrigerant to outdoor unit and
disconnect the connection
pipe and wiring, then remove
the indoor unit.

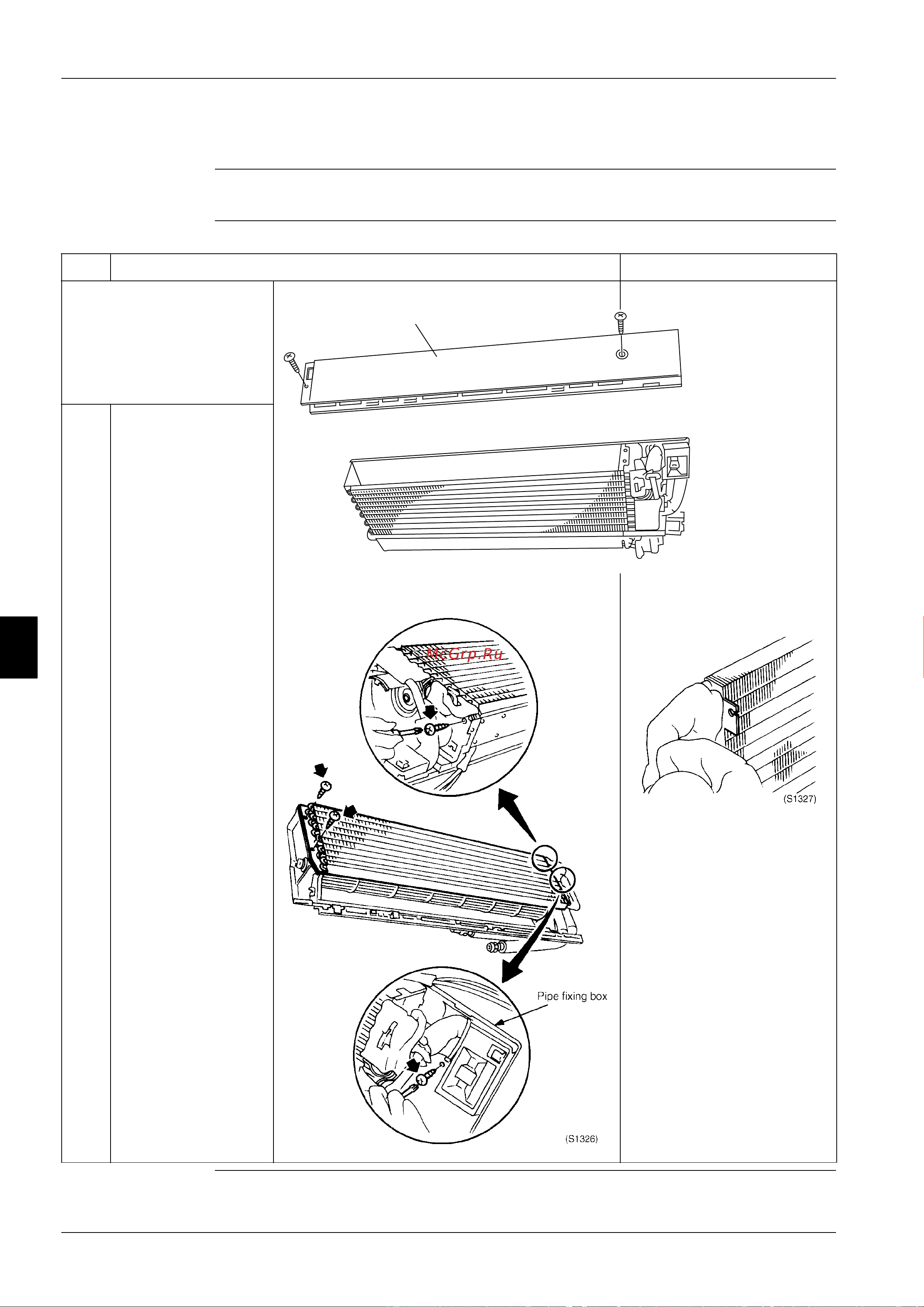

1 Dismount top plate
2 Remove the 3 setting
screws for heat
exchanger and one
screw for pipe fixing box.
There is a hock right hand side
behind the heat exchanger.
Top plate
(S1325)
