General Outline ESIEN05-04
1–12 Part 1 – System Outline
3
11
4
5
1.6 FFQ25, 35, 50, 60B
Outlook and
dimensions

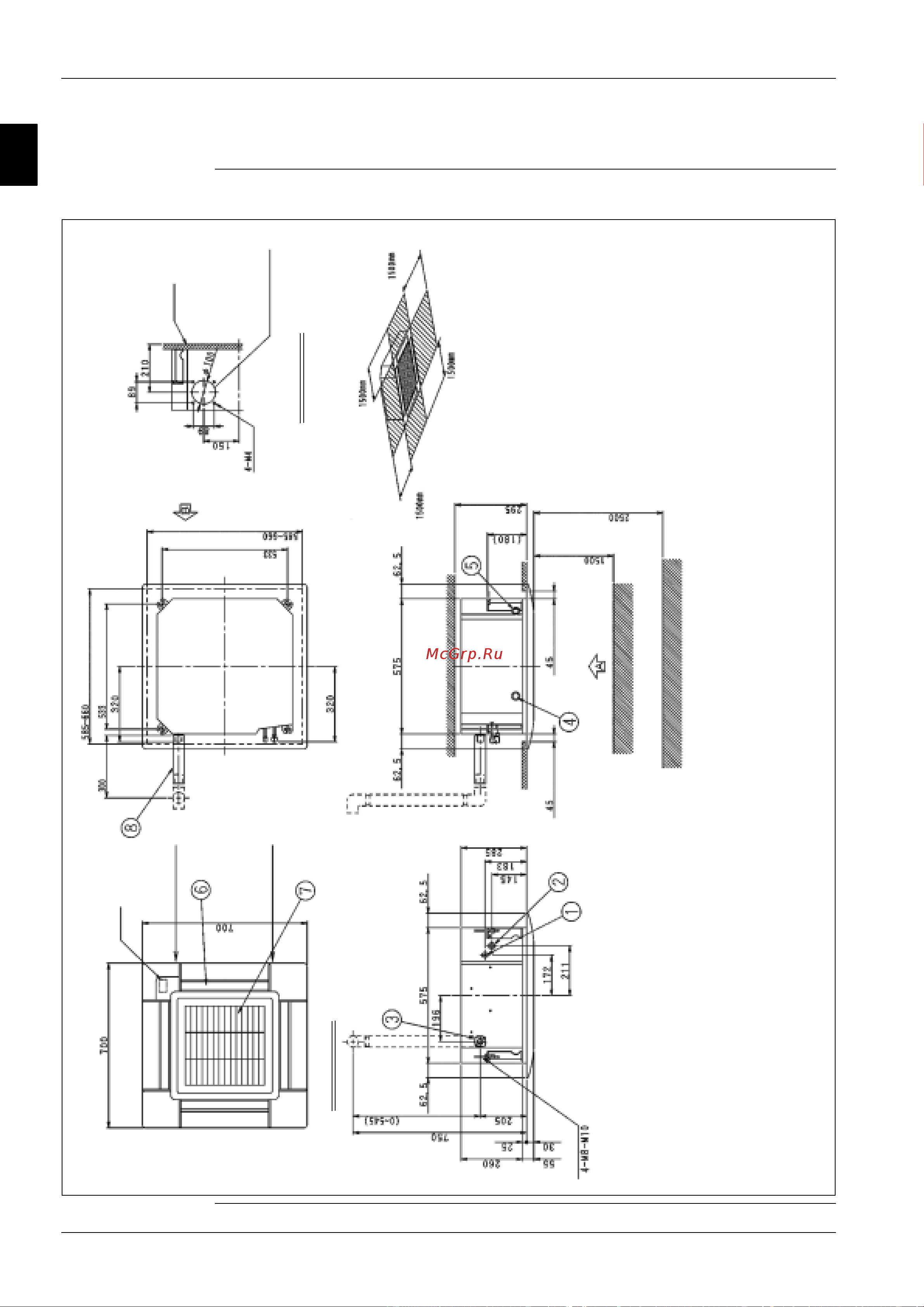

The illustration below shows the outlook and the dimensions of the unit (mm).
Suspension bolt
(Suspension position)
NOTES:
1. Location of unit’s name plate
for indoor unit : on the bell mouth inside suction grill
for decoration panel : on the inner frame inside suction grill
2. In case of using infrared remote control, this position will be a signal receiver.
Refer to the drawing of infrared remote control for detail.
3. When the temperature and humidity in the ceiling exceed 30°C and RH 80% or
the fresh air is inducted into the ceiling or the unit continues 24 hour operation,
an additional insulation (thickness 10mm or more of glasswool or polyethylene
form) is required.
4. Though the installation is acceptable up to maximum of 910mm square ceiling
opening, keep the clearance of 35mm or less between the main unit and the
ceiling opening so that the panel overlap allowance can be ensured.
A ARROW VIEW
B ARROW VIEW
Adjustable
or less
(Ceiling opening space)
(Note 2)
Drain connection side
Pipe connection side
Outdoor air intake
(Direct connection)
Ceiling
hole
(Suspension position)
(Ceiling opening space)
or less
or less
(Note 4).
(Required space)
or more
From the floor side
or more
FOR HEIGHT INSTALLATION
*WHEN THE DISCHARGE GRILL IS CLOSE, THE
REQUIRED SPACE IS 200 mm OR MORE.
or more*
or more*
or more*
or more*
•
REQUIRED SPACE
or more
