Daikin FAQ100BVV1B [226/381] How to change the field settings with the infrared remote control

Field Settings ESIEN05-04

4–20 Part 4 – Commissioning and Test Run

3.3 How to Change the Field Settings with the infrared remote control

Optional

accessories

If optional accessories are mounted on the indoor unit, the indoor unit setting may have to be changed.

Refer to OH98-2 or the installation manual (optional handbook) for each optional accessory.

infrared remote

control

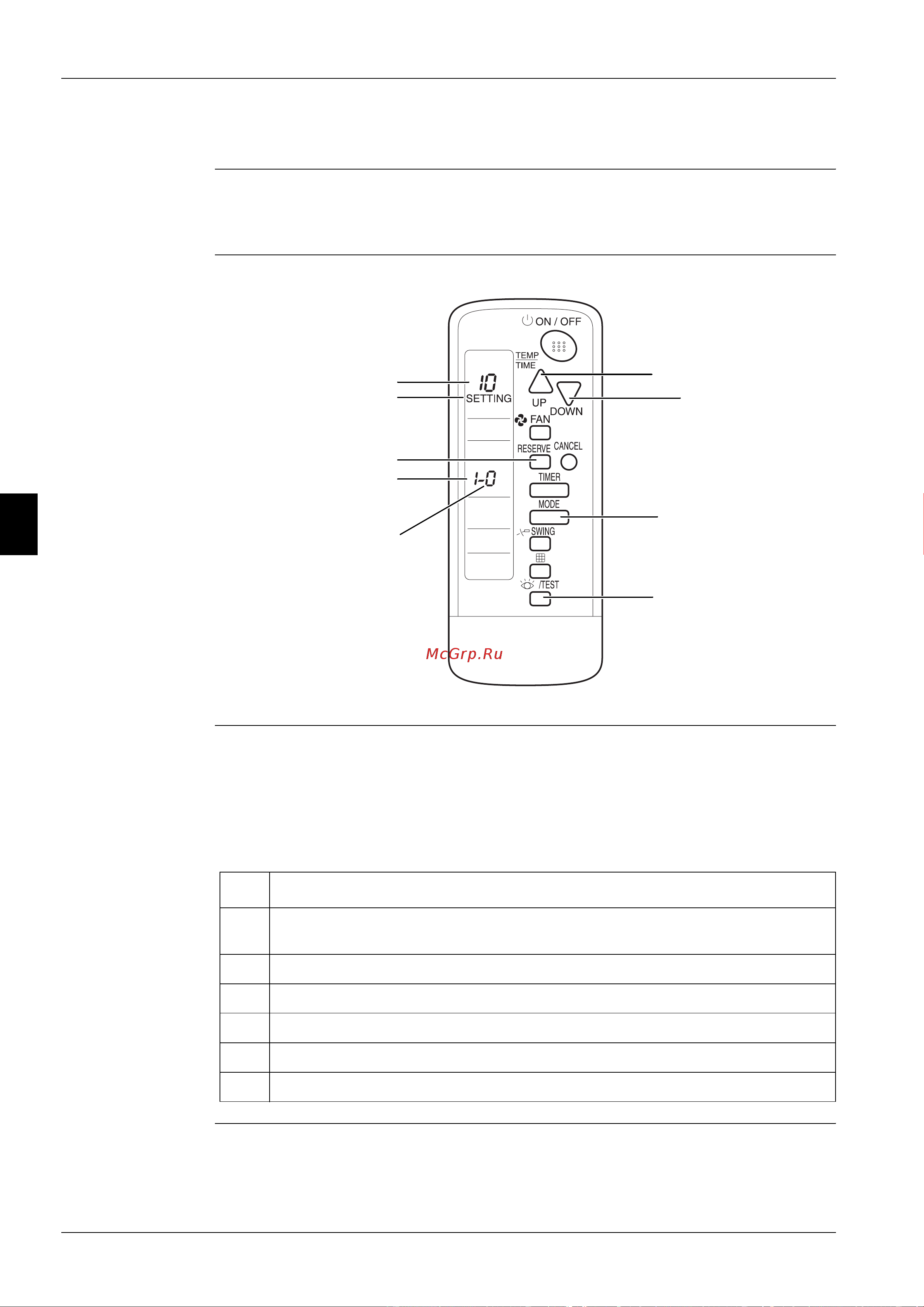

The illustration below shows the infrared remote control.

Setting To set the field settings, you have to change:

Q “Mode No.”

Q “First code No.”

Q “Second code No.”.

To change the field settings, proceed as follows:

RESERVE button

INSPECTION/TEST button

Mode No.

Field setting mode

UP button

DOWN button

First code No.

Second code No.

MODE button

Step Action

1 Hold down the INSPECTION/TEST button for at least 4 s during normal mode to enter

the “Field setting mode”.

2 Press the MODE button to select the desired “Mode No.”.

3 Press the UP button to select the “First code No.”.

4 Press the DOWN button to select the “Second code No.”

5 Press the RESERVE button to set the present settings.

6 Press the INSPECTION/TEST button to return to the “Normal mode”.
