General Outline ESIEN05-04
1–8 Part 1 – System Outline
3
11
4
5
1.4 FCQ71D
Outlook and
dimensions

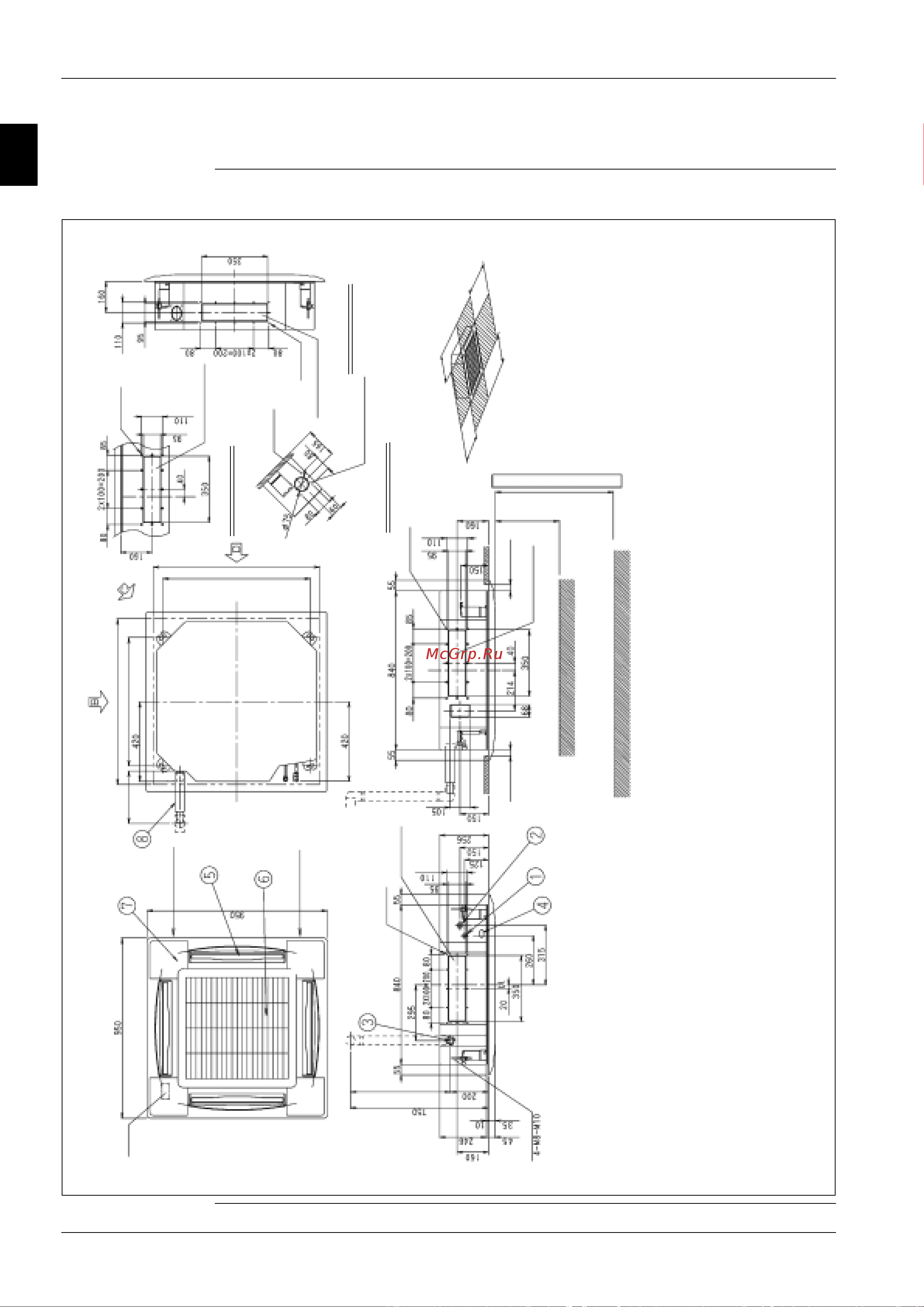

The illustration below shows the outlook and the dimensions of the unit (mm).
NOTES:
1. Location of unit’s name plate
for indoor unit : on the bell mouth inside suction grill
for decoration panel : on the inner frame inside suction grill
2. In case of using infrared remote control, this position will be a signal receiver.
Refer to the drawing of infrared remote control for detail.
3. When the temperature and humidity in the ceiling exceed 30°C and RH 80% or
the fresh air is inducted into the ceiling or the unit continues 24 hour operation,
an additional insulation (thickness 10mm or more of glasswool or polyethylene
form) is required.
4. Though the installation is acceptable up to maximum of 910mm square ceiling
opening, keep the clearance of 35mm or less between the main unit and the
ceiling opening so that the panel overlap allowance can be ensured.
Suspension bolt
Adjustable (0~550)
35 or less
35 or less
(Note 4)
1500 or more
(Required space)
From
the floor side 2500 or more
FOR HEIGHT INSTALLATION
860-910 (Ceiling opening space)(Note 4)
780 (Suspension position)
860~910 (Ceiling opening space) (Note 4)
680 (Suspension position)
300
or less
(Note 2)
Drain connection
side
Pipe connection
side
*WHEN THE DISCHARGE GRILL IS
CLOSED, THE REQUIRED SPACE IS
200mm OR MORE.
Branch duct
connection
12-M4 hole
B ARROW VIEW
12-M4 hole
Branch duct
connection
1500mm or more*
•
REQUIRED SPACE
Branch duct
connection
4-M4 hole
C ARROW VIEW
D ARROW VIEW
Outdoor air intake
(Direct connection)
12-M4 hole
Branch duct
connection
hole
1500mm
or more*
1500mm
or more*
1500mm or more*
