ESIEN05-04 PCB Layout
Part 1 – System Outline 1–109
3
1
4
5
6.3 FCQ71, 100, 125B

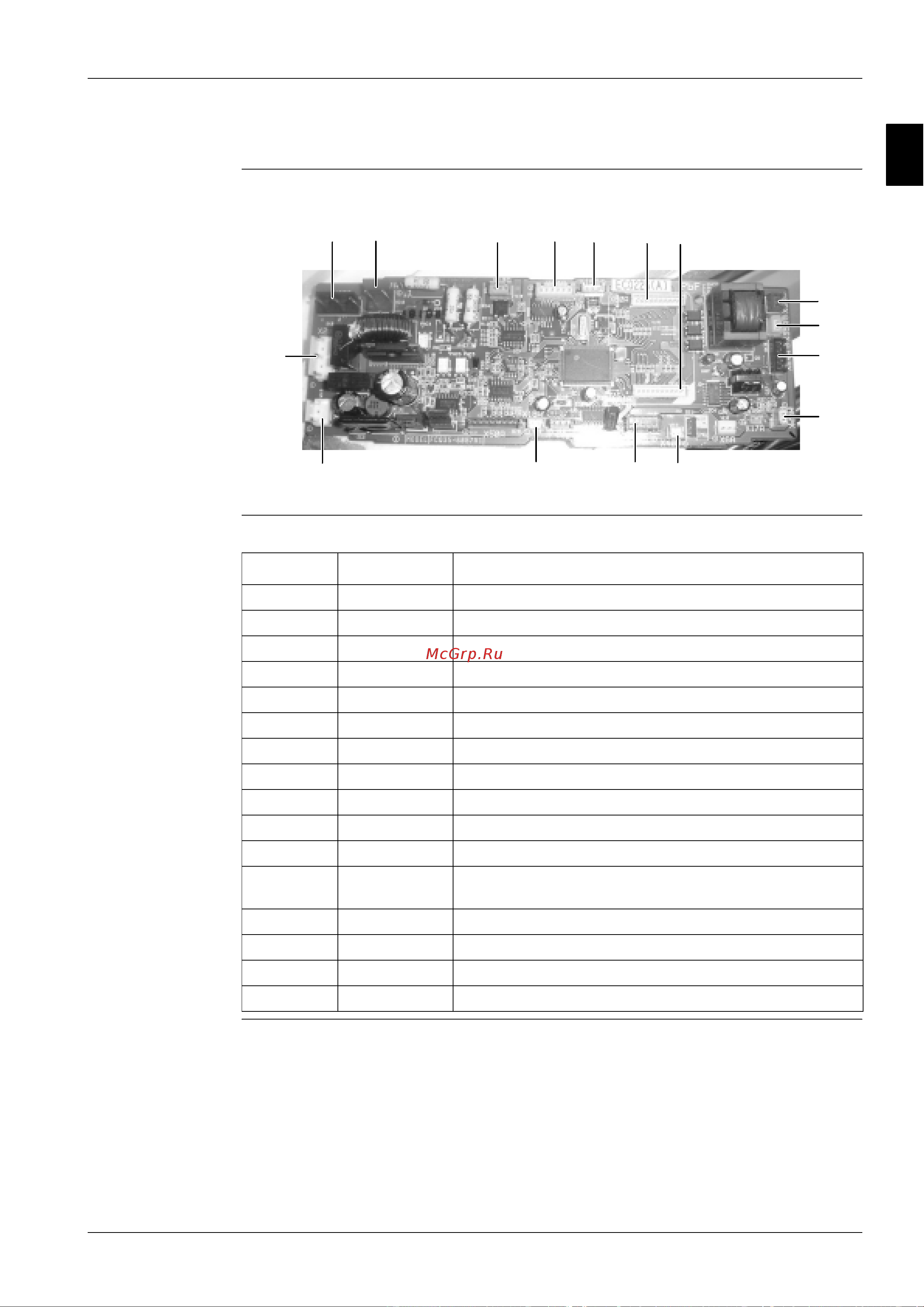

PCB The illustration below shows the PCB connectors.
Connectors The table below describes the PCB connectors.
X11A
X5A
X10A X19A
X40AX18A
X25A
X35A
X24A
X15A
X27A
X36A
X20A
X33A
X60A X61AX11A
Connector Connected to Description
X5A X1M Terminal strip for P1/P2
X10A T1R Transformer secondary side
X11A T1R Transformer primary side
X15A S1L Float switch
X18A R2T Coil thermistor (liquid)
X19A R1T Air thermistor
X20A M2F Fan motor (power supply)
X24A X2A on A3P X24A is connected when the infrared remote control is used.
X25A M3P Drain pump motor
X27A X2M Power supply & communication
X33A X1A on KRP1B Connector for wiring adapter KRP1B
X35A X1A on KRP4 Connector to group control adapter power supply (16VDC) for
optional PCB KRP4
X36A M1A Swing flap motor
X40A – Connector for remote ON/OFF, Forced OFF
X60A X1A on DTA112 Connector for interface adapter
X61A X2A on DTA112 Connector for interface adapter
