Disassembly and Maintenance ESIEN05-04
5–64 Part 5 – Disassembly and Maintenance
3
1
55

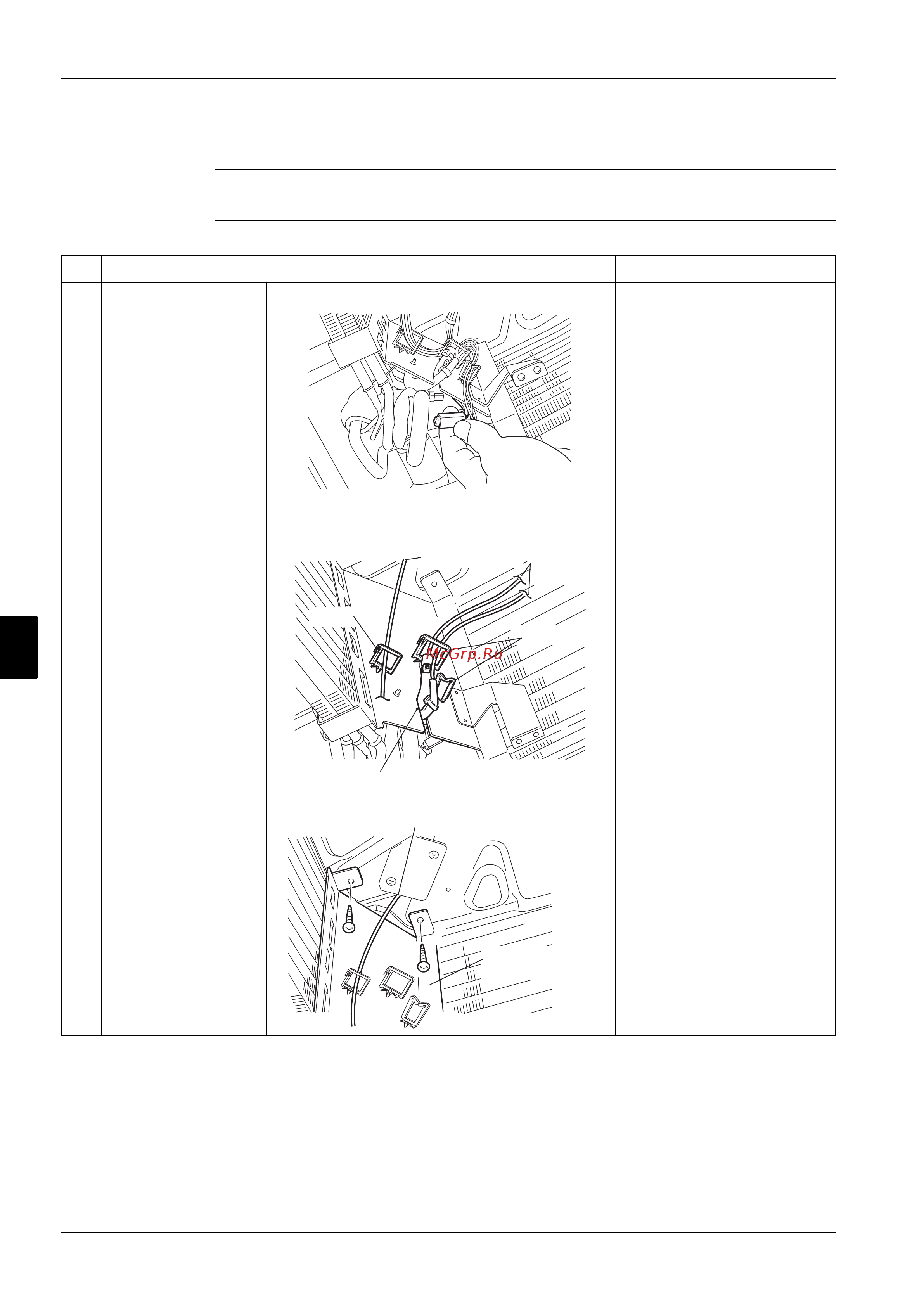

1.12.11 Replacement of Heat Exchanger Thermistor
Warning Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work.
Procedure:
Step Procedure Points
1 Disconnect the
grounding terminal from
the header.
2 Pull apart the thermistor
ass'y and motor lead wire
from the clamps.
Pull out the thermistor
from the slit of heat
exchanger partition plate.
3
4 Remove two screws to
the top panel, then, pull
the partition plate of heat
exchanger downward.
(S2670)
Clamp
Clamps
Fan motor lead wire
Thermistor
ass'y
Slit
(S2671)
(S2672)
Heat exchanger
partition plate
Fan motor lead wire
