Daikin FAQ100BVV1B [360/381] Removal of air swing motor
![Daikin FCQ140DV3B [360/381] Removal of air swing motor](/views2/1697514/page360/bg168.png)
Disassembly and Maintenance ESIEN05-04
5–120 Part 5 – Disassembly and Maintenance
3
1
55

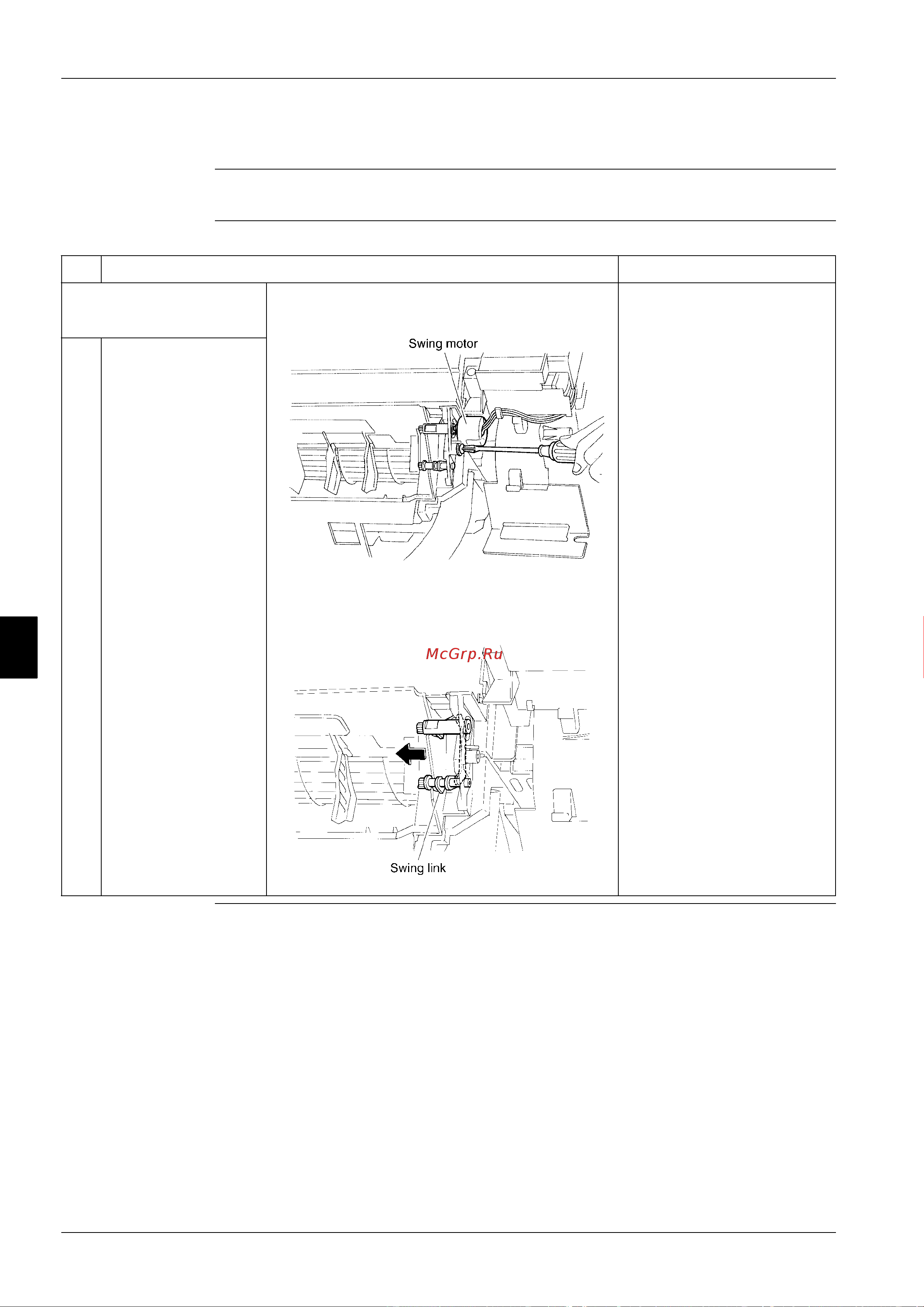

1.15.7 Removal of Air Swing Motor
Warning Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work.
Procedure:
Step Procedure Points
Q Removing the front grille in
accordance with "Removal
of Front Grille".
1 Disconnect the air swing
motor connector in the
electrical box.
2 Remove the screw which
fixes the air swing motor.
3 Pull the air swing link
assembly to the left
strongly to dismantle.
