PCB Layout ESIEN05-04
1–114 Part 1 – System Outline
3
11
4
5
6.7 FBQ100, 125B & FDEQ100, 125B

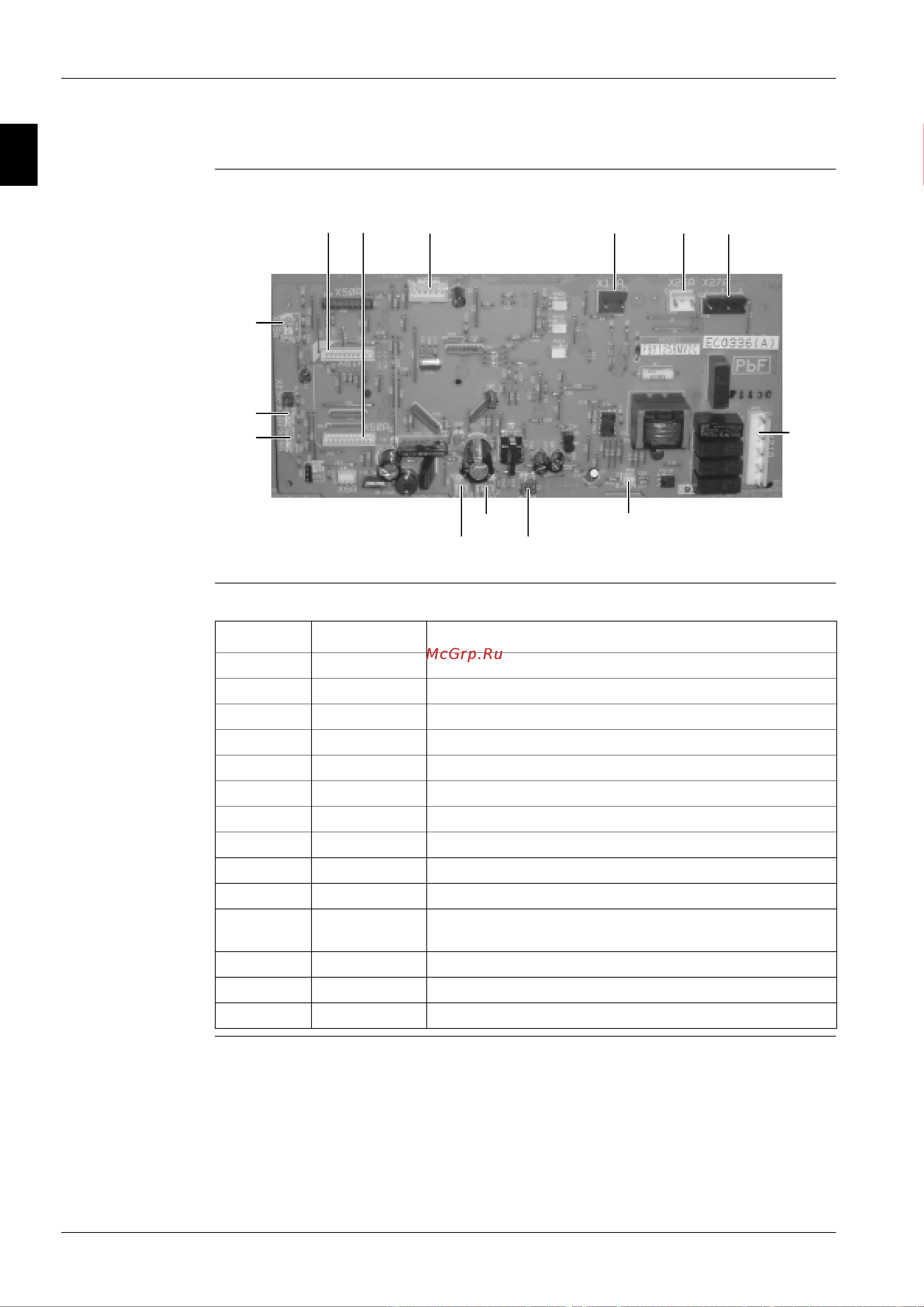

PCB The illustration below shows the PCB connectors.
Connectors The table below describes the PCB connectors.
X61A
X18A
X19A
X15A
X60A X33A X25A
X40A
X35A X5A
X10A
X11A
X27A
X21A
Connector Connected to Description
X5A X1M Terminal strip for P1/P2
X10A T1R Transformer secondary side
X11A T1R Transformer primary side
X15A S1L Float switch
X18A R2T Coil thermistor (liquid)
X19A R1T Air thermistor
X21A M1F Fan motor (power supply)
X25A M1P Drain pump motor
X27A X2M Power supply & communication
X33A X1A on KRP1B Connector for wiring adapter KRP1B
X35A X1A on KRP4 Connector to group control adapter power supply (16VDC) for
optional PCB KRP4
X40A – Connector for remote ON/OFF, Forced OFF
X60A X1A on DTA112 Connection for interface adapter
X61A X2A on DTA112 Connection for interface adapter
