DWS-3160 Series Gigabit Ethernet Unified Switch Web UI Reference Guide

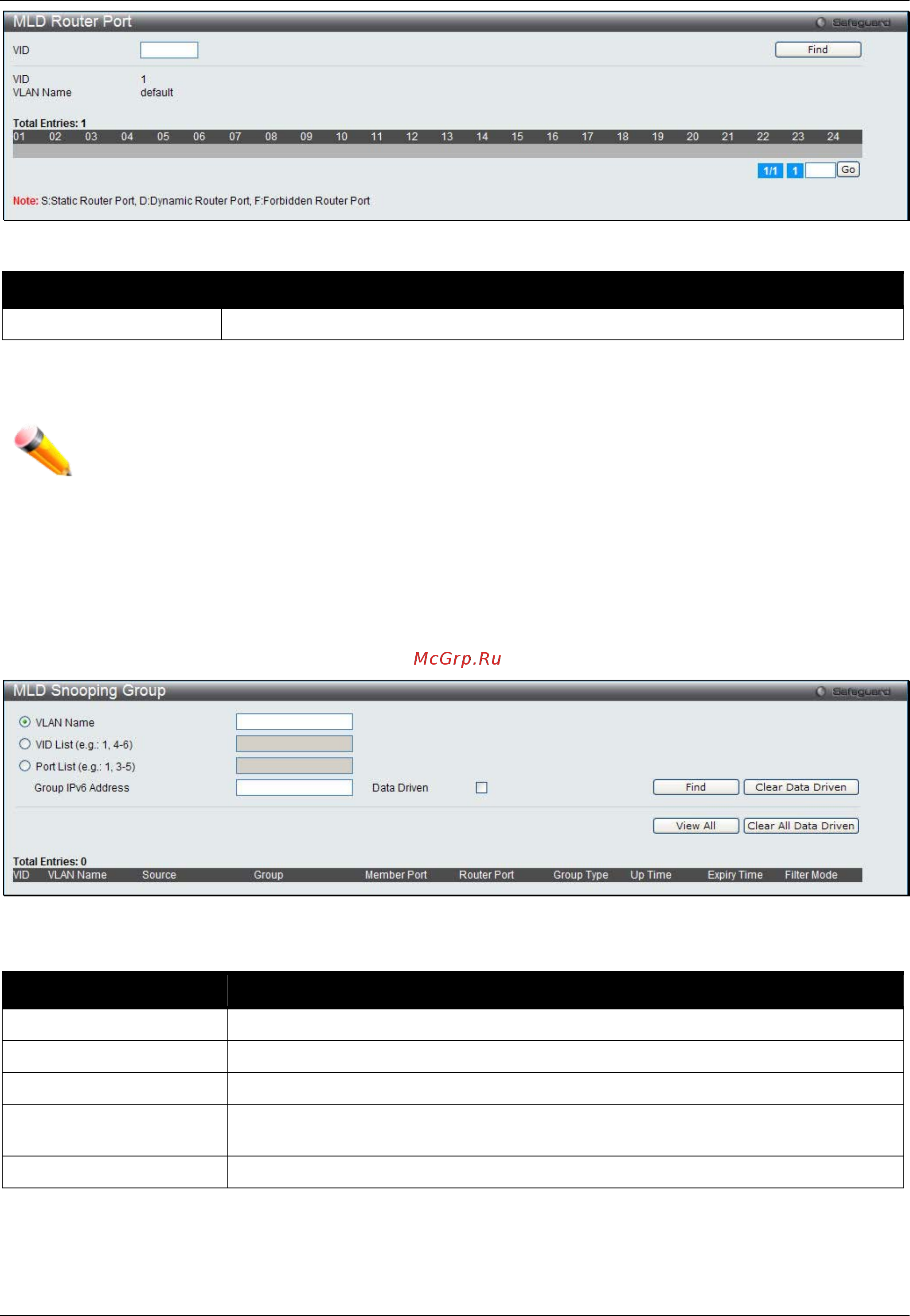

Figure 7-60 MLD Router Port window

Parameter Description

VID

Enter a VLAN ID.

Click the Find button to locate a specific entry based on the information entered.

Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.

NOTE: The abbreviations used on this page are Static Router Port (S), Dynamic Router Port (D)

and Forbidden Router Port (F).

MLD Snooping Group

Users can view MLD Snooping Groups present on the Switch. MLD Snooping is an IPv6 function comparable to

IGMP Snooping for IPv4.

To view the following window, click L2 Features > L2 Multicast Control > MLD Snooping > MLD Snooping

Group, as show below:

Figure 7-61 MLD Snooping Group window

The fields that can be configured are described below:

Parameter Description

VLAN Name

Click the radio button and enter the VLAN name of the multicast group.

VID List

Click the radio button and enter a VLAN list of the multicast group.

Port List

Specify the port number(s) used to find a multicast group.

Group IPv6 Address Enter the group IPv6 address used here. Select the Data Driven option to enable

the data driven feature for this MLD snooping group.

Data Driven

If Data Drive is selected, only data driven groups will be displayed.

Click the Find button to locate a specific entry based on the information entered.

Click the Clear Data Driven button to delete the specific MLD snooping group which is learned by the Data Driven

feature of the specified VLAN.

Click the View All button to display all the existing entries.
