DWS-3160 Series Gigabit Ethernet Unified Switch Web UI Reference Guide

285

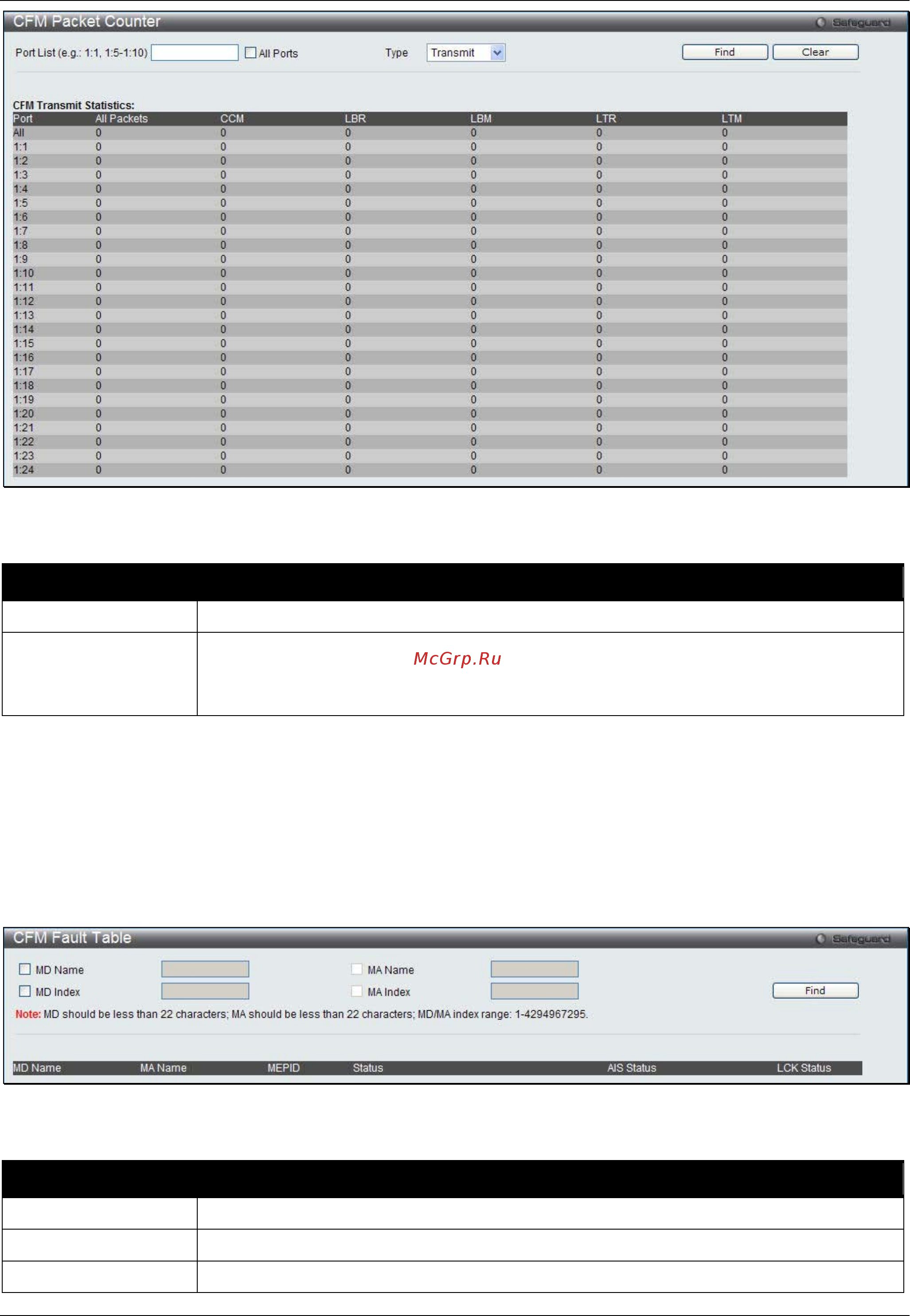

Figure 13-14 CFM Packet Counter Window

The fields that can be configured are described below:

Parameter Description

Port List

Enter a list of ports to be displayed. Tick the All Ports check box to display all ports.

Type Transmit – Selecting this option will display all the CFM packets transmitted.

Receive – Selecting this option will display all the CFM packets received.

CCM – Selecting this option will display all the CFM packets transmitted and received.

Click the Find button to locate a specific entry based on the information entered.

Click the Clear button to clear all the information entered in the fields.

CFM Fault Table

This window is used to show the MEPs that have faults.

To view this window, click OAM > CFM > CFM Fault Table, as shown below:

Figure 13-15 CFM Fault Table Window

The fields that can be configured are described below:

Parameter Description

MD Name

Select and enter the Maintenance Domain name used.

MD Index

Select and enter the Maintenance Domain index used.

MA Name

Select and enter the Maintenance Association name used.
