DWS-3160 Series Gigabit Ethernet Unified Switch Web UI Reference Guide
294
Port Statistics
Packets
The Web manager allows various packet statistics to be viewed as either a line graph or a table. Six windows are
offered.
Received (RX)
To select a port to view these statistics for, select the port by using the Port drop-down menu. The user may also
use the real-time graphic of the Switch at the top of the web page by simply clicking on a port.
To view this window, click Monitoring > Statistics > Port Statistics > Packets > Received (RX) as shown below:

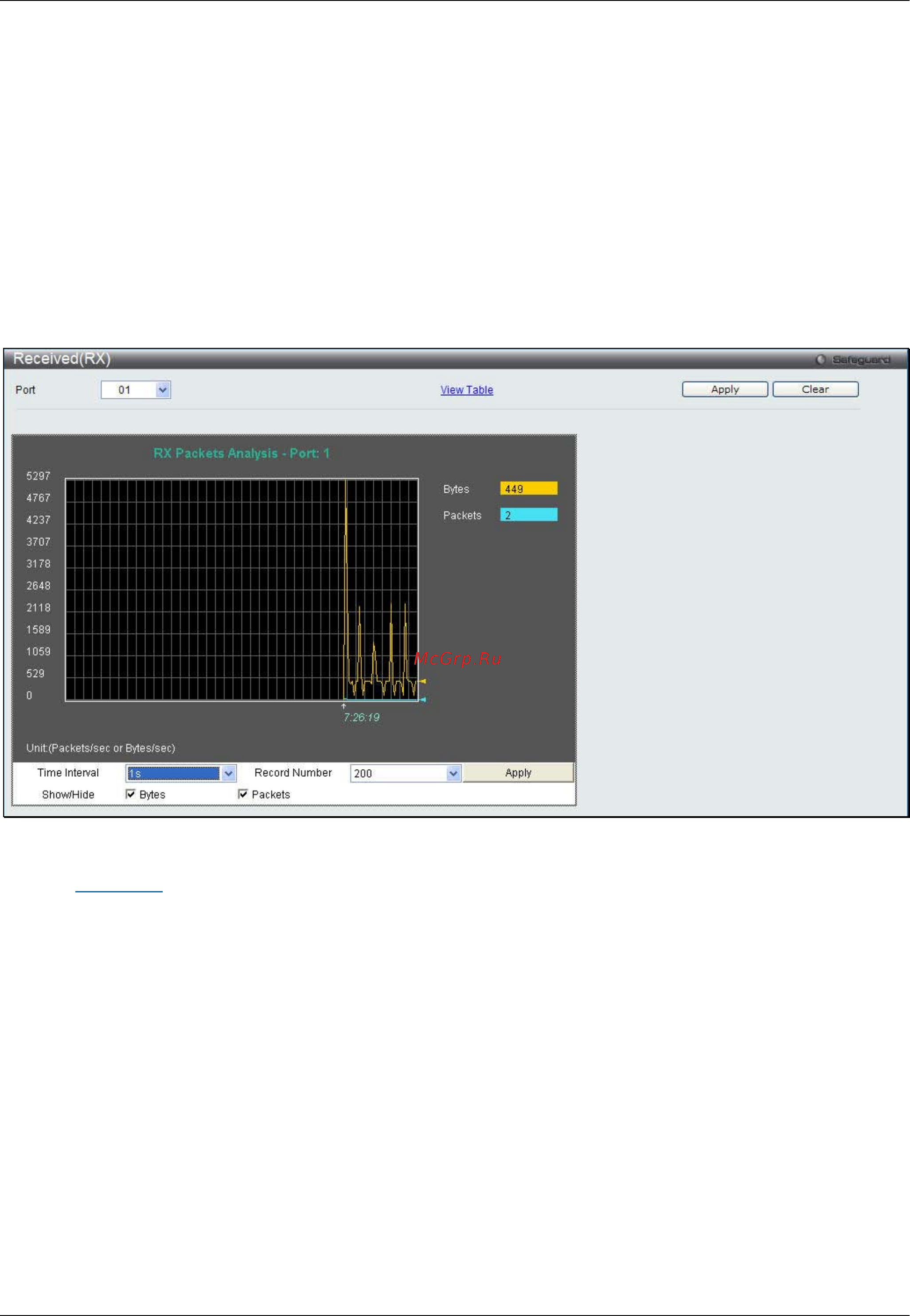

Figure 14-4 Received (RX) window (for Bytes and Packets)
Click the
View Table link to display the information in a table rather than a line graph.
