DWS-3160 Series Gigabit Ethernet Unified Switch Web UI Reference Guide

448

Source Prefix

Tick the check box and enter an IPv6 prefix and a packet’s source IPv6 prefix must

match the address entered.

Source Prefix Mask

Enter the source IPv6 mask, when the Source Prefix check box is selected.

Source L4 Port

Tick the check box and use the drop-down menu to select L4 keyword of source

ports to match a packet’s TCP/UDP source port. When selecting Other, the

Source Port Value field appears. Enter a value in the field.

Destination Prefix

Tick the check box and enter an IPv6 prefix and a packet’s destination IPv6 prefix

must match the address entered.

Destination Prefix Mask

Enter the destination IPv6 mask, when the Destination Prefix check box is selected.

Destination L4 Port

Tick the check box and use the drop-down menu to select L4 keyword of

destination ports to match a packet’s TCP/UDP destination port. When selecting

Other, Destination Port Value appears. Enter a value in the field.

Flow Label

Tick the check box and enter a value of IPv6 flow label.

IP DSCP Service Tick the check box and select one of the DSCP keyword values from the IP DSCP

drop-down menu. When selecting Other, the IP DSCP Value field appears. Enter a

value in the field.

Click the Apply button to accept the changes made.

Click the Cancel button to discard the configuration.

MAC Access Control Lists

This window is used to configure MAC access control lists.

To view this window, click QoS > Access Control Lists > MAC Access Control Lists as shown below:

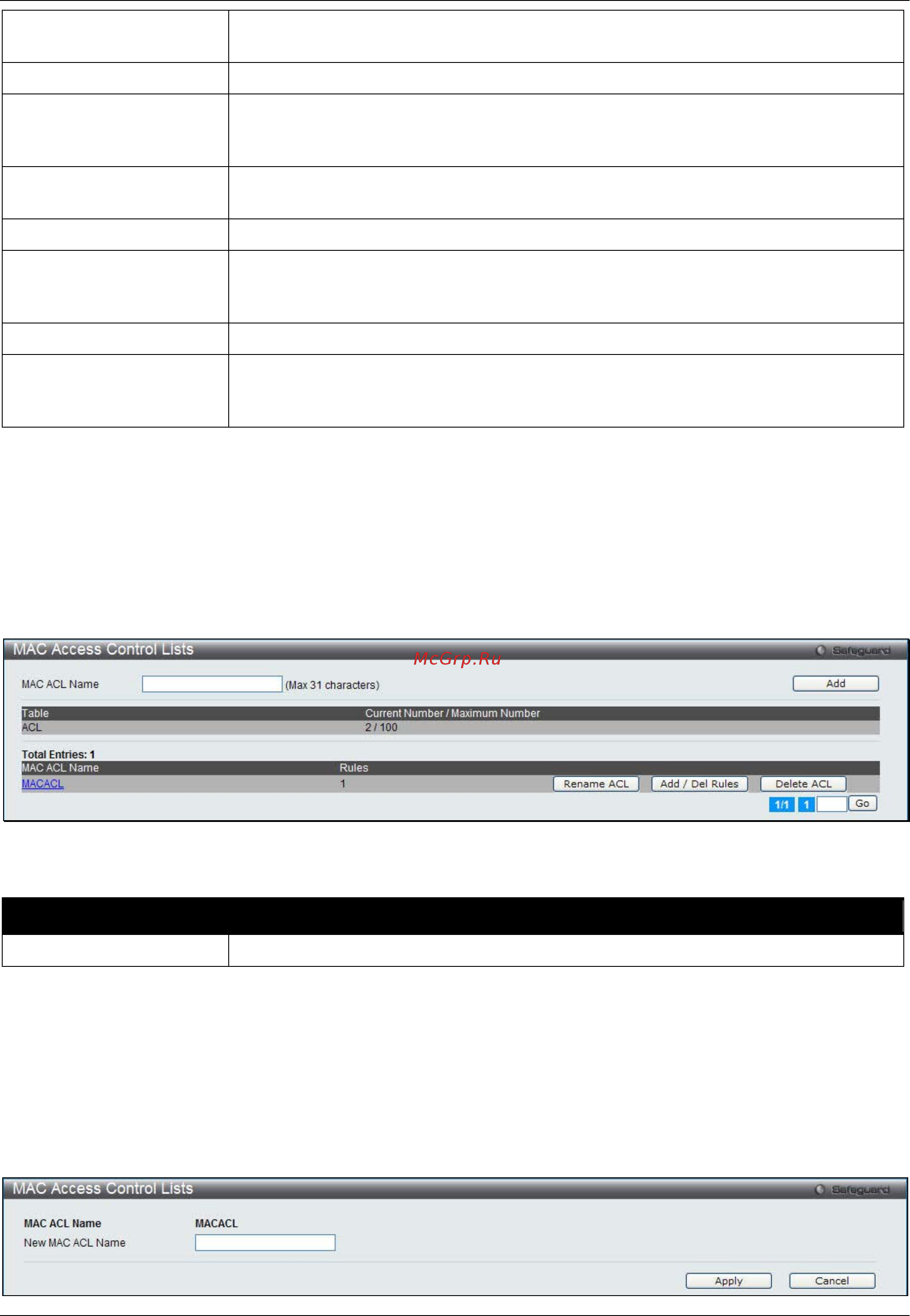

Figure 4-15 MAC Access Control Lists window

The fields that can be configured are described below:

Parameter Description

MAC ACL Name

Enter the ID or name of the MAC ACL.

Click the Add button to add a new entry based on the information entered.

Click the Rename ACL button to change the name of the specific ACL.

Click the Add / Delete Rules to configure the ACL rules.

Click the Delete ACL to remove the entry from the list.

Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.

After clicking the Rename ACL button, the following page will appear:
