DeleteOnReset – The locked addresses will not age out until the Switch has been

reset or rebooted.

Max Learning

Address (0-3072)

Specify the maximum value of port security entries that can be learned on this port.

Click the Apply button to accept the changes made for each individual section.

Click the Edit button to re-configure the specific entry.

Click the View Detail button to display the information of the specific entry.

After clicking the View Detail button, the following page will appear:

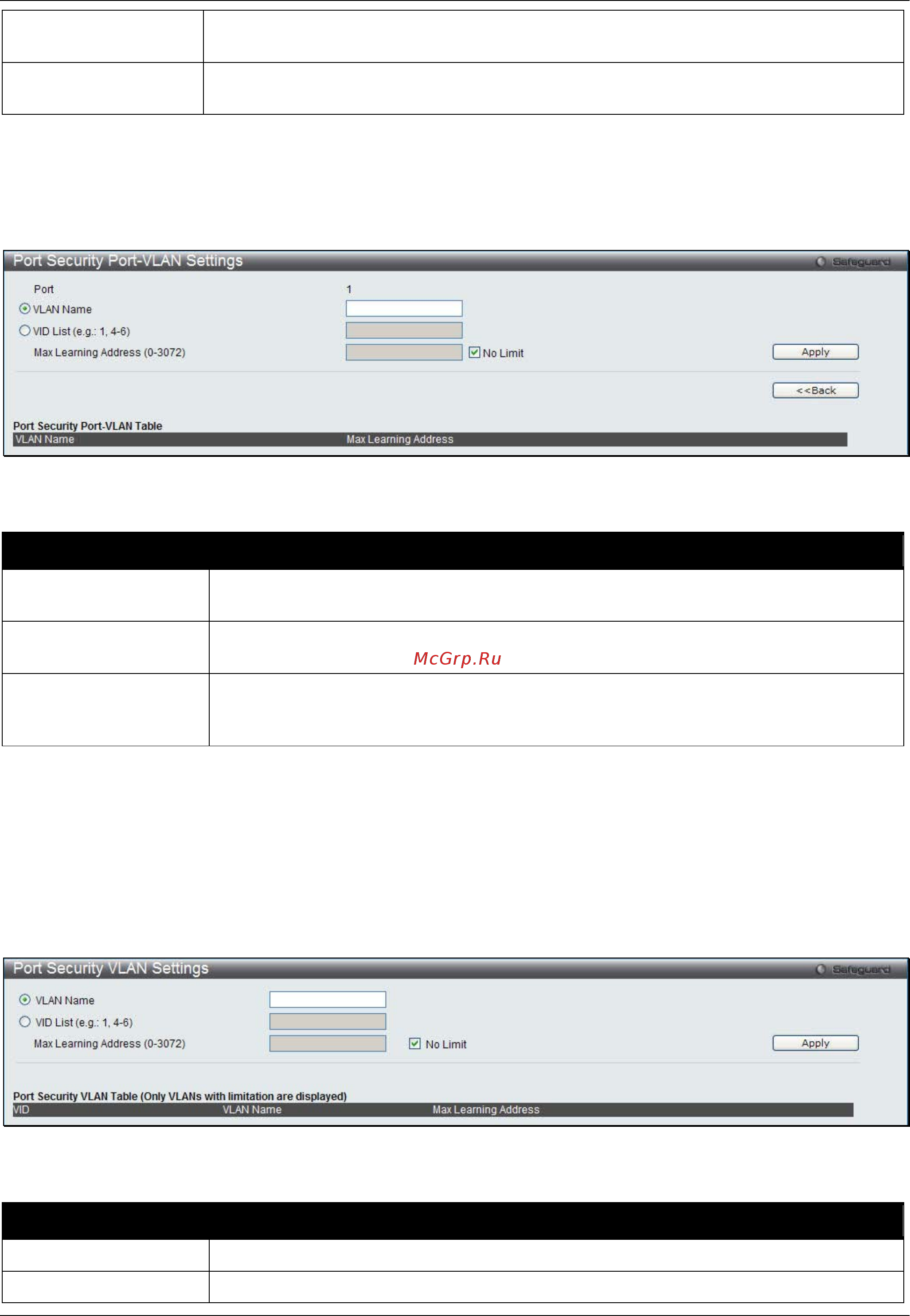

Figure 11-40 Port Security Port-VLAN Settings window

The fields that can be configured are described below:

Parameter Description

VLAN Name

Click the button and enter the name of the VLAN that the port security settings will be

displayed for.

VID List

Click the button and enter VLAN IDs that the port security settings will be displayed

for.

Max Learning

Address (0-3072)

Specify the maximum value of port security entries that can be learned on this port.

Tick the No Limit check box to have unlimited number of port security entries that

can be learned by the system.

Click the Apply button to accept the changes made.

Click the <<Back button to discard the changes made and return to the previous window.

Port Security VLAN Settings

Users can configure the maximum number of port-security entries that can be learned on a specific VLAN.

To view this window, click Security > Port Security > Port Security VLAN Settings as shown below:

Figure 11-41 Port Security VLAN Settings window

The fields that can be configured are described below:

Parameter Description

VLAN Name

Enter the VLAN Name.

VID List

Specify a list of the VLAN be VLAN ID.
