CFM Port Settings

This window is used to enable or disable the CFM function on a per-port basis.

To view this window, click OAM > CFM > CFM Port Settings, as shown below:

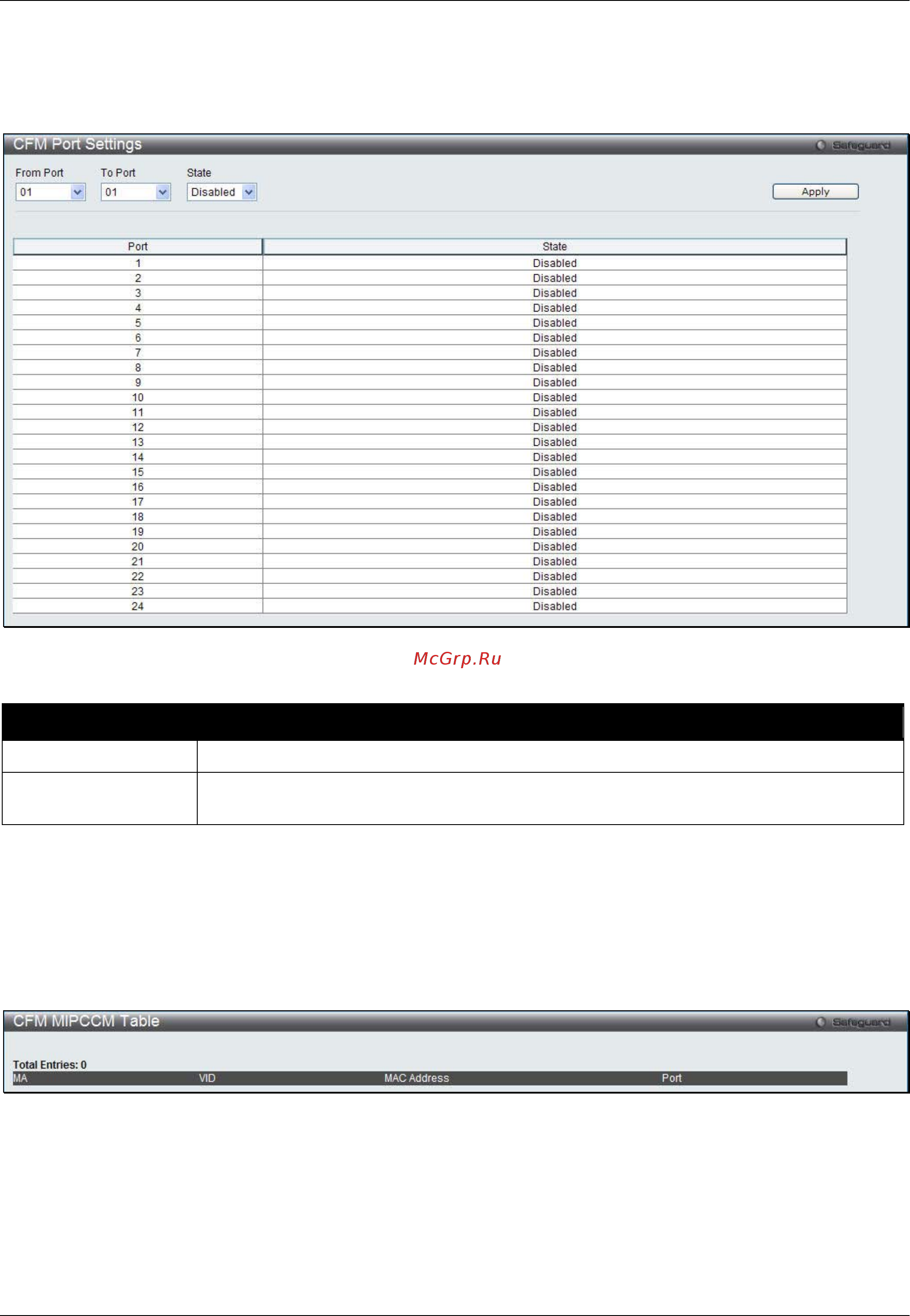

Figure 13-10 CFM Port Settings Window

The fields that can be configured are described below:

Parameter Description

From Port / To Port

Use the drop-down menus to select a range of ports to be configuration.

State

Use the drop-down menu to enable or disable the state of specific port regarding the

CFM configuration.

Click the Apply button to accept the changes made.

CFM MIPCCM Table

This window is used to show the MIP CCM database entries.

To view this window, click OAM > CFM > CFM MIPCCM Table, as shown below:

Figure 13-11 CFM MIPCCM Table Window

CFM Loopback Settings

This window is used to start a CFM loopback test.

To view this window, click OAM > CFM > CFM Loopback Settings, as shown below:
