DWS-3160 Series Gigabit Ethernet Unified Switch Web UI Reference Guide
310
Port (30000-64900)
The port number. The value range is from 30000 to 64900.
Timeout (1-65535)
Defines the timeout period while waiting for a response from the remote device. A
value of 1 to 65535 seconds can be specified. The default is 5 seconds.
Probe (1-9)
The number of probing. The range is from 1 to 9. If unspecified, the default value is 1.
Click the Start button to initiate the Trace Route.
After clicking the Start button, the following page will appear:

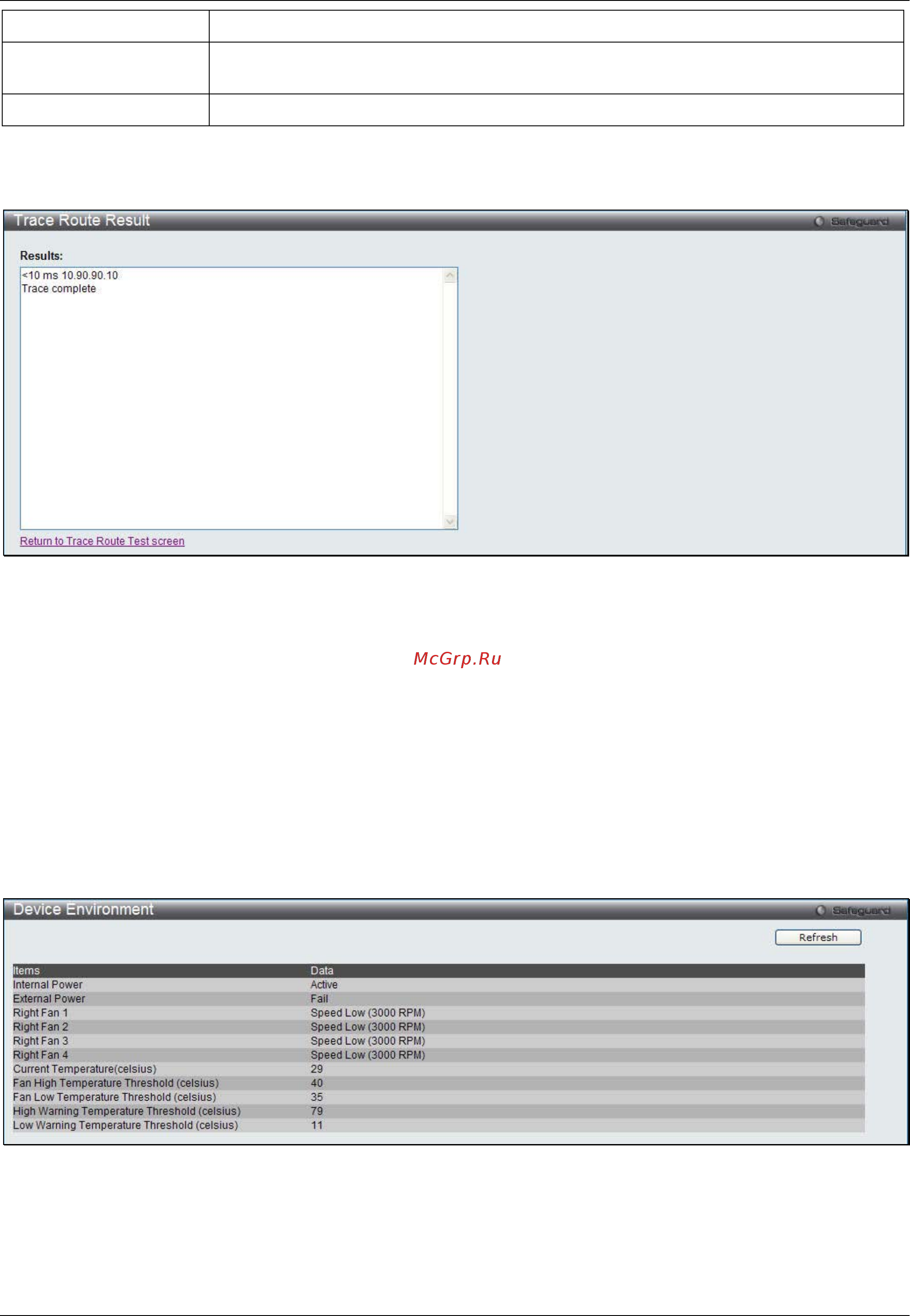

Figure 14-26 Trace Route Result window
Click the Stop button to halt the Trace Route.
Click the Resume button to resume the Trace Route.
Peripheral
Device Environment
The device environment feature displays the Switch internal temperature status.
To view this window, click Monitoring > Peripheral > Device Environment as shown below:
Figure 14-27 Device Environment window
Click the Refresh button to refresh the display table so that new entries will appear.
