Click the Apply button to accept the changes made.

DSCP Map Settings

The mapping of DSCP to queue will be used to determine the priority of the packet (which will be then used to

determine the scheduling queue) when the port is in DSCP trust state.

The DSCP-to-DSCP mapping is used in the swap of DSCP of the packet when the packet is ingresses to the port.

The remaining processing of the packet will base on the new DSCP. By default, the DSCP is mapped to the same

DSCP.

To view the following window, click QoS > DSCP > DSCP Map Settings, as show below:

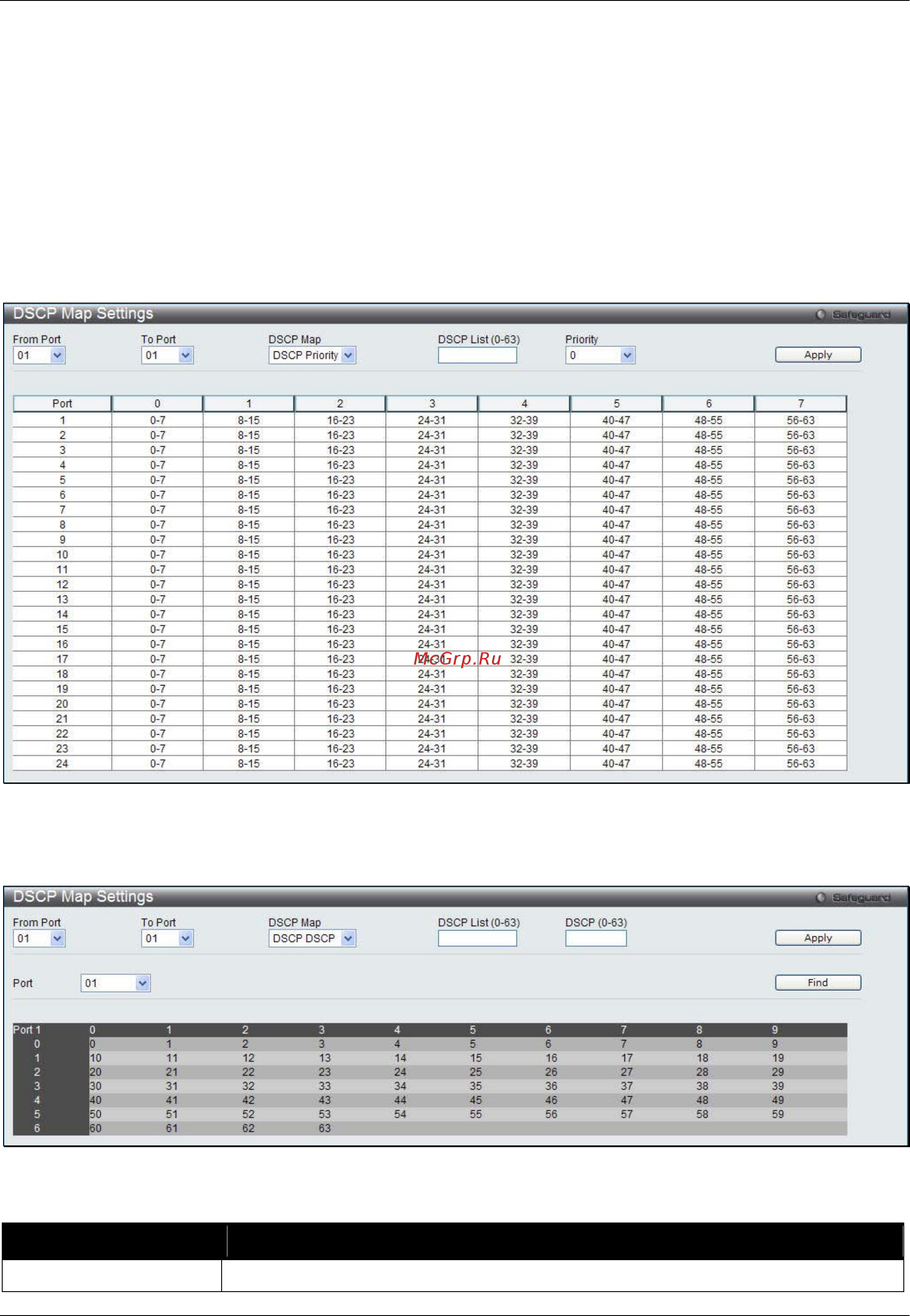

Figure 9-8 DSCP Map Settings - DSCP Priority window

To view the following window, click QoS > DSCP > DSCP Map Settings and select DSCP DSCP from the DSCP

Map drop-down menu, as show below:

Figure 9-9 DSCP Map Settings - DSCP DSCP window

The fields that can be configured are described below:

Parameter Description

From Port / To Port

Use the drop-down menu to select a range of port to configure.
