DWS-3160 Series Gigabit Ethernet Unified Switch Web UI Reference Guide
293

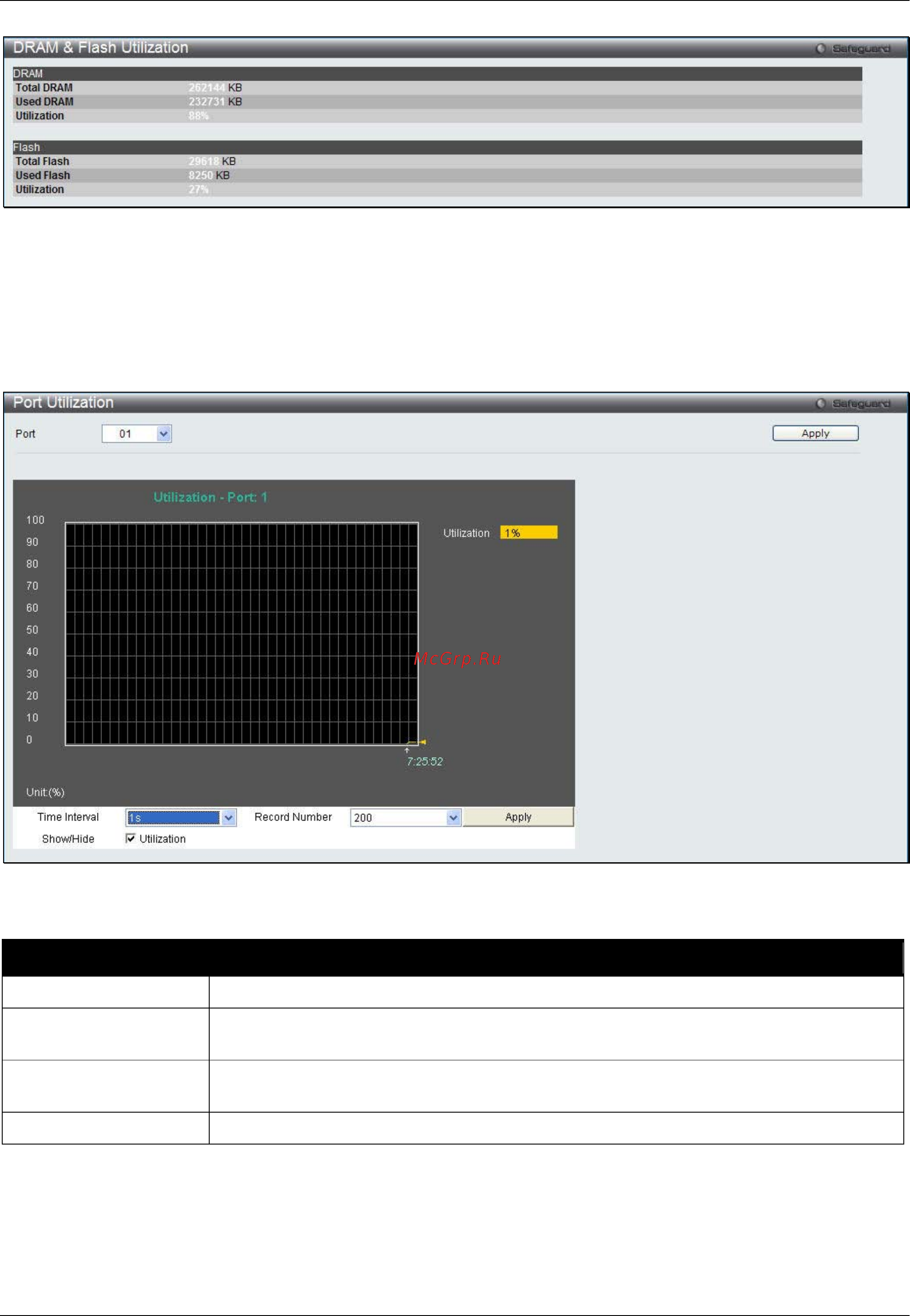

Figure 14-2 DRAM & Flash Utilization window
Port Utilization
Users can display the percentage of the total available bandwidth being used on the port.
To view this window, click Monitoring > Utilization > Port Utilization as shown below:
Figure 14-3 Port Utilization window
The fields that can be configured are described below:
Parameter Description
Port
Use the drop-down menu to choose the port that will display statistics.
Time Interval Select the desired setting between 1s and 60s, where "s" stands for seconds. The
default value is one second.
Record Number Select number of times the Switch will be polled between 20 and 200. The default
value is 200.
Show/Hide
Check whether or not to display Port Util.
Click the Apply button to accept the changes made for each individual section.
Statistics
