DWS-3160 Series Gigabit Ethernet Unified Switch Web UI Reference Guide
438
Chapter 4 QoS
Access Control Lists
Differentiated Services
Access Control Lists
IP Access Control Lists
IP access control lists (ACL) allow network managers to define classification actions and rules for wireless
networks.
To view this window, click QoS > Access Control Lists > IP Access Control Lists as shown below:

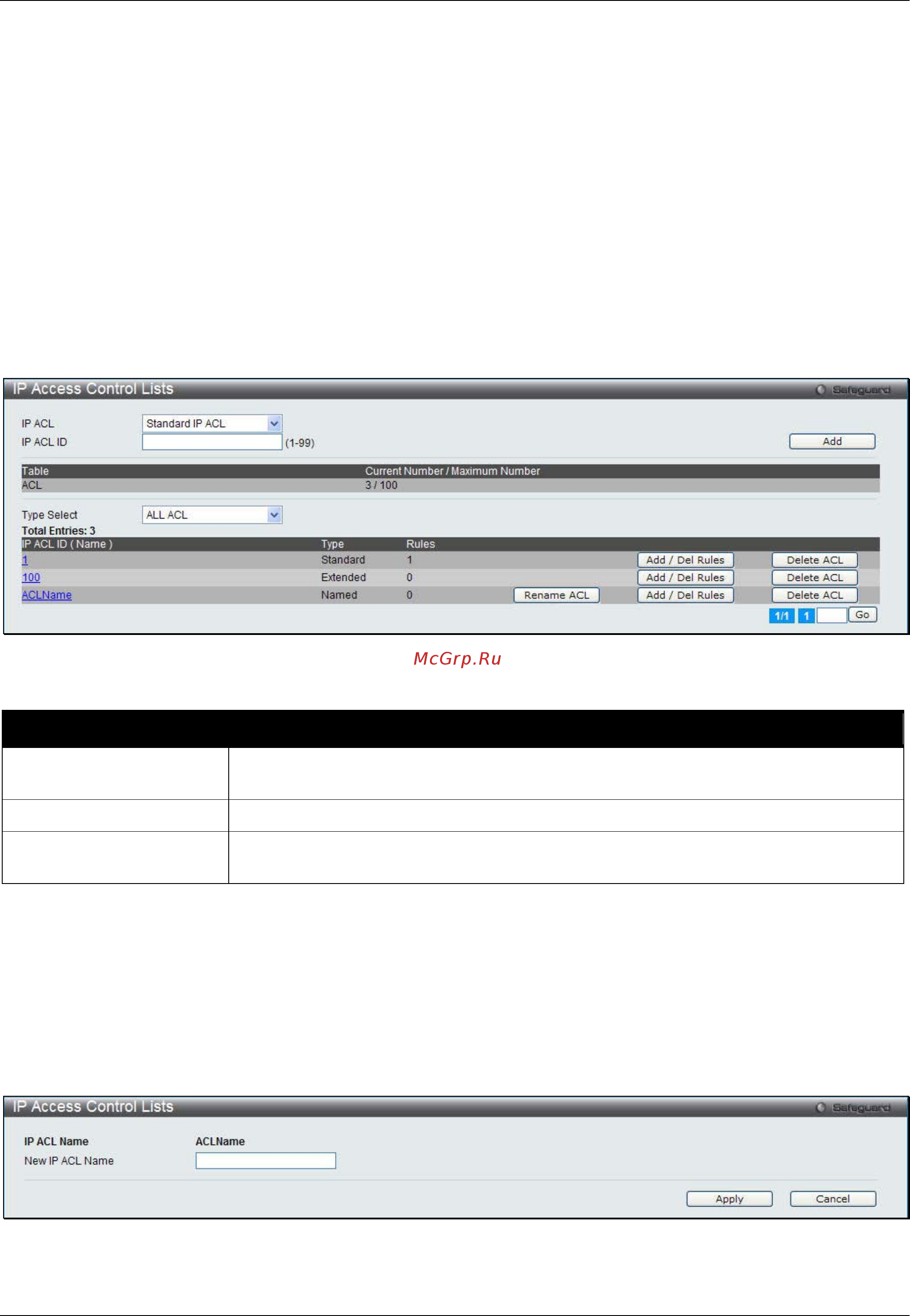

Figure 4-1 IP Access Control Lists window
The fields that can be configured are described below:
Parameter Description
IP ACL Use the drop-down menu to select the IP ACL type, Standard IP ACL, Extended IP
ACL, or Named IP ACL.
IP ACL ID/Name
Enter the ID or name of the IP ACL.
Type Select
Use the drop-down menu to select the IP ACL type to see the information shown in
the table below.
Click the Add button to add a new entry based on the information entered.
Click the Rename ACL button to change the name of the specific ACL.
Click the Add / Delete Rules to configure the ACL rules.
Click the Delete ACL to remove the entry from the list.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
After clicking the Rename ACL button, the following page will appear:
Figure 4-2 IP Access Control Lists – Rename window
The fields that can be configured are described below:
