DWS-3160 Series Gigabit Ethernet Unified Switch Web UI Reference Guide
214
Click the View All button to display all the existing entries.
Click the Delete All button to remove all the entries listed.
DHCP Snooping
DHCP Snooping Maximum Entry Settings
Users can configure the maximum DHCP snooping entry for ports on this page.
To view this window, click Security > IP-MAC-Port Binding (IMPB) > DHCP Snooping > DHCP Snooping
Maximum Entry Settings as shown below:

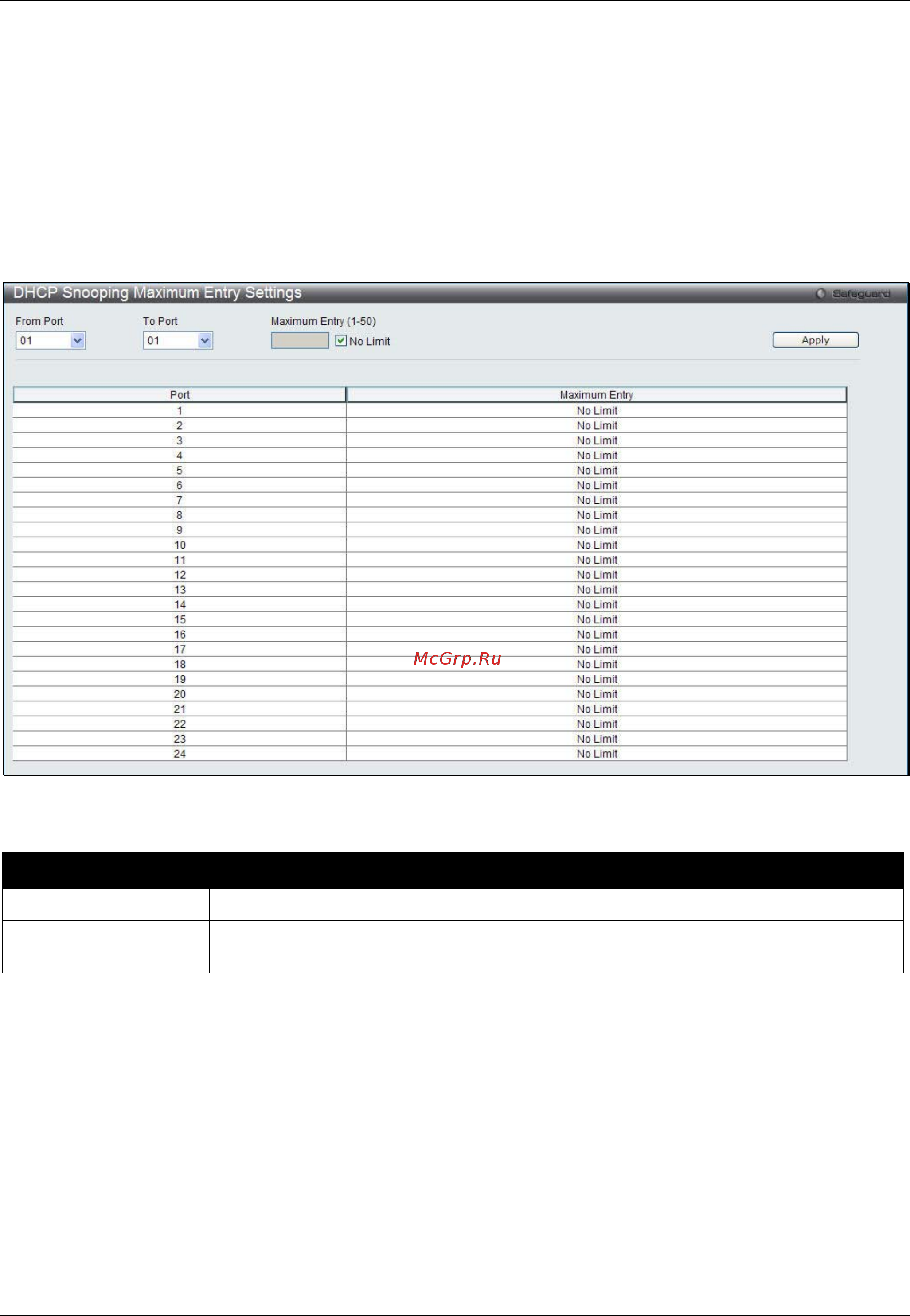

Figure 11-30 DHCP Snooping Max Entry Settings window
The fields that can be configured are described below:
Parameter Description
From Port / To Port
Use the drop-down menus to select a range of ports to use.
Maximum Entry (1-50) Enter the maximum entry value. Tick the No Limit check box to lift the maximum
entry.
Click the Apply button to accept the changes made.
DHCP Snooping Entry
This window is used to view dynamic entries on specific ports.
To view this window, click Security > IP-MAC-Port Binding (IMPB) > DHCP Snooping > DHCP Snooping Entry
as shown below:
