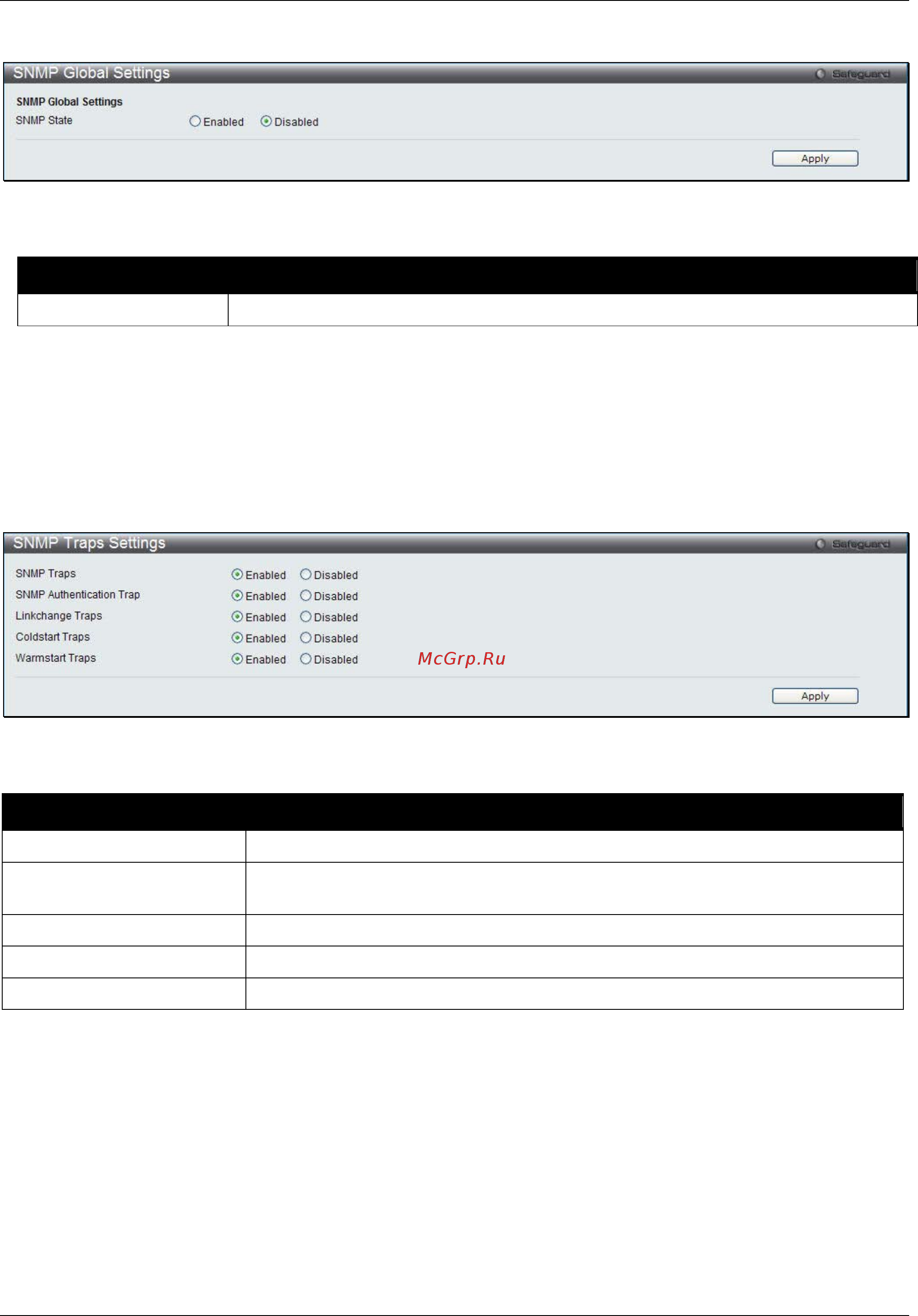

DWS-3160 Series Gigabit Ethernet Unified Switch Web UI Reference Guide
43
To view the following window, click Management > SNMP Settings > SNMP Global Settings, as show below:
Figure 6-32 SNMP Global Settings window
The fields that can be configured are described below:
Parameter Description
SNMP State
Enable this option to use the SNMP feature.
Click the Apply button to accept the changes made.
SNMP Traps Settings
Users can enable and disable the SNMP trap support function of the switch and SNMP authentication failure trap
support, respectively.
To view the following window, click Management > SNMP Settings > SNMP Traps Settings, as show below:
Figure 6-33 SNMP Traps Settings window
The fields that can be configured are described below:
Parameter Description
SNMP Traps
Enable this option to use the SNMP Traps feature.
SNMP Authentication
Trap
Enable this option to use the SNMP Authentication Traps feature.
Linkchange Traps
Enable this option to use the SNMP Link Change Traps feature.
Coldstart Traps
Enable this option to use the SNMP Cold Start Traps feature.
Warmstart Traps
Enable this option to use the SNMP Warm Start Traps feature.
Click the Apply button to accept the changes made.
SNMP Linkchange Traps Settings
On this page the user can configure the SNMP link change trap settings.
To view the following window, click Management > SNMP Settings > SNMP Linkchange Traps Settings, as
show below:
