DWS-3160 Series Gigabit Ethernet Unified Switch Web UI Reference Guide

269

this window. Properly configured settings will be displayed in the DHCP Relay Interface Table at the bottom of the

window, once the user clicks the Apply button. The user may add up to four server IPs per IP interface on the

Switch. Entries may be deleted by clicking the corresponding Delete button.

To view this window, click Network Application > DHCP > DHCP Relay > DHCP Relay Interface Settings as

shown below:

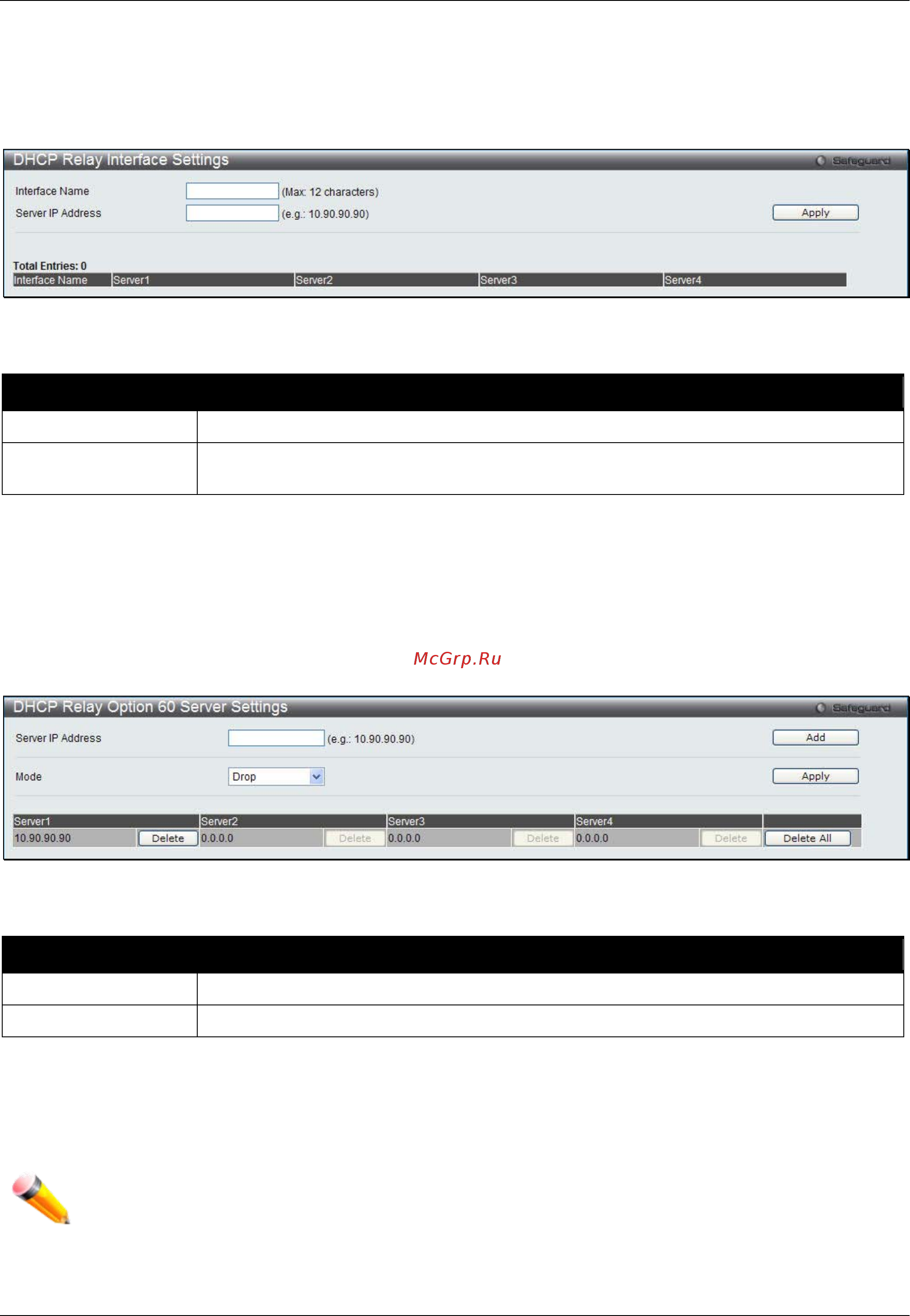

Figure 12-4 DHCP Relay Interface Settings window

The fields that can be configured are described below:

Parameter Description

Interface Name

The IP interface on the Switch that will be connected directly to the Server.

Server IP Address

Enter the IP address of the DHCP server. Up to four server IPs can be configured per

IP Interface.

Click the Apply button to accept the changes made.

DHCP Relay Option 60 Server Settings

This window is used to configure the DHCP relay option 60 server parameters.

To view this window, click Network Application > DHCP > DHCP Relay > DHCP Relay Option 60 Server

Settings as shown below:

Figure 12-5 DHCP Relay Option 60 Server Settings window

The fields that can be configured are described below:

Parameter Description

Server IP Address

Enter the DHCP Relay Option 60 Server Relay IP Address.

Mode

Use the drop-down menu to select the DHCP Relay Option 60 Server mode.

Click the Add button to add a new entry based on the information entered.

Click the Apply button to accept the changes made.

Click the Delete button to remove the specific entry.

Click the Delete All button to remove all the entries listed.

NOTE: When there is no matching server found for the packet based on option 60, the relay servers

will be determined by the default relay server setting.

DHCP Relay Option 60 Settings
