DWS-3160 Series Gigabit Ethernet Unified Switch Web UI Reference Guide
386
Parameter Description
IPv6 ACL Name
IPv6 ACL identifier.
Rule ID
The ordered rule number identifier defined within the IPv6 ACL.
Action
The action associated with each rule. Available values are Permit and Deny.
Match Every
Display whether this access list applies to every packet. Available values are
True and False.
Protocol
The protocol to filter for this rule.
Source Prefix
The source IPv6 address for this rule.
Source L4 Port
The source port for this rule.
Destination Prefix
The destination IPv6 address for this rule.
Destination L4 Port
The destination port for this rule.
Flow Label
The value of IPv6 flow label.
IP DSCP Service
The DSCP keyword value.
Click the <<Back button to return to the previous window.
MAC Access Control Lists
This window is used to display the MAC access control lists.
To view this window, click Monitoring > QoS > Access Control Lists > MAC Access Control Lists as shown
below:

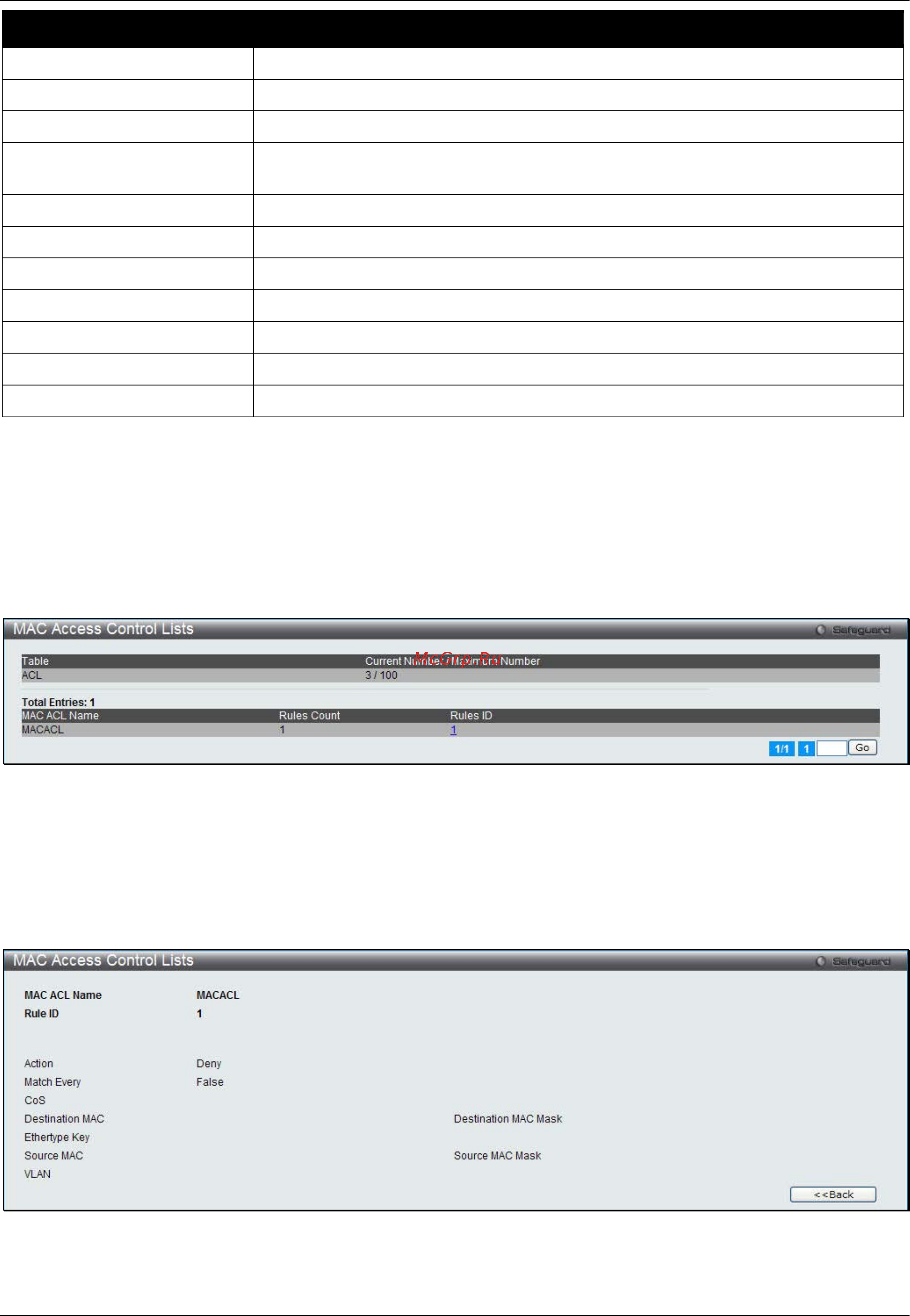

Figure 2-61 MAC Access Control Lists window
Click the Rules ID hyperlink to see the detail information about the rule.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
After clicking the Rules ID hyperlink, the following page will appear:
Figure 2-62 MAC Access Control Lists - Rule ID window
The fields that can be displayed are described below:
