DWS-3160 Series Gigabit Ethernet Unified Switch Web UI Reference Guide
105
Click the Select All button to select all the ports for configuration.
Click the Clear All button to unselect all the ports for configuration.
Click the Apply button to accept the changes made.
Click the <<Back button to discard the changes made and return to the previous window.
After clicking the
Profile List link, the following page will appear:

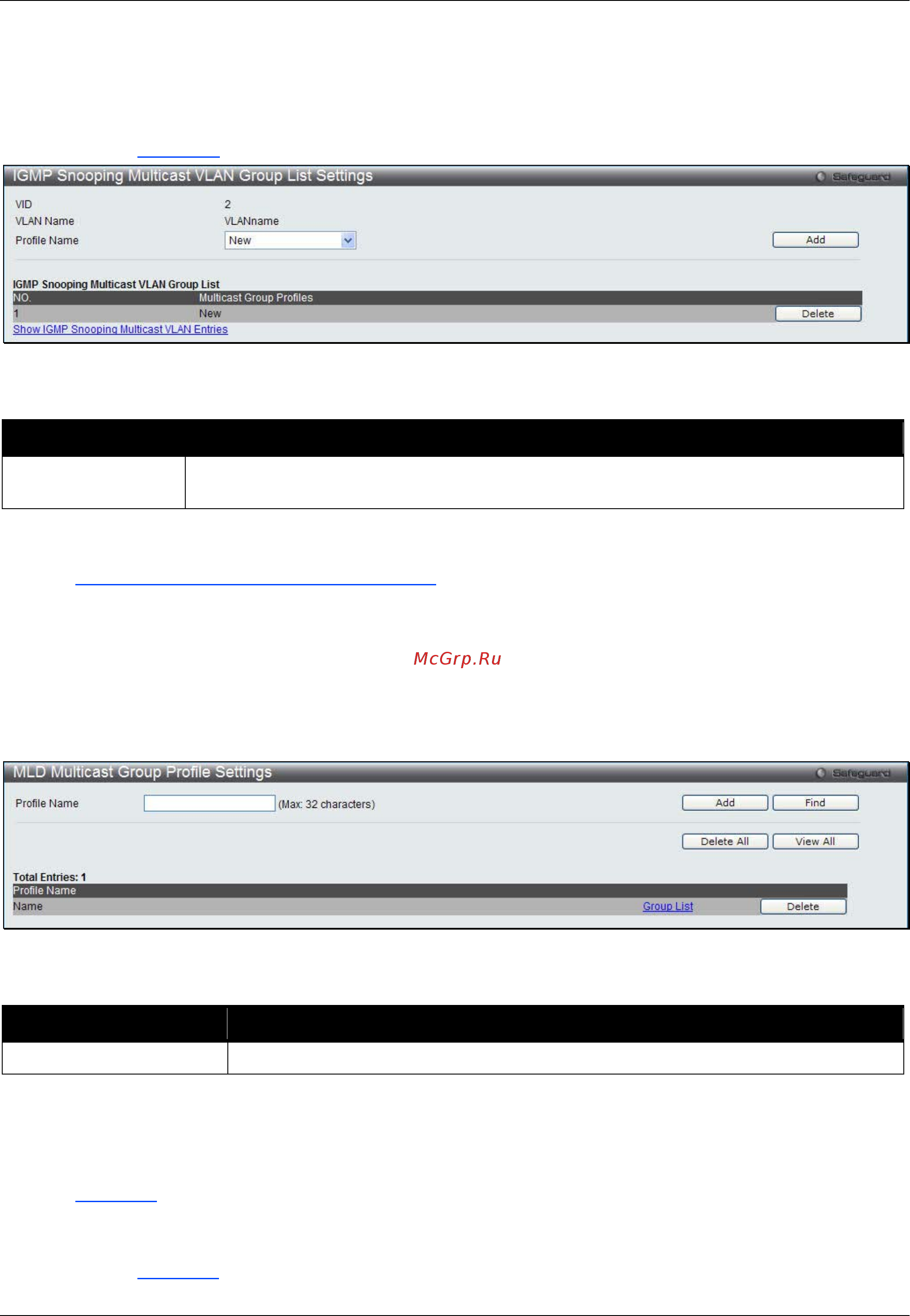

Figure 7-70 IGMP Snooping Multicast VLAN Group List Settings window
The fields that can be configured are described below:
Parameter Description
Profile Name
Use the drop-down menu to select the IGMP Snooping Multicast VLAN Group Profile
name.
Click the Add button to add a new entry based on the information entered.
Click the Delete button to remove the specific entry.
Click the
Show IGMP Snooping Multicast VLAN Entries
link to view the IGMP Snooping Multicast VLAN Settings.
MLD Multicast Group Profile Settings
Users can add, delete, or configure the MLD multicast group profile on this page.
To view the following window, click L2 Features > L2 Multicast Control > Multicast VLAN > MLD Multicast
Group Profile Settings, as show below:
Figure 7-71 MLD Multicast Group Profile Settings window
The fields that can be configured are described below:
Parameter Description
Profile Name
Enter the MLD Multicast Group Profile name.
Click the Add button to add a new entry based on the information entered.
Click the Find button to locate a specific entry based on the information entered.
Click the Delete All button to remove all the entries listed.
Click the View All button to display all the existing entries.
Click the
Group List
Click the Delete button to remove the specific entry.
link to configure the Multicast Group Profile Multicast Address Settings for the specific entry.
After clicking the
Group List link, the following page will appear:
