DWS-3160 Series Gigabit Ethernet Unified Switch Web UI Reference Guide
101
Port List
Specify a list of ports to be displayed.
Click the Find button to locate a specific entry based on the information entered.
Click the View All button to display all the existing entries.
Click the Packet Statistics link to view the MLD Snooping Counter Settings for the specific entry.
After clicking the Packet Statistics link, the following page will appear:

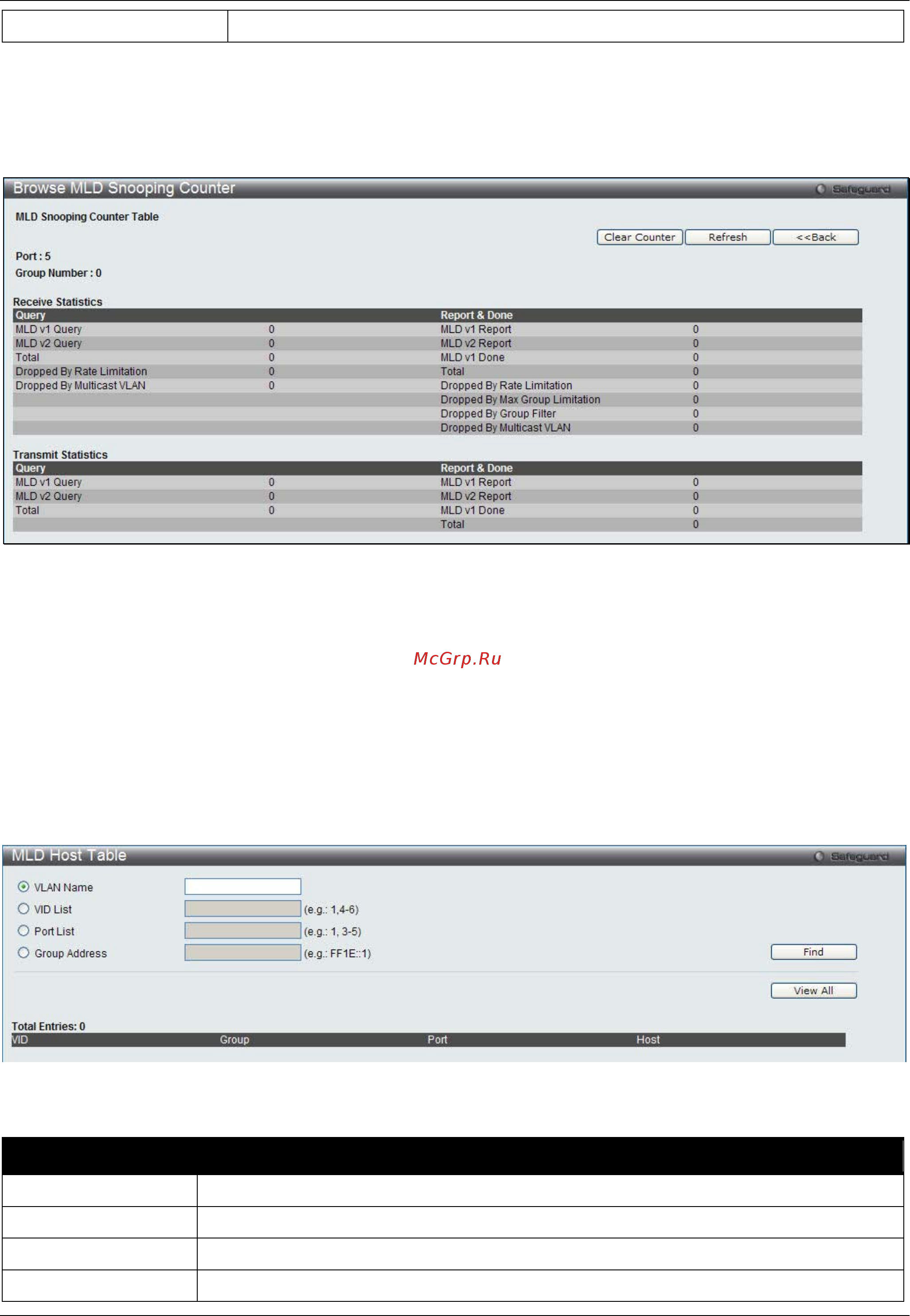

Figure 7-64 Browse MLD Snooping Counter window
Click the Clear Counter button to clear all the information displayed in the fields.
Click the Refresh button to refresh the display table so that new information will appear.
Click the <<Back button to return to the previous window.
MLD Host Table
This window is used to view the MLD host table.
To view the following window, click L2 Features > L2 Multicast Control > MLD Snooping > MLD Host Table, as
show below:
Figure 7-65 MLD Host Table window
The fields that can be configured are described below:
Parameter Description
VLAN Name
Click the radio button and enter the name of VLAN to be displayed.
VID List
Click the radio button and enter a list of VLAN IDs to be displayed.
Port List
Click the radio button and enter a list of ports to be displayed.
Group Address
Click the radio button and enter the group address to be displayed.
