DWS-3160 Series Gigabit Ethernet Unified Switch Web UI Reference Guide

385

Parameter Description

IP ACL Name

The name of the IP ACL.

Rule ID

The number identifier for each rule that is defined for the IP ACL.

Action

The action associated with each rule. Available values are Permit and Deny.

Match Every

Display whether this access list applies to every packet. Available values are

True and False.

Protocol

The protocol to filter for this rule.

Source IP Address

The source IP address for this rule.

Source IP Mask

The source IP Mask for this rule.

Source L4 Port

The source port for this rule.

Destination IP Address

The destination IP address for this rule.

Destination L4 Port

The destination IP Mask for this rule.

Service Type Display one of the three Match conditions, IP DSCP, IP Precedence or IP ToS,

for the extended IP ACL rule.

Click the <<Back button to return to the previous window.

IPv6 Access Control Lists

This window is used to display the IPv6 access control lists.

To view this window, click Monitoring > QoS > Access Control Lists > IPv6 Access Control Lists as shown

below:

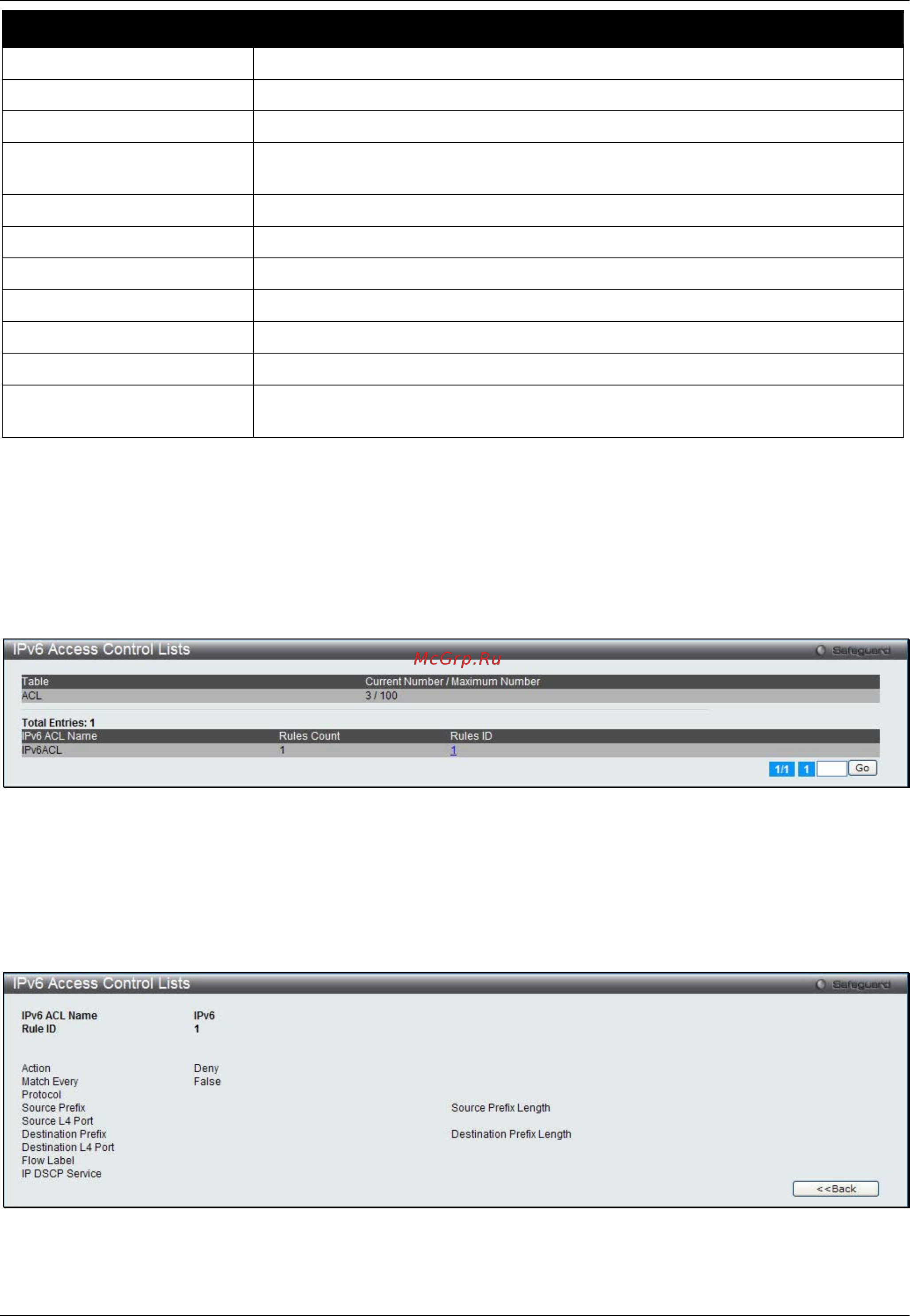

Figure 2-59 IPv6 Access Control Lists window

Click the Rules ID hyperlink to see the detail information about the rule.

Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.

After clicking the Rules ID hyperlink, the following page will appear:

Figure 2-60 IPv6 Access Control Lists - Rule ID window

The fields that can be displayed are described below:
