Click the <<Back button to discard the changes made and return to the previous window.

After clicking the Show Details button in the CPU Access Rule List, the following page will appear:

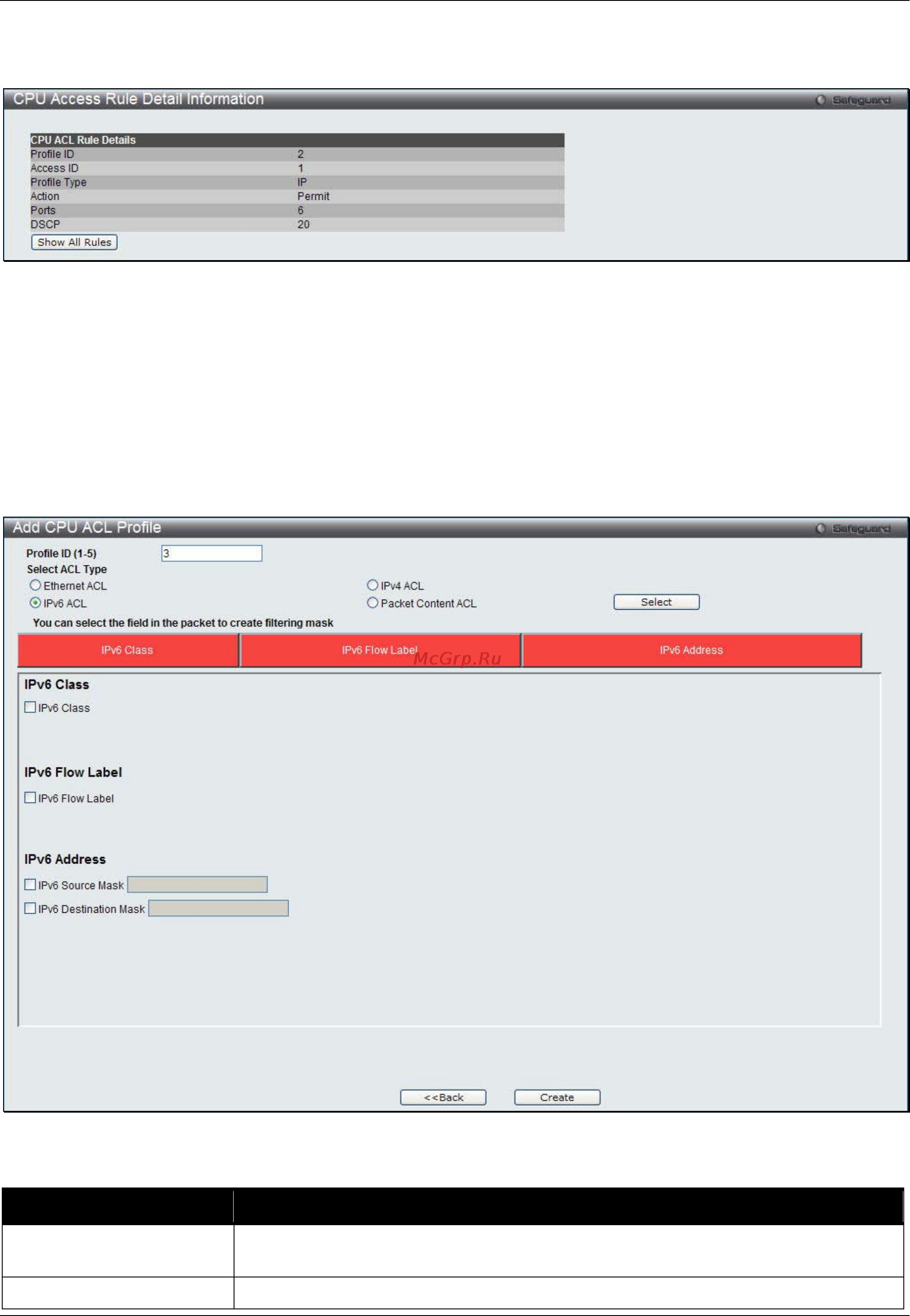

Figure 10-33 CPU Access Rule Detail Information (IPv4 ACL)

Click the Show All Rules button to navigate back to the CPU Access Rule List.

Adding a CPU IPv6 ACL Profile

The window shown below is the Add CPU ACL Profile window for IPv6. To use specific filtering masks in this ACL

profile, click the packet filtering mask field to highlight it red. This will add more filed to the mask.

After clicking the Add CPU ACL Profile button, the following page will appear:

Figure 10-34 Add CPU ACL Profile (IPv6 ACL)

The fields that can be configured are described below:

Parameter Description

Profile ID (1-5) Enter a unique identifier number for this profile set. This value can be set from 1

to5.

Select ACL Type

Select profile based on Ethernet (MAC Address), IPv4 address, IPv6 address, or
