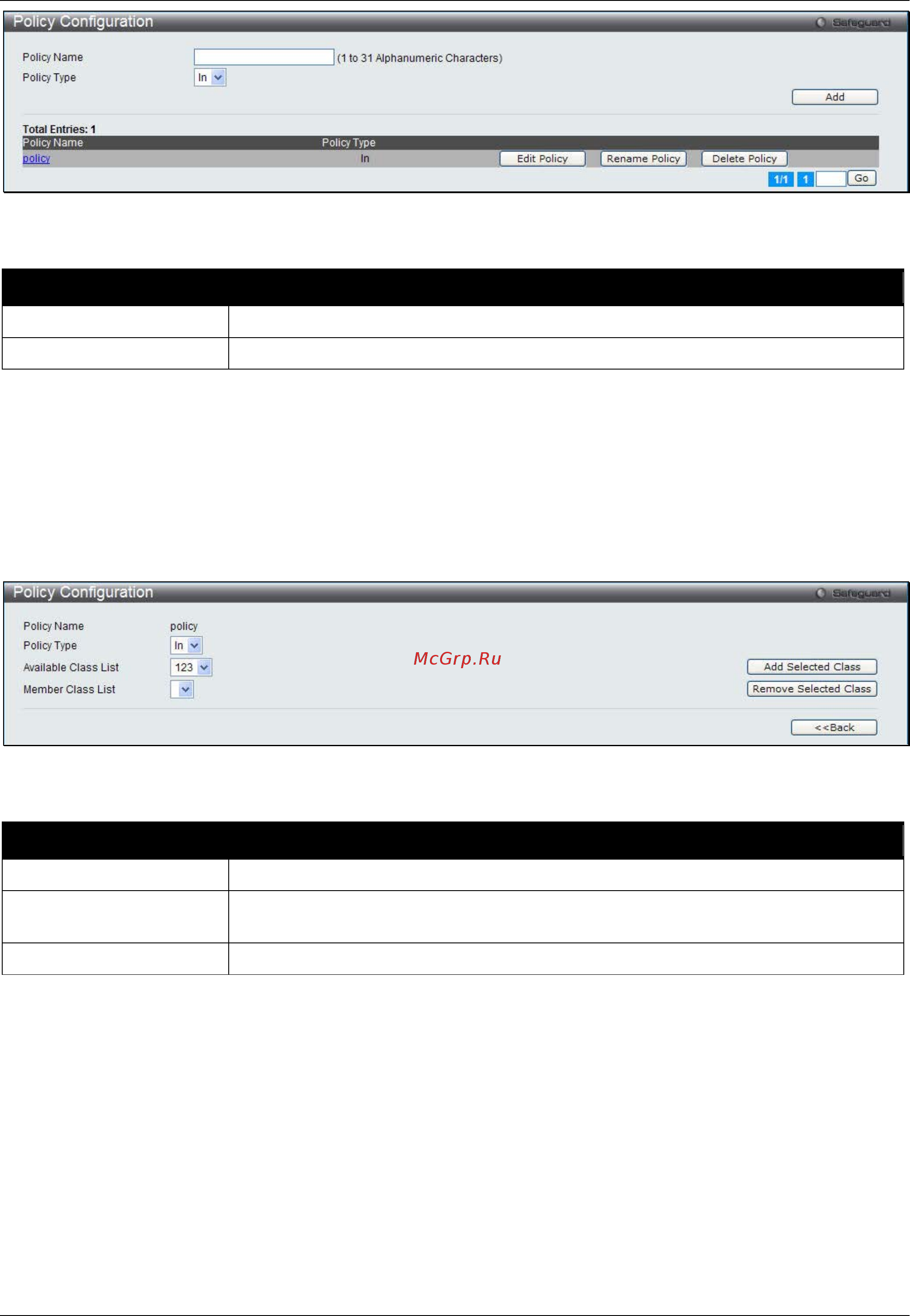

Figure 4-23 Policy Configuration window

The fields that can be configured are described below:

Parameter Description

Policy Name

Enter a policy name.

Policy Type

Select the policy type.

Click the Add button to add a new entry based on the information entered.

Click the Edit Policy to configure the entry.

Click the Rename Policy button to change the name of the specific policy.

Click the Delete Policy to remove the entry from the list.

Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.

After clicking the Edit Policy button, the following page appears:

Figure 4-24 Policy Configuration – Edit Policy window

The fields that can be configured are described below:

Parameter Description

Policy Type

Select the available policy type.

Available Class List

Select existing DiffServ class names. The list is automatically updated as a new

class is added or removed in the Class Configuration window.

Member Class List

Select the DiffServ classes that have been added to the policy.

Click the Add Selected Class button to add the existing DiffServ class to the Member Class List drop-down menu.

Click the Remove Selected Class button to remove the class from the Member Class List drop-down menu.

Click the <<Back button to return to the previous window.

Policy Class Definition

This window is used to associate a class to a policy and to define attributes for that policy-class instance.

To view this window, click QoS > Differentiated Services > Policy Class Definition as shown below:
