DWS-3160 Series Gigabit Ethernet Unified Switch Web UI Reference Guide

455

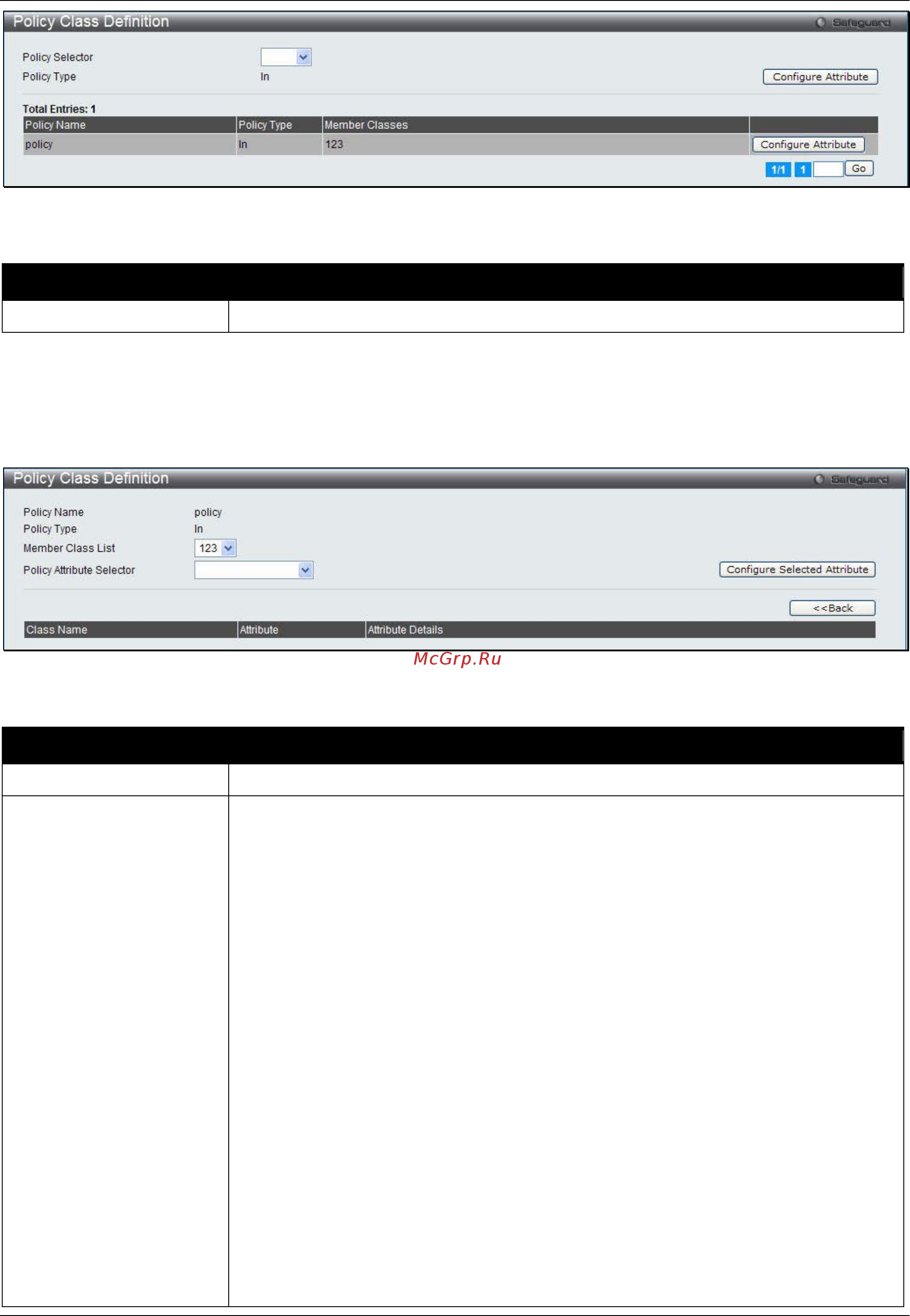

Figure 4-25 Policy Class Definition window

The fields that can be configured are described below:

Parameter Description

Policy Selector

Select a policy to be configured.

Click the Configuration Attribute to configure the specific policy.

Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.

After clicking the Configure Attribute button, the following page appears:

Figure 4-26 Policy Class Definition window

The fields that can be configured are described below:

Parameter Description

Member Class List

Select the member class to associate with this policy.

Policy Attribute

Selector

Use the drop-down menu to select attributes supported for this type of policy. Click

the Configure Selected Attribute button to see the attribute configuration for that

policy.

Drop – Select this to drop packets for this policy-class.

Mark CoS – Select this to enter the specified Class of Service queue number to

mark all packets for the associated traffic stream with the specified class of service

value in the priority field of the 802.1p header in the next window.

Mark IP DSCP – Select this to choose the DSCP Keyword in the next window. This

will mark all packets for the associated traffic stream with the selected IP DSCP

value.

Mark IP Precedence – Select this to enter IP Precedence Value in the next

window. This will mark all packets for the associated traffic stream with the entered

IP Precedence value.

Police Simple – Select this to establish the traffic policing style for the specified

class in the next window.

• Committed Rate (bps) – Enter the committed rate for monitoring the

arrival rate of incoming packets for this class.

• Committed Burst Size (KB) – Enter the committed burst size to determine

the amount of conforming traffic allowed.

• Conform Action Selector – Select an action when a packet is considered

conforming.

Drop – The packets are immediately dropped.
