DWS-3160 Series Gigabit Ethernet Unified Switch Web UI Reference Guide

• Property – To pop up a window to display the device information.

The Single IP Management window contains a menu bar for device configurations, as seen below.

Menu Bar

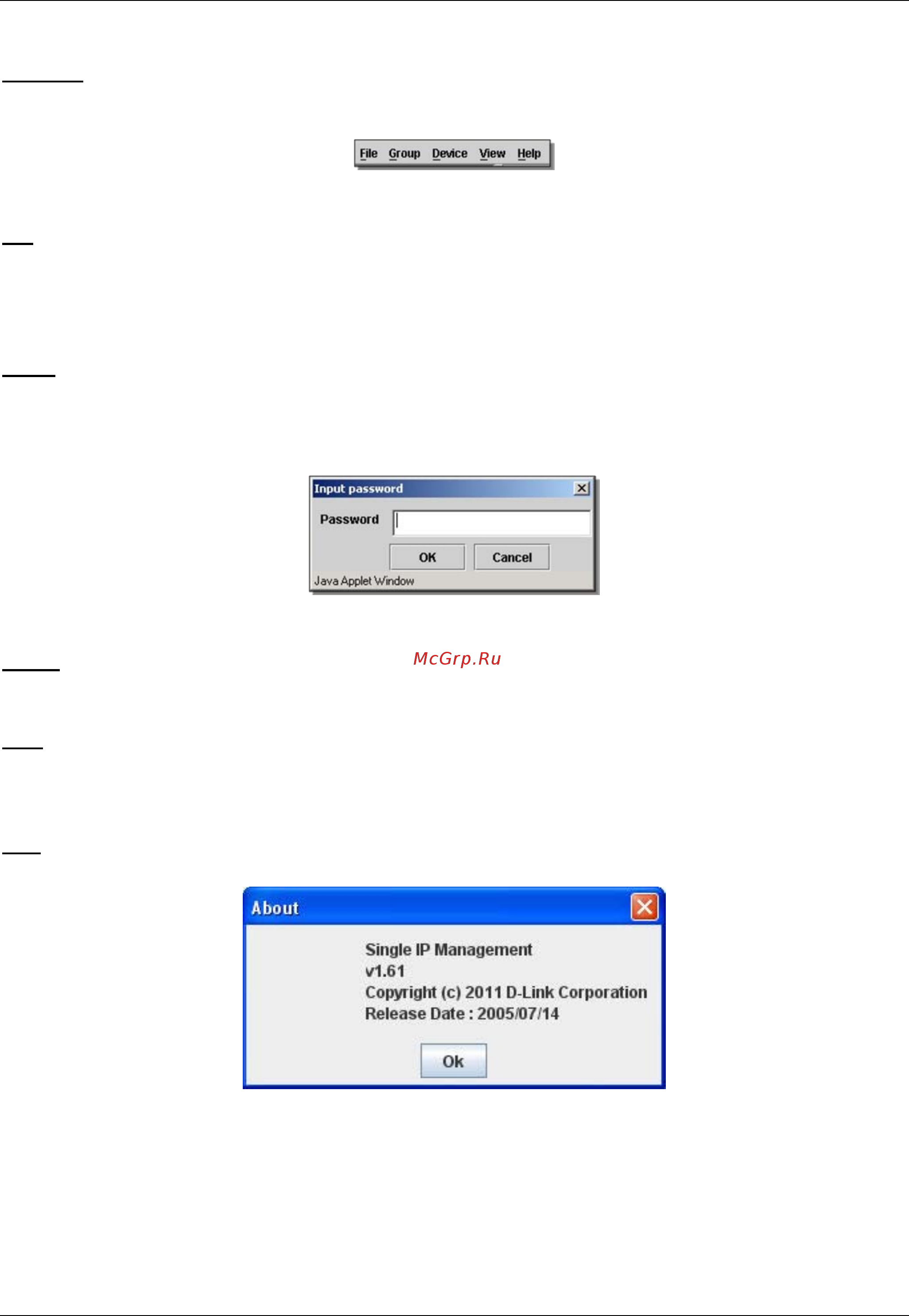

Figure 6-26 Menu Bar of the Topology View

• Print Setup – Will view the image to be printed.

File

• Print Topology – Will print the topology map.

• Preference – Will set display properties, such as polling interval, and the views to open at SIM startup.

• Add to group – Add a candidate to a group. Clicking this option will reveal the following dialog box for

the user to enter a password for authentication from the Candidate Switch before being added to the

SIM group. Click OK to enter the password or Cancel to exit the dialog box.

Group

Figure 6-27 Input password window

• Remove from Group – Remove an MS from the group.

• Configure – Will open the Web manager for the specific device.

Device

• Refresh – Update the views with the latest status.

View

• Topology – Display the Topology view.

• About – Will display the SIM information, including the current SIM version.

Help

Figure 6-28 About window

Firmware Upgrade

This screen is used to upgrade firmware from the Commander Switch to the Member Switch. Member Switches will

be listed in the table and will be specified by Port (port on the CS where the MS resides), MAC Address, Model

Name and Version. To specify a certain Switch for firmware download, click its corresponding check box under the

Port heading. To update the firmware, enter the Server IP Address where the firmware resides and enter the

Path/Filename of the firmware. Click Download to initiate the file transfer.
