DWS-3160 Series Gigabit Ethernet Unified Switch Web UI Reference Guide

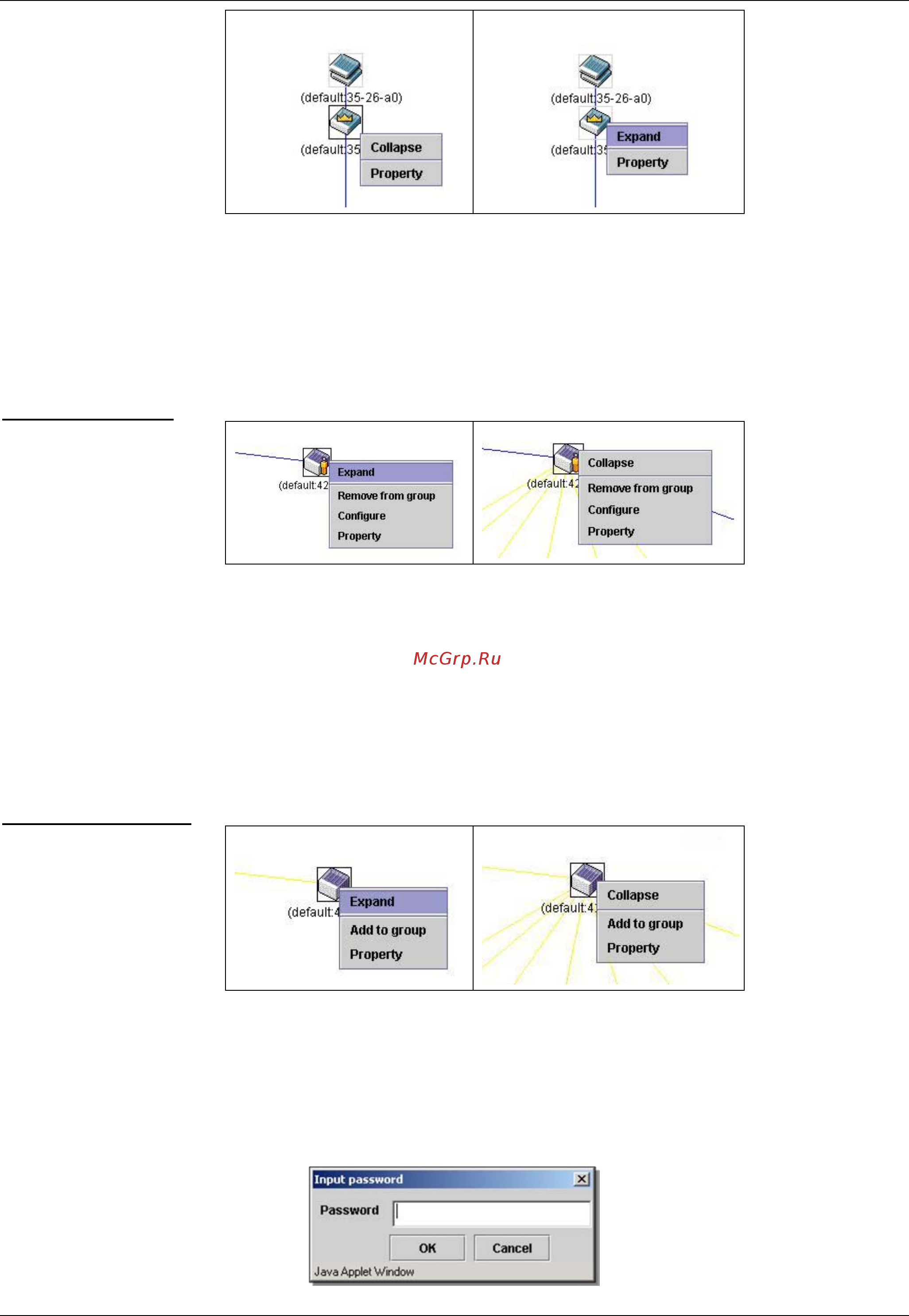

Figure 6-22 Right-clicking a Commander Icon

The following options may appear for the user to configure:

• Collapse – To collapse the group that will be represented by a single icon.

• Expand – To expand the SIM group, in detail.

• Property – To pop up a window to display the group information.

Member Switch Icon

Figure 6-23 Right-clicking a Member icon

The following options may appear for the user to configure:

• Collapse – To collapse the group that will be represented by a single icon.

• Expand – To expand the SIM group, in detail.

• Remove from group – Remove a member from a group.

• Configure – Launch the web management to configure the Switch.

• Property – To pop up a window to display the device information.

Candidate Switch Icon

Figure 6-24 Right-clicking a Candidate icon

The following options may appear for the user to configure:

• Collapse – To collapse the group that will be represented by a single icon.

• Expand – To expand the SIM group, in detail.

• Add to group – Add a candidate to a group. Clicking this option will reveal the following dialog box for

the user to enter a password for authentication from the Candidate Switch before being added to the

SIM group. Click OK to enter the password or Cancel to exit the dialog box.

Figure 6-25 Input password window
