DWS-3160 Series Gigabit Ethernet Unified Switch Web UI Reference Guide
387
Parameter Description
MAC ACL Name
MAC ACL identifier.
Rule ID
The ordered rule number identifier defined within the MAC ACL.
Action
The action associated with each rule. Available values are Permit and Deny.
Match Every
Display whether this access list applies to every packet. Available values are
True and False.
CoS
The 802.1p user priority for this rule.
Destination MAC
The destination MAC address for this rule.
Destination MAC Mask
The destination MAC mask specifies which bits in the destination MAC address
to compare against an Ethernet frame.
Ethertype Key
The Ethertype keyword or custom value for this rule.
Source MAC
The source MAC address for this rule.
Source MAC Mask
The source MAC mask specifies which bits in the source MAC address to
compare against an Ethernet frame.
VLAN
The VLAN identifier value for this rule.
Click the <<Back button to return to the previous window.
Differentiated Services
Class Summary
This window is use to display the differentiated service class.
To view this window, click Monitoring > QoS > Differentiated Services > Class Summary as shown below:

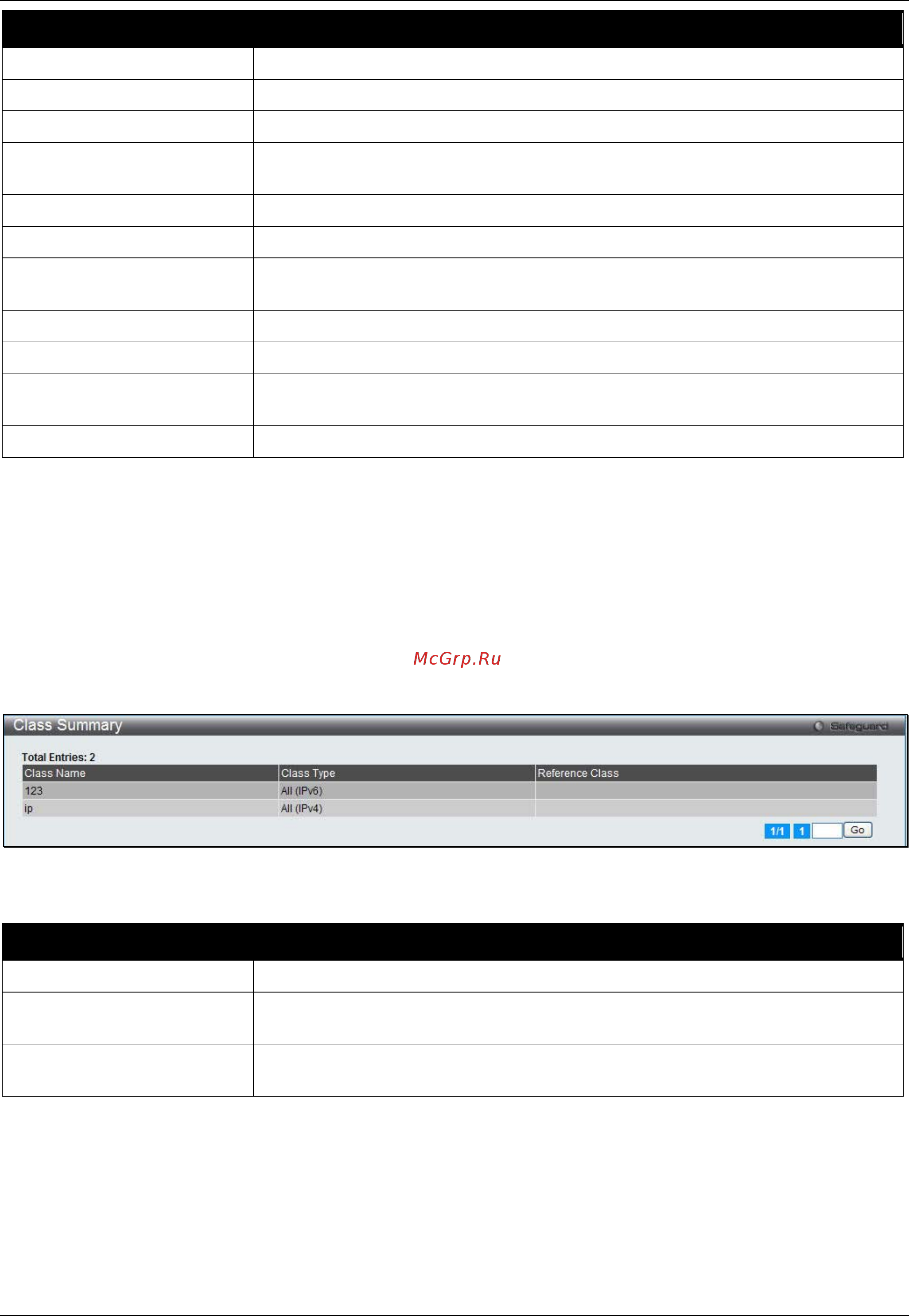

Figure 2-63 Class Summary window
The fields that can be displayed are described below:
Parameter Description
Class Name
The name of this class.
Class Type A class type of All means every match criterion defined for the class is
evaluated simultaneously and must all be true to indicate a class match.
Reference Class
The name of an existing DiffServ class whose match conditions are being
referenced by the specified class definition.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
Policy Summary
This window is use to display the differentiated service policy.
To view this window, click Monitoring > QoS > Differentiated Services > Policy Summary as shown below:
