DWS-3160 Series Gigabit Ethernet Unified Switch Web UI Reference Guide
213
IMPB Entry Settings
This window is used to create static IP-MAC-binding port entries and view all IMPB entries on the Switch.
To view this window, click Security > IP-MAC-Port Binding (IMPB) > IMPB Entry Settings as shown below:

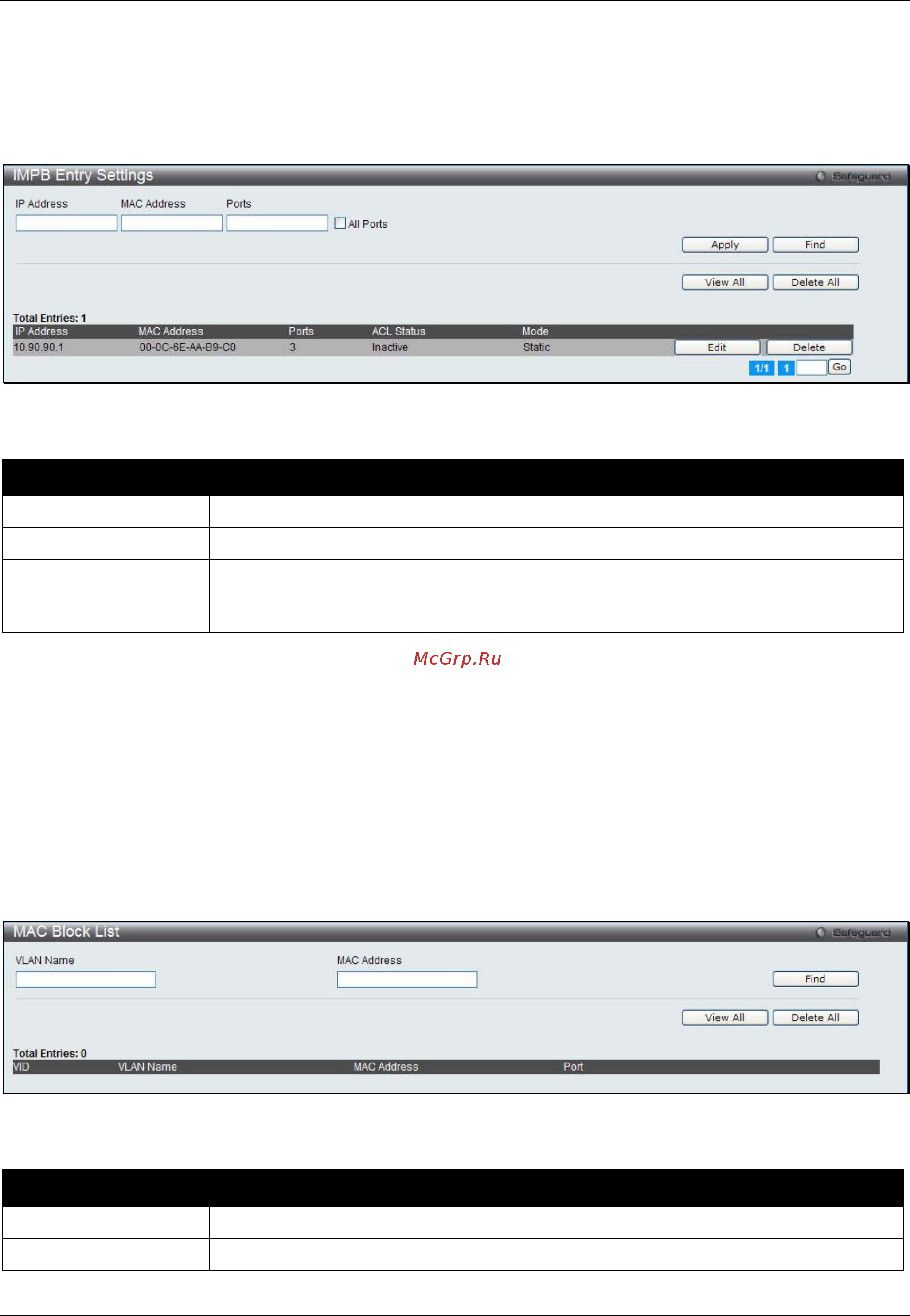

Figure 11-28 IMPB Entry Settings window
The fields that can be configured are described below:
Parameter Description
IP Address
Enter the IP address to bind to the MAC address set below.
MAC Address
Enter the MAC address to bind to the IP Address set above.
Ports
Specify the switch ports for which to configure this IP-MAC binding entry (IP Address
+ MAC Address). Tick the All Ports check box to configure this entry for all ports on
the Switch.
Click the Apply button to accept the changes made.
Click the Find button to locate a specific entry based on the information entered.
Click the Edit button to configure the specified entry.
Click the Delete button to remove the specified entry.
Click the View All button to display all the existing entries.
Click the Delete All button to remove all the entries listed.
MAC Block List
This window is used to view unauthorized devices that have been blocked by IP-MAC binding restrictions.
To view this window, click Security > IP-MAC-Port Binding (IMPB) > MAC Block List as shown below:
Figure 11-29 MAC Block List
The fields that can be configured are described below:
Parameter Description
VLAN Name
Enter a VLAN Name.
MAC Address
Enter a MAC address.
Click the Find button to find an unauthorized device that has been blocked by the IP-MAC binding restrictions
