Weekdays

Use the check boxes to select the corresponding days of the week that this time range is to

be enabled. Tick the Select All Days check box to configure this time range for every day of

the week.

Click the Apply button to accept the changes made. Current configured entries will be displayed in the Time

Range Information table in the bottom half of the window shown above.

Port Group Settings

This window is used to create port groups, and add or delete ports from the port groups.

To view the following window, click System Configuration > Port Group Settings, as show below:

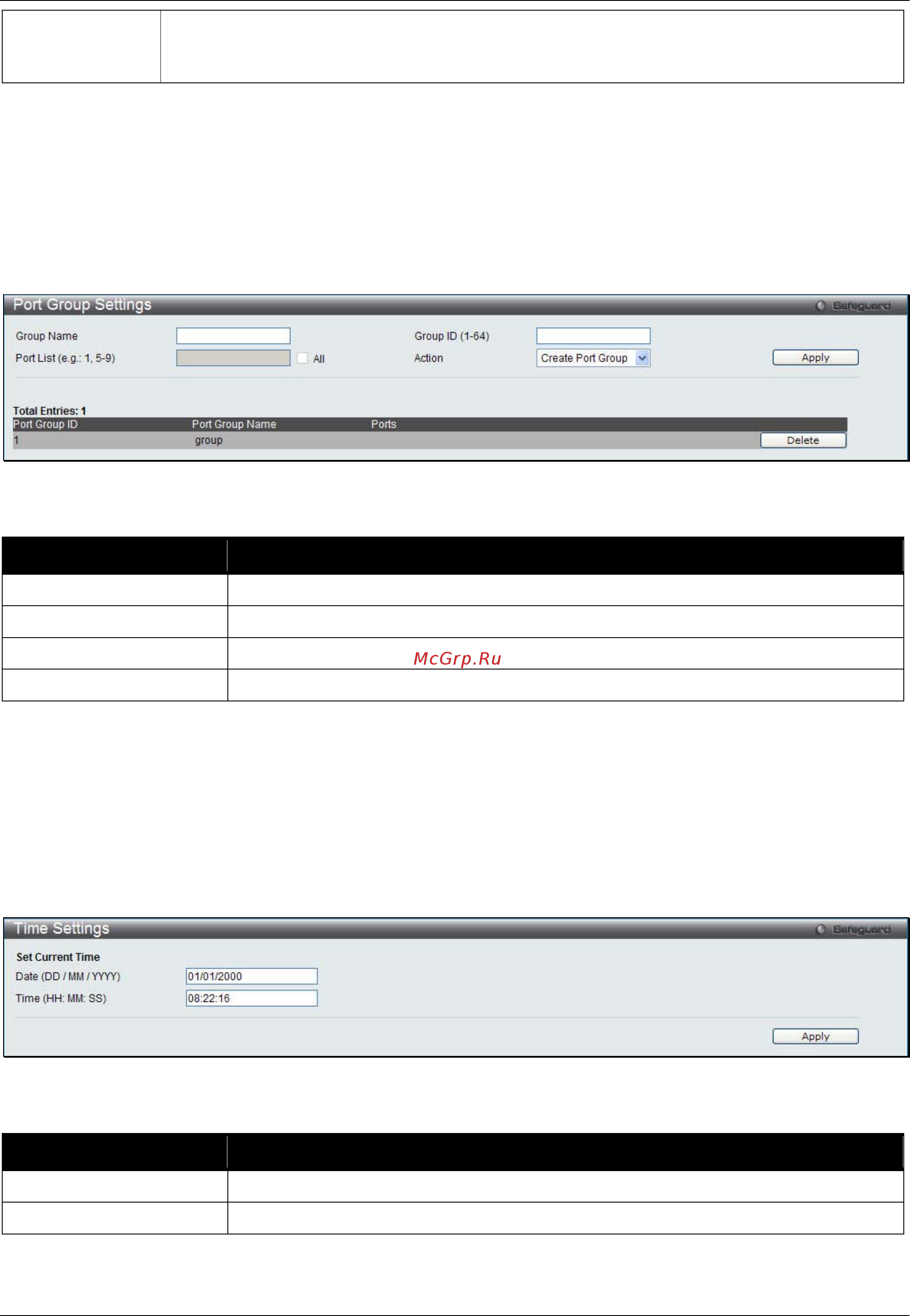

Figure 5-17 Port Group Settings window

The fields that can be configured are described below:

Parameter Description

Group Name

Enter the name of a port group.

Group ID (1-64)

Enter the ID of a port group

Port List

Enter a port or list of ports. Tick the All check box to apply to all ports.

Action

Use the drop-down menu to select Create Port Group, Add Ports or Delete Ports.

Click the Apply button to accept the changes made.

Click the Delete button to remove the specific entry.

Time Settings

Users can configure the time settings for the Switch.

To view the following window, click System Configuration > Time Settings, as show below:

Figure 5-18 Time Settings window

The fields that can be configured are described below:

Parameter Description

Date (DD/MM/YYYY)

Enter the current day, month, and year to update the system clock.

Time (HH:MM:SS)

Enter the current time in hours, minutes, and seconds.

Click the Apply button to accept the changes made.
