DWS-3160 Series Gigabit Ethernet Unified Switch Web UI Reference Guide
463
Download Configuration From TFTP
This page allows the user to download the configuration file from a TFTP Server to the Switch and updates the
switch.

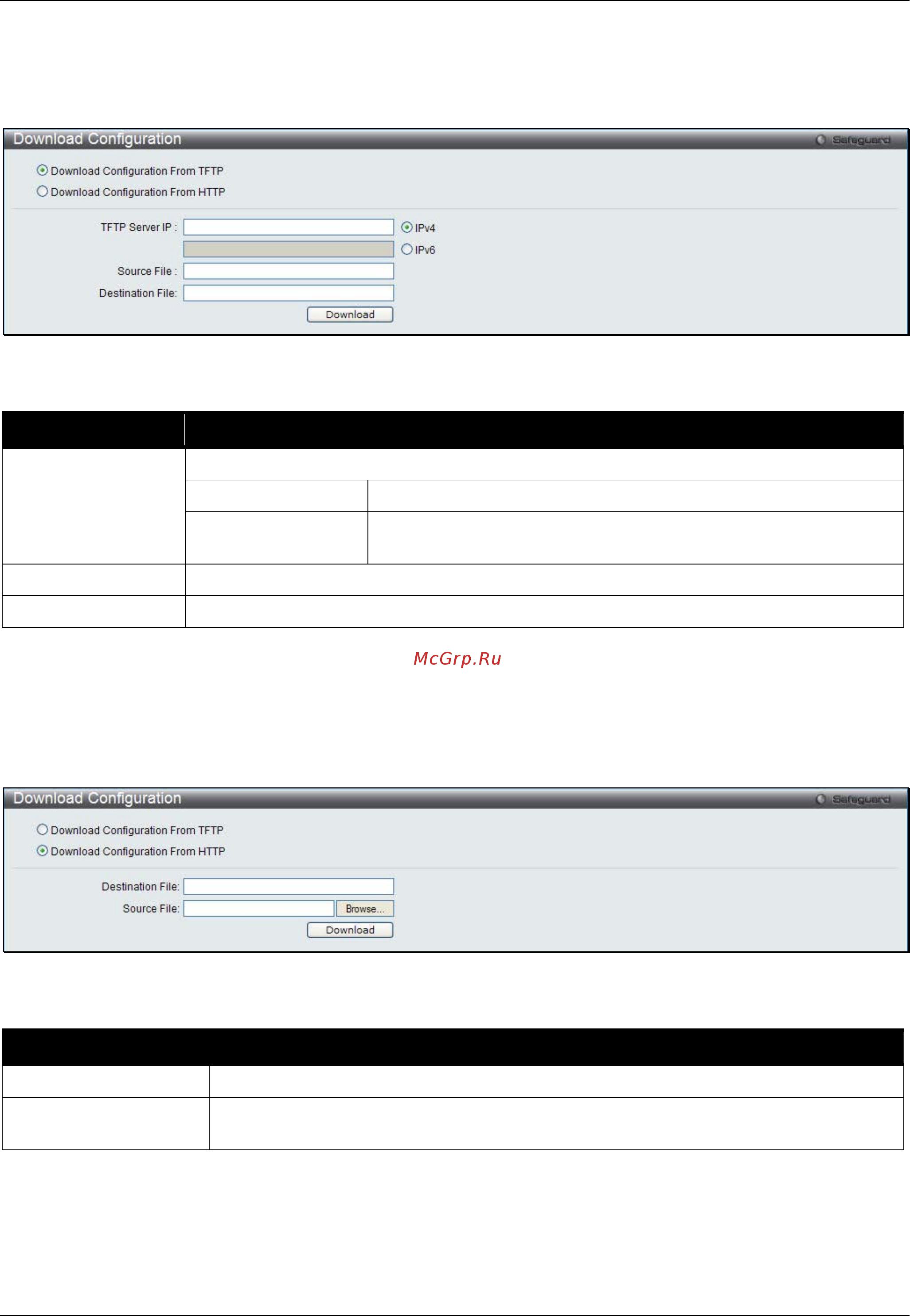

Figure 2-5 Download Configuration – TFTP window
The fields that can be configured are described below:
Parameter Description
TFTP Server IP
Enter the TFTP server IP address used.
IPv4
Click the radio button to enter the TFTP server IP address used.
IPv6
Click the radio button to enter the TFTP server IPv6 address
used.
Destination File
Enter the location and name of the Destination File.
Source File
Enter the location and name of the Source File.
Click Download to initiate the download.
Download Configuration From HTTP
This page allows the user to download the configuration file from a computer to the Switch and updates the switch.
Figure 2-6 Download Configuration – HTTP window
The fields that can be configured are described below:
Parameter Description
Destination File
Enter the location and name of the Destination File.
Source File Enter the location and name of the Source File, or click the Browse button to
navigate to the configuration file for the download.
Click Download to initiate the download.
Upload Configuration
The following window is used to upload the configuration file from the Switch.
