DWS-3160 Series Gigabit Ethernet Unified Switch Web UI Reference Guide
460
Section 4 Save and Tools
Save Configuration / Log
Stacking Information
Download firmware
Upload Firmware
Download Configuration
Upload Configuration
Upload Log File
Reset
Reboot System
Chapter 1 Save
Save Configuration / Log
To view this window, click Save > Save Configuration / Log, as shown below.
Save Configuration allows the user to backup the configuration of the switch to a folder on the computer. Select
Configuration from the Type drop-down menu and enter the File Path in the space provided and click Apply.

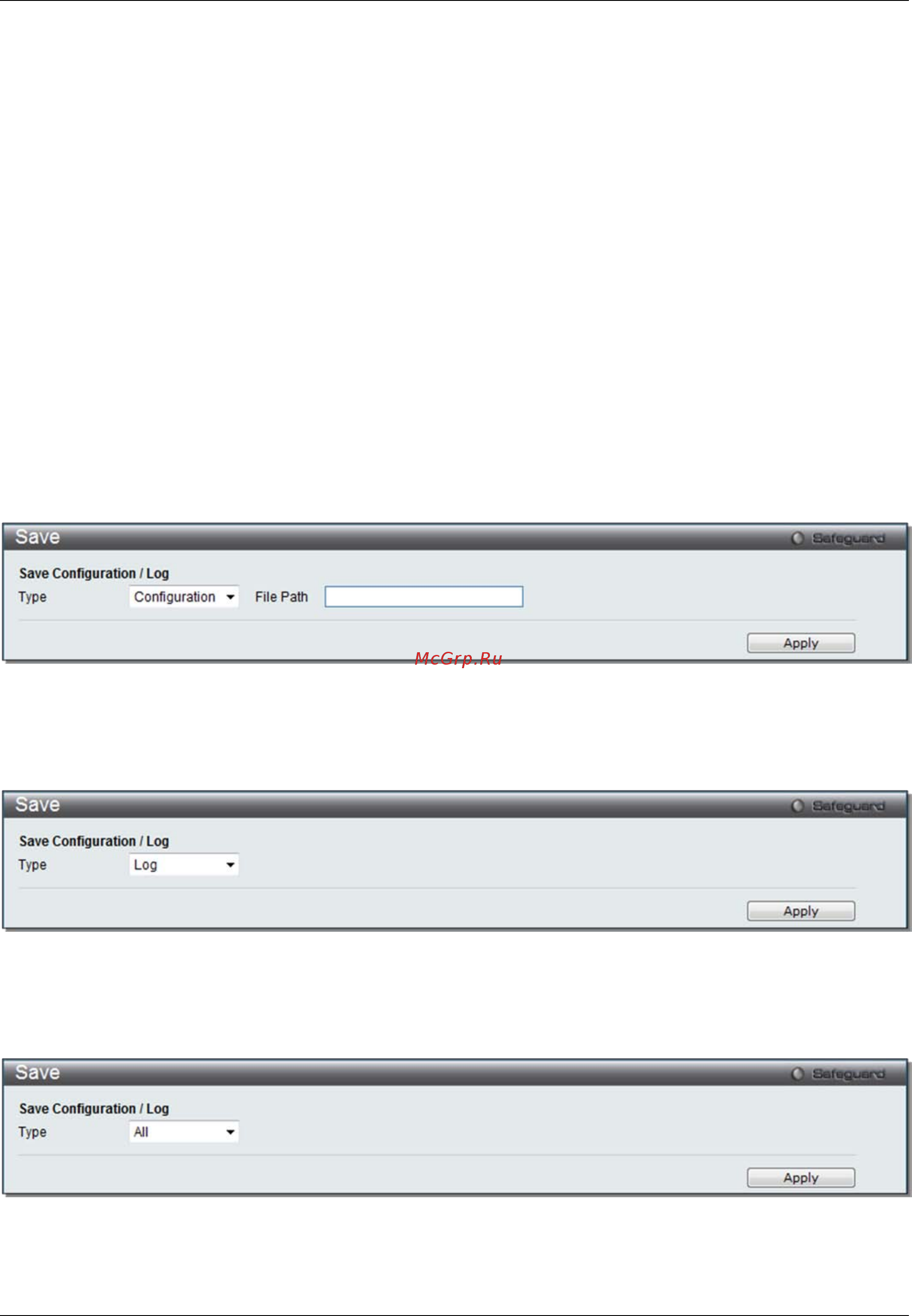

Figure 1-1 Save – Configuration window
Save Log allows the user to backup the log file of the switch. Select Log from the Type drop-down menu and click
Apply.
Figure 1-2 Save – Log window
Save All allows the user to permanently save changes made to the configuration. This option will allow the
changes to be kept after the switch has rebooted. Select All from the Type drop-down menu and click Apply.
Figure 1-3 Save – All window
