associate with the AP using the SSID in the previous field.

Client QoS Bandwidth

Limit Down

Enter the maximum allowed transmission rate from the AP to the wireless client in

bits per second.

Client QoS Bandwidth

Limit Up

Enter the maximum allowed client transmission rate to the AP in bits per second.

Client QoS Access

Control Down

Use the drop-down menu to select the name of the access list applied to traffic in

the outbound (down) direction.

Client QoS Access

Control Up

Use the drop-down menu to select the name of the access list applied to traffic in

the inbound (up) direction.

Client QoS Diffserv

Policy Down

Use the drop-down menu to select the name of the DiffServ policy applied to traffic

from the AP in the outbound (down) direction.

Client QoS Diffserv

Policy Up

Use the drop-down menu to select the name of the DiffServ policy applied to traffic

from the AP in the inbound (up) direction.

Click the <<Back button to discard the changes made and return to the previous window.

Click the Apply button to accept the changes made.

Click the Clear button to discard the changes made and return to the default settings.

AP Profiles

This window is used to create, configure, delete AP profiles. AP profiles are like templates, and once you create an

AP profile, you can apply that profile to any AP that the Unified Switch manages.

To view this window, click Administration > Advanced Configuration > AP Profiles as shown below:

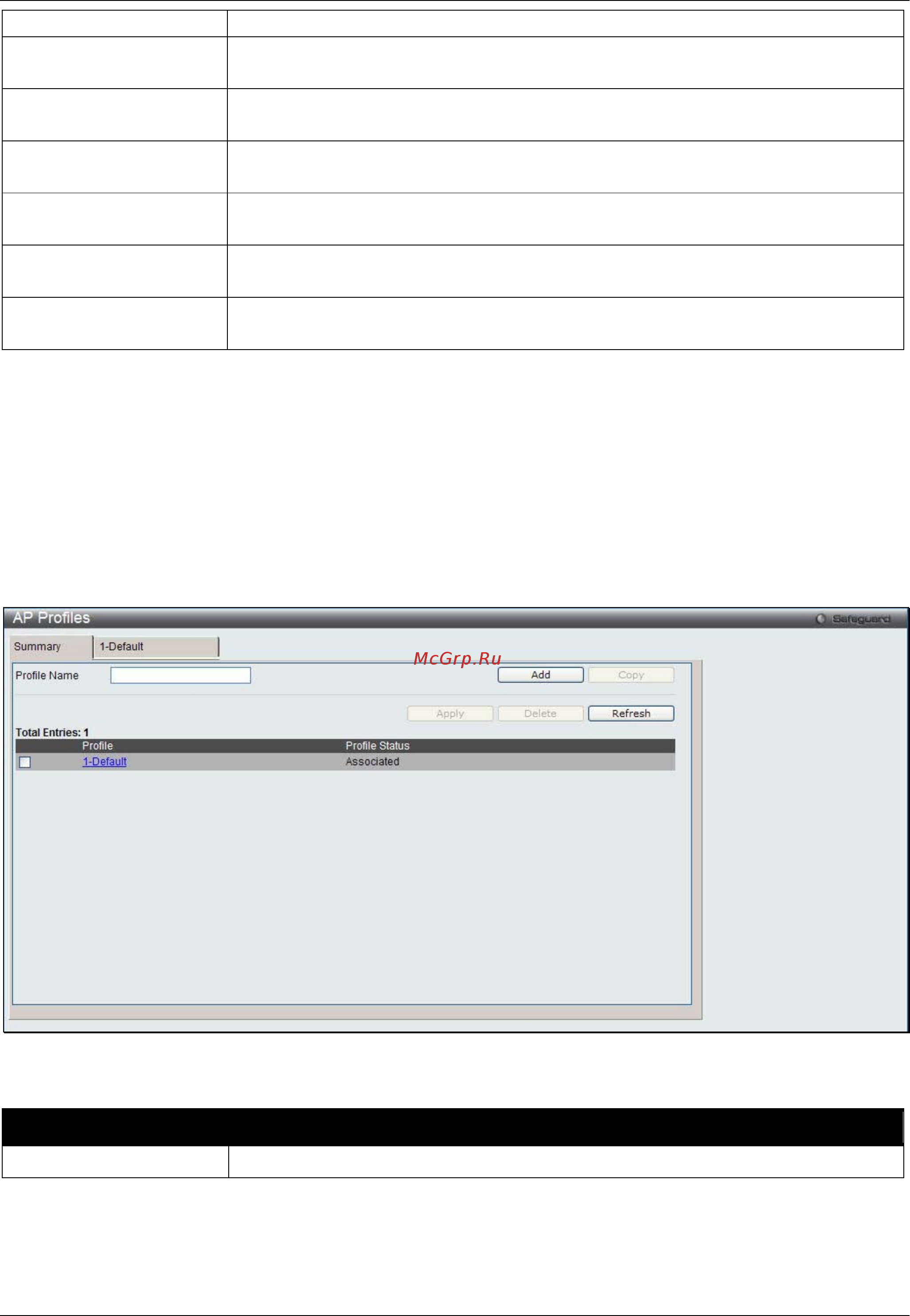

Figure 3-27 AP Profile Summary window

The fields that can be configured are described below:

Parameter Description

Profile Name

Enter a profile name.

Click the Add button to add a new entry based on the information entered.

Tick the check box of a specific profile and click the Copy button to copy the settings of the existing profile to a new

profile.

Tick the check box of a specific profile and click the Apply button to apply the profile changes to all access points

that use the profile.
