D-Link DWS-3160-24TC [19/505] Serial port settings

DWS-3160 Series Gigabit Ethernet Unified Switch Web UI Reference Guide

Click Apply to implement changes made. The port status of all PoE configured ports is displayed in the table in the

bottom half of the screen shown above.

Serial Port Settings

This window allows the user to adjust the Baud Rate and the Auto Logout values.

To view the following window, click System Configuration > Serial Port Settings, as show below:

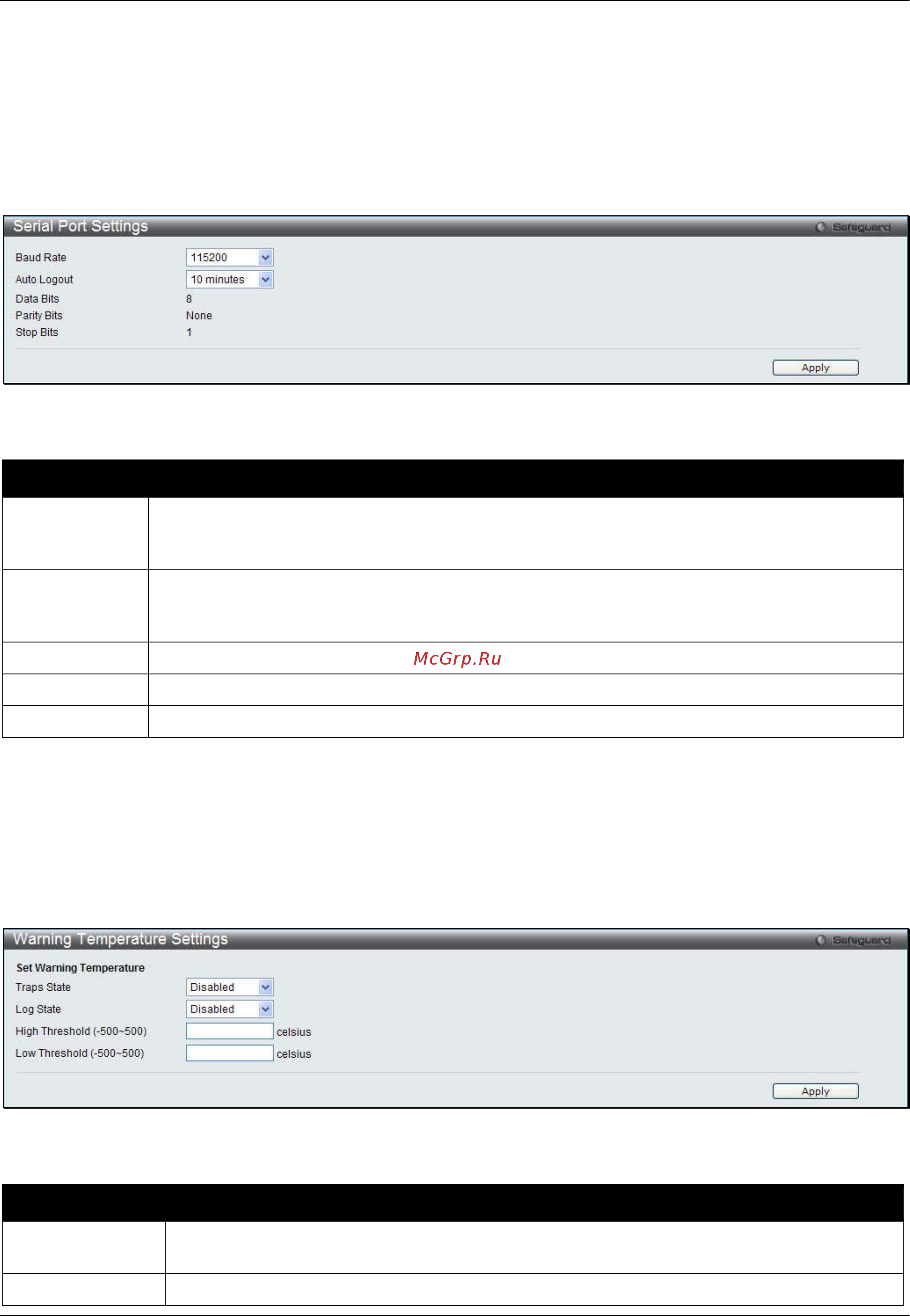

Figure 5-9 Serial Port Settings window

The fields that can be configured or displayed are described below:

Parameter Description

Baud Rate

Specify the baud rate for the serial port on the Switch. There are four possible baud rates to

choose from, 9600, 19200, 38400 and 115200. For a connection to the Switch using the

console port, the baud rate must be set to 115200, which is the default setting.

Auto Logout

Select the logout time used for the console interface. This automatically logs the user out

after an idle period of time, as defined. Choose from the following options: 2, 5, 10, 15

minutes or Never. The default setting is 10 minutes.

Data Bits

Display the data bits used for the serial port connection.

Parity Bits

Display the parity bits used for the serial port connection.

Stop Bits

Display the stop bits used for the serial port connection.

Click the Apply button to implement changes made.

Warning Temperature Settings

This window allows the user to configure the system warning temperature parameters.

To view the following window, click System Configuration > Warning Temperature Settings, as show below:

Figure 5-10 Warning Temperature Settings window

The fields that can be configured are described below:

Parameter Description

Traps State

Use the drop-down menu to enable or disable the traps state option of the warning

temperature setting.

Log State

Use the drop-down menu to enable or disable the log state option of the warning
